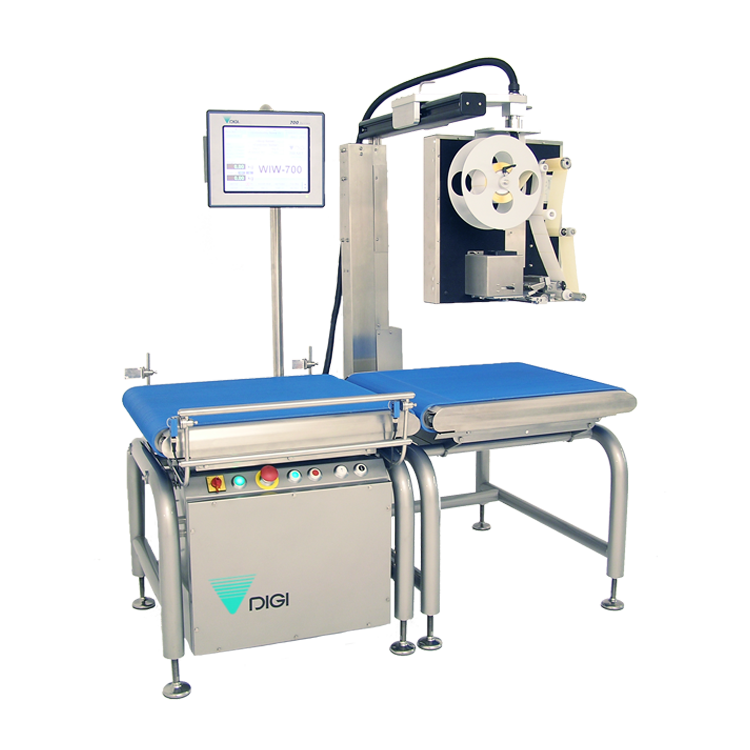

WIW-700
Automatic heavy duty weigh price labeler
High speed labeler
80mm or 108mm thermal head both being 11.8dots/mm (300dpi)
Applicators - touch, air box,
Label size - Width: 30 to 120 mm
Height: 28 to 150mm
Label roll - Roll diameter 300mm
Core diameter 76mm
Outside or inside wound
Print speed - 50 to 260mm/sec
Near edge printing
When the high speed labeler is used the outfeed conveyor is increased in length to 992mm
Applicators - touch, air box,
Label size - Width: 30 to 120 mm
Height: 28 to 150mm
Label roll - Roll diameter 300mm
Core diameter 76mm
Outside or inside wound
Print speed - 50 to 260mm/sec
Near edge printing
When the high speed labeler is used the outfeed conveyor is increased in length to 992mm

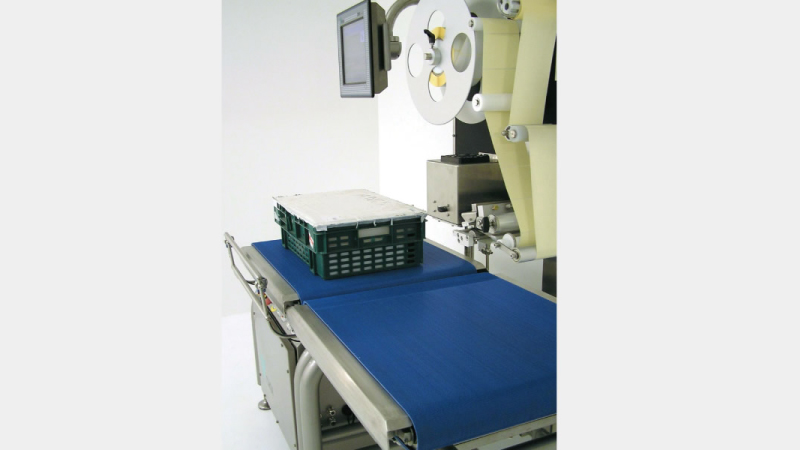

Optional infeed conveyor
An optional infeed conveyor can be added to the WIW-700. This infeed conveyor is the same length as the scale conveyor (765mm).
Thermal heads
As standard an 80mm wide thermal head is fitted to high speed and classic labelers. A 108mm wide thermal head is available for these two labelers. Both size thermal heads have the same definition of 300dpi (11.8 dots/mm).
Additional printers
The flexibility of the WIW-700 allows other industrial type printers that support TCP/IP communication to be connected.
