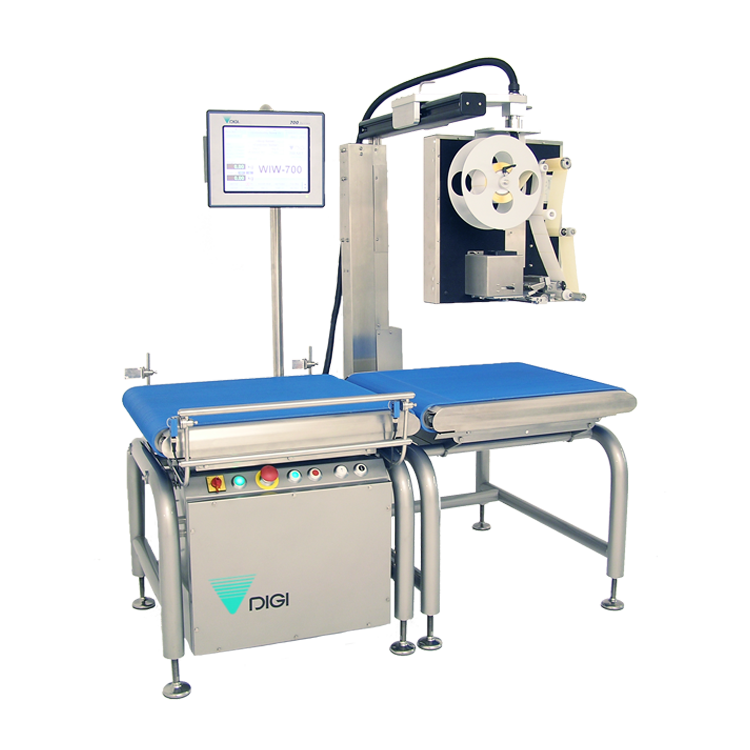

WIW-700
Automatic heavy duty weigh price labeler
Dimensions
Weighing
| Capacity | Max 30 kg | Max 60 kg |
|---|---|---|
| Single Interval | e= 10g | e= 20g |

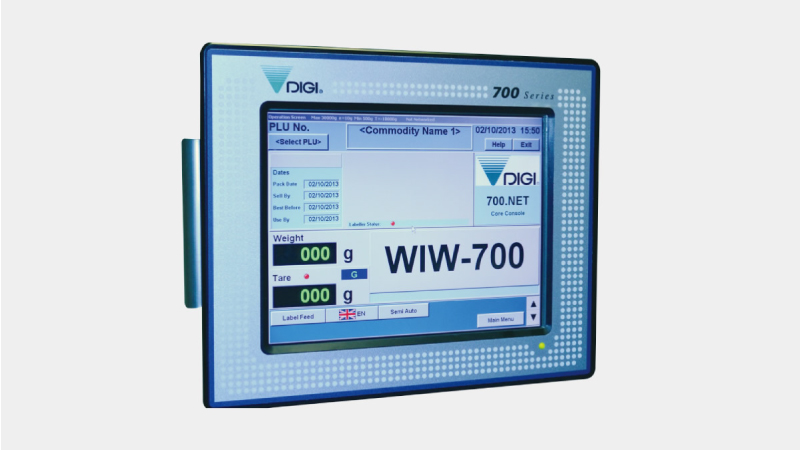

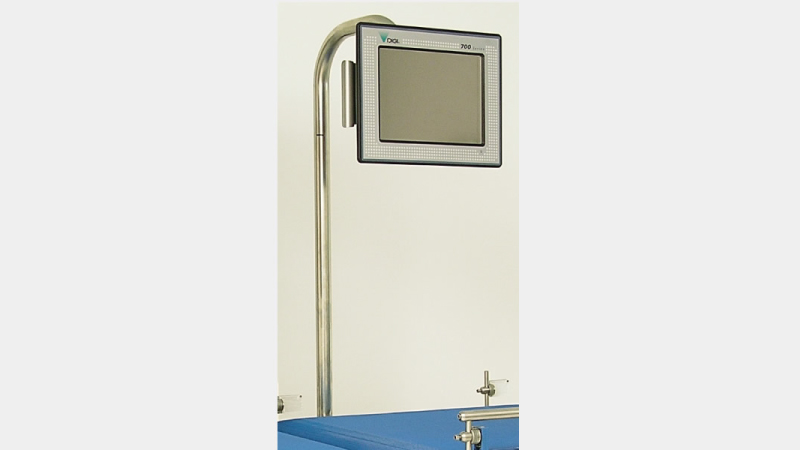

Display
| Screen | 12.1 Color LED display |
|---|---|
| Touch panel | 12.1 pen/finger resistive type |
Operation and general specification
| Conveyor speed | Pre-set fixed speed of 15 to 24m/min (18-30ppm) |
|---|---|
| Conveyor lengths | Infeed(option): 765mm, Scale: 765mm, Outfeed: 765mm (classic labeler) |
Pack size
| Pack size capable | Length: up to 600mm, Width: up to 600mm, Height: 240 to 400mm |
|---|
Labeler - Classic
| Label size | Width: 30 to 120mm, Height: 28 to 150mm |
|---|---|
| Label roll | max 300mm diameter, 76mm core, inside/outside wound |
| Label application system | 9 finger touch, Multijet air box |
| Print speed | 50 to 260mm/sec |
| Print head | 80mm at 300dpi, 108mm at 300dpi |
