HC-700E-WS02

HC-700E

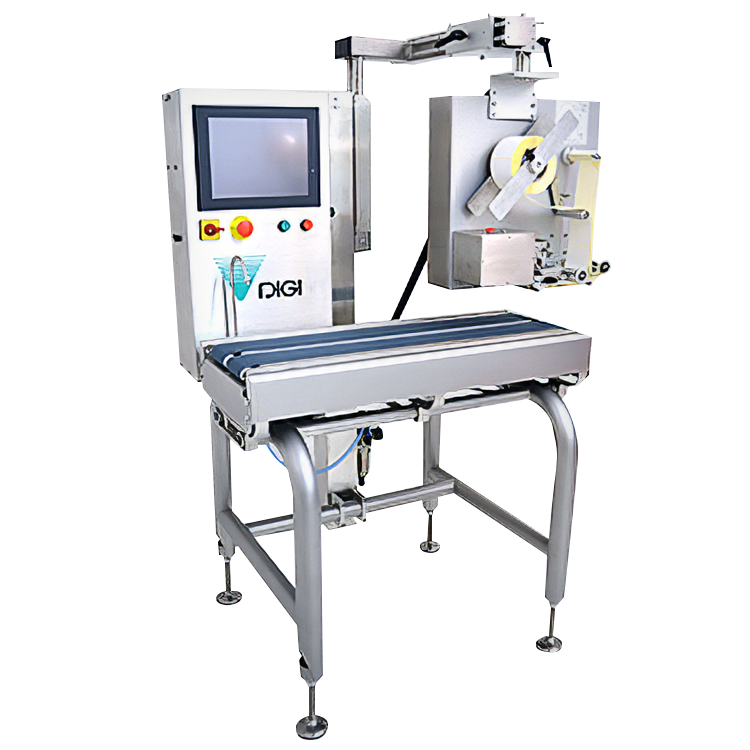

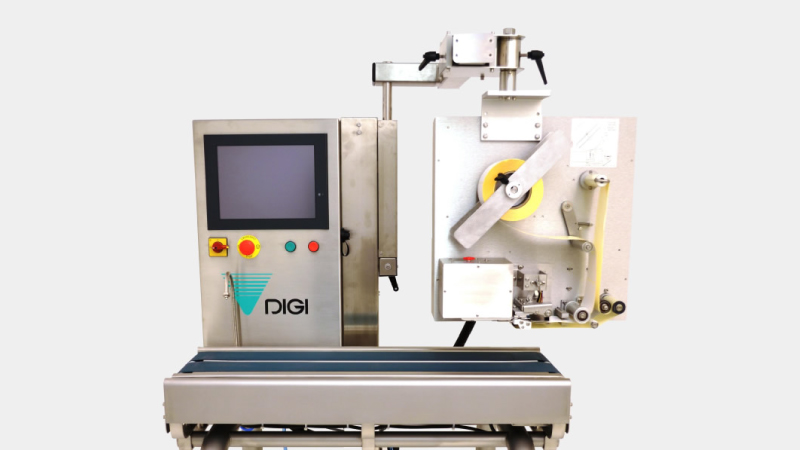

High speed print and apply system

Dimensions

HC-700E-WP05-1
HC-700E-WP05-2
HC-700E-WP05-3

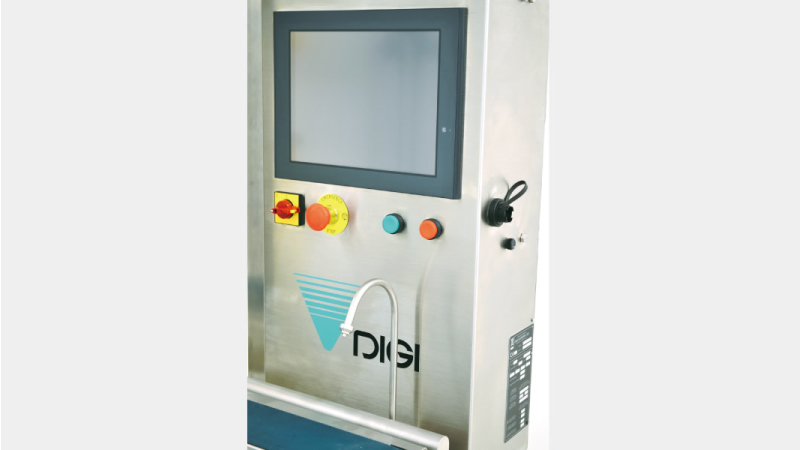

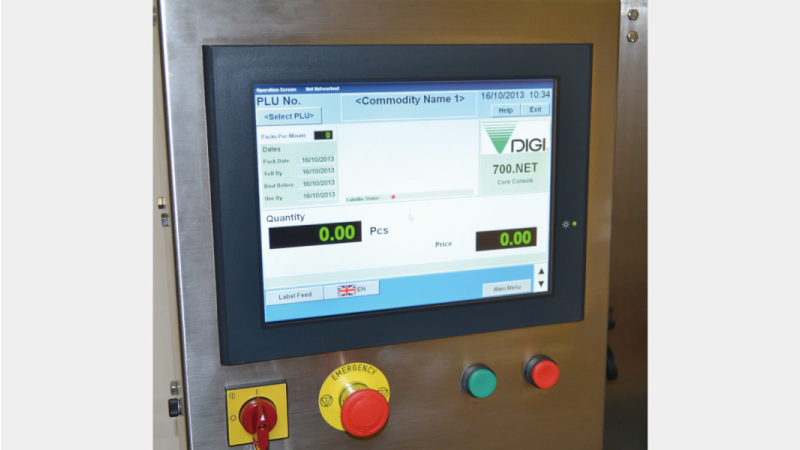

Display

Screen 12.1 colour high brightness TFT LCD
Touch panel Sealed resistive touch screen

Operation and general specification

Standard conveyor length 900mm
Conveyor speed Independent control via potentiometer  0 to 50m/min

Pack size

Pack size capable Width: 40 to 250mm, Height: 180mm maximum

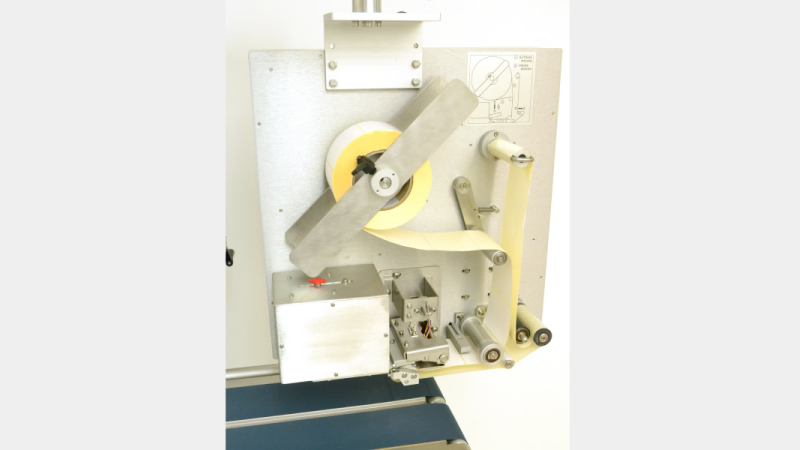

Labeller-LC

Label size Width: 36 to 90mm, Height: 40 to 105mm
Label roll max 300mm diameter, 36mm & 76mm core, inside/outside wound
Label application system air box
Print speed 50 to 200mm/sec
Print head 80mm at 300dpi
