Note: This product is no longer being sold. Please consult with your local contact regarding maintenance of this model or replacement models.

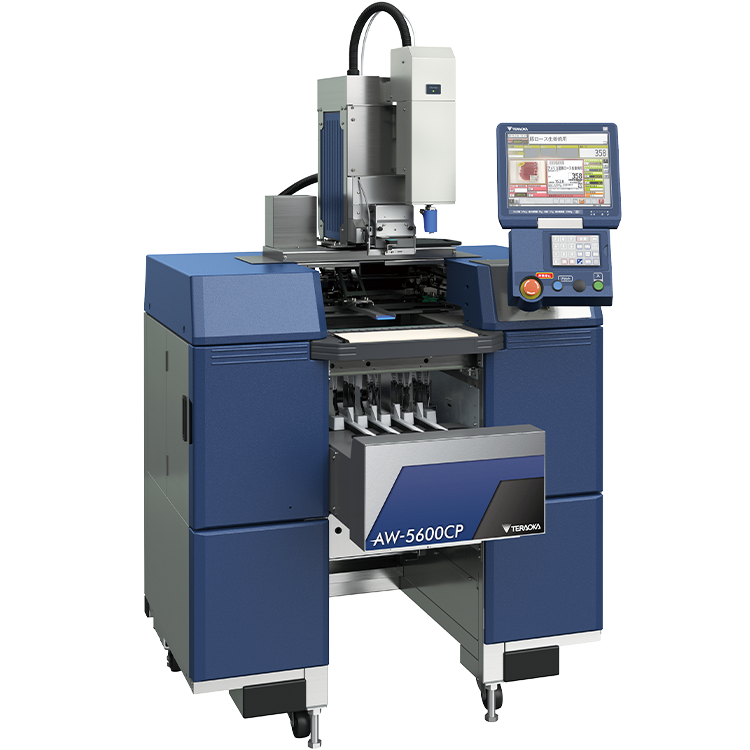

AW-5600CP
Compact integrated weigh-wrap-label system
Dimensions
Wrapping

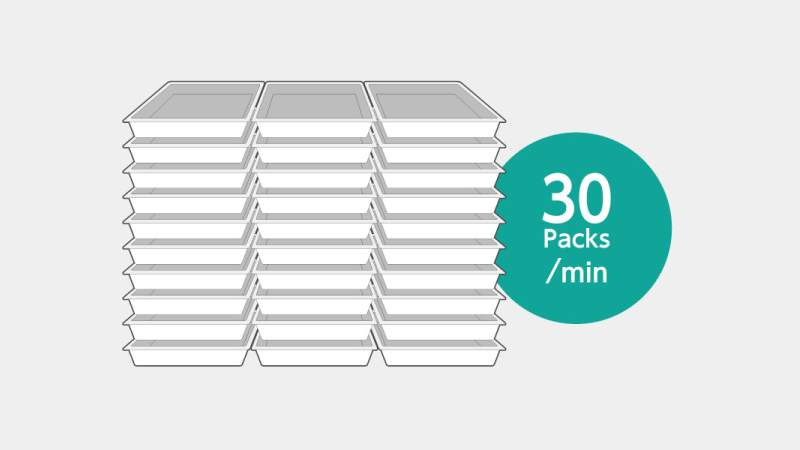

Wrapping Speed | Max. 30 packages/min. |
---|---|
Package Size | Width: 130 to 350 mm / Height : 10 to 130 mm / Depth : 80 to 230 mm * The combination of maximum size in each dimension cannot be used. The size of the package that can be wrapped also depends on the film used. |
Film Size | Accepts 300 to 500 mm rolls |
Weighing
Multi interval | Single interval | |||
Capacity | Max. 6/15kg | Max. 3/6kg | Max. 30 lb | |
Scale Interval | e=2/5g | e=1/2g | e=0.01 lb | |
Weighing Range | 40 g - 15 kg | 20 g - 6 kg | 0.20 - 30 lb |
Labeling
Label Type | Die-cut Label | Linerless Label |
---|---|---|
Labeling Width | Automatic label application: 40 - 80 mm Manual label application: 25 - 80 mm |
44/59 mm |
Label Length | Automatic label application: 28 - 105 mm Manual label application: 20 - 150 mm |
Automatic label application: 28 - 105 mm Manual label application: 20 - 500 mm* * Maximum printing length is 300 mm |
Net Weight | Approx. 355kg |
---|
