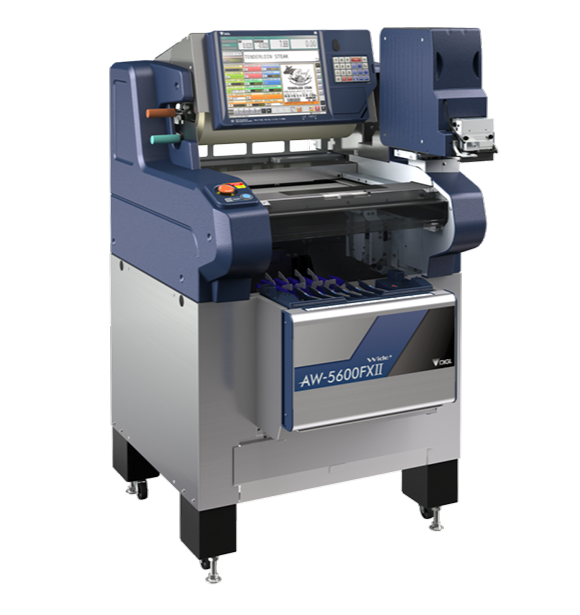

AW-5600FXII
The latest upgrade tackles hard-to-wrap items with ease
Dimensions
Wrapping
Wrapping Speed | Max. 17 packages/min. |
---|---|
Package Size | Width: 80 to 350 mm/ 3.1-13.8 inches Height: 10 to 130 mm/ 0.4-5.1 inches Depth: 80 to 230 mm/ 3.1-9.0 inches * The combination of maximum size of each dimensions cannot be used. Maximum size of the package that can be wrapped also depends on the film to use. |
Film width | 350 to 500 mm |
Weighing
Interval type | Multi interval | Single inerval | ||
---|---|---|---|---|
Capacity | Max. 3/6 kg | Max. 6/15 kg | Max. 30 lb | |
Scale Inerval | e=1/2 g | e=2/5 g | e=0.01 lb | |
Weighing range | 20 g-6 kg | 40 g-15 kg | 0.20-30 lb | |
Max. wrapping capacity | 5 kg | 5 kg | 11 lb |
Labeling
Label Type | Die-cut label | Linerless label |
---|---|---|
Label width | 25-80 mm/ 0.98-3.1 inches | 44-59 mm/ 1.73-2.3 inches |
Label length | 20-150 mm/0.79-5.9 inches | 20-500 mm/0.79-19.7 inches * Maximum printing length is 300 mm/ 11.8 inches |

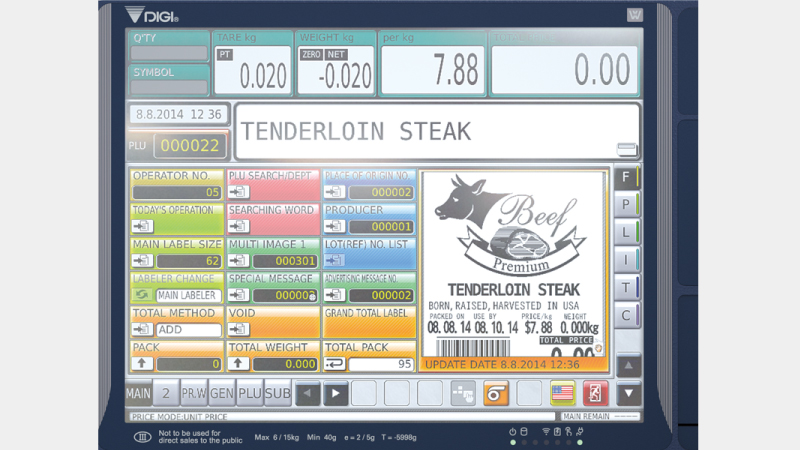

Operation console
Display panel | TFT LCD color (15 inches) touch panel | |
---|---|---|
Operation keys | Mechanical keys and touch screen | |
Memory for programmable files | 18 GB |
General
Power source and power consumption |
208-240 V; 1 φ/3 φ; 60 Hz; 1.8 kVA,1.8 kW |
|
---|---|---|
Net weight | Approx. 250 kg |
