DP-5000e
DPS-5000e
Bilancia prepack compatta e funzionale
Dimensioni
Dati tecnici
Portata | Max. 15 kg / 30 lb | Max. 30 kg | |
---|---|---|---|
Intervallo singolo | 1/3.000 | e=5 g / 0.01 lb | e=10 g |
1/6.000 | - | e=5 g | |
1/7.500 | e=2 g | - | |
Portata | Max. 6/15 kg | Max. 15/30 kg | |
Multi-range | 1/3.000 | e=2/5 g | e=5/10 g |
Modello | DPS-5000e | ||||
---|---|---|---|---|---|
Dimensioni L x P x A (mm) | DPS-5000e | 220 x 423 x 423 | |||

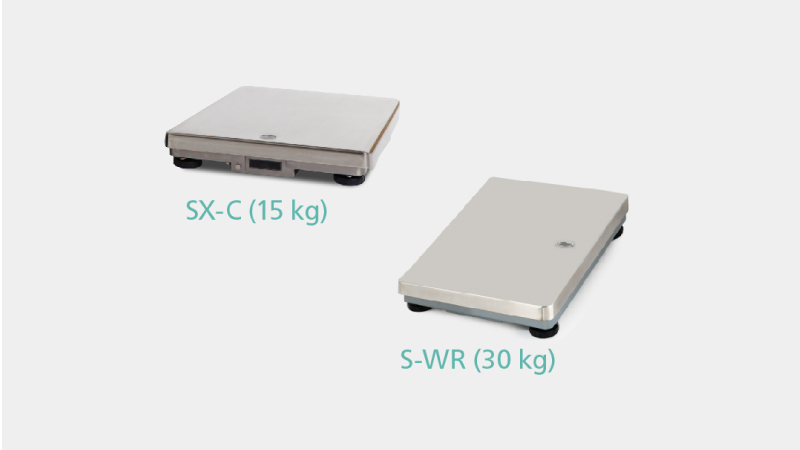

Piattaforma | SX-C (15 kg): 294 x 354 x 54 | S-WR (30 kg): 295 x 355 x 55 | |||
Stand (Opzionale) | 210 x 369 x 183 | ||||
Display operatore | TFT SVGA 8.4'' con touch screen | ||||
Dimensione display L x A (Pixels) | 800 x 600 | ||||

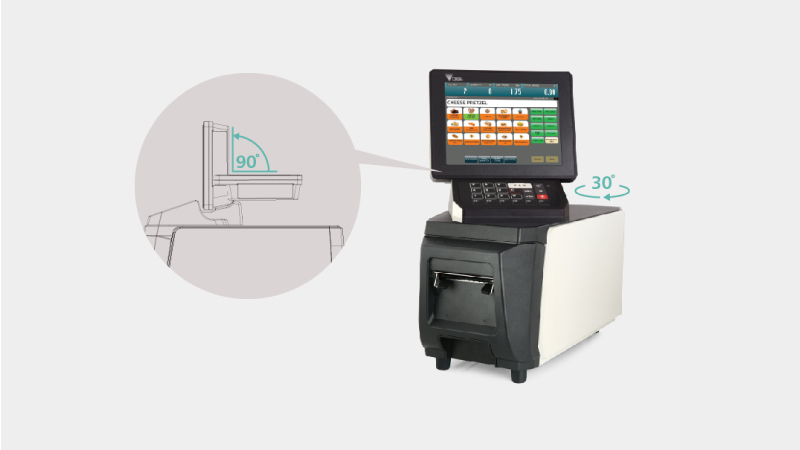

Angolo rotazione display | + / - 30° a destra/sinistra ; 90° in alto/basso | ||||

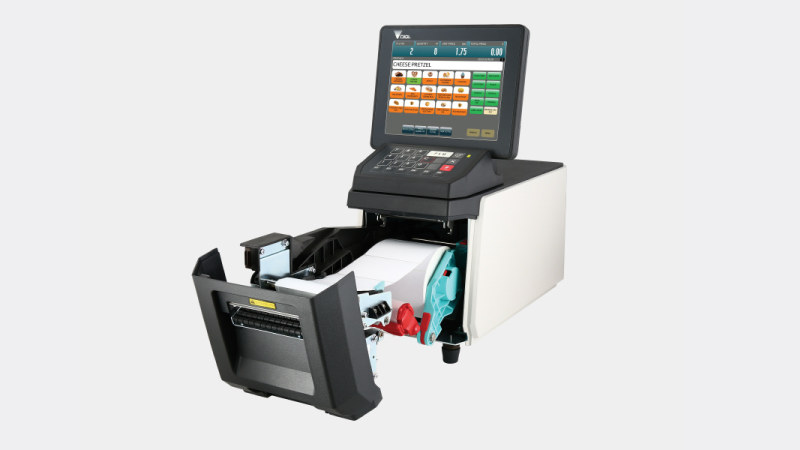

Etichetta / Scontrino | Stampante | Etichette su supporto | Linerless con Auto-Cutter | ||
Diametro rotolo | Max. 125 mm | Max. 125 mm | |||
Larghezza carta | Max. 80 mm | Max. 80 mm | |||
Larghezza di stampa | Max. 80 mm | Max. 80 mm | |||
Velocità di stampa | Max. 150 mm / secondo* | Max. 150 mm / secondo* | |||
Risoluzione di stampa | 300 dpi | 300 dpi | |||
Codici a barre | ITF, EAN-8, EAN-13, EAN-128, RSS, PDF417 (solo per scontrino), GS1, QR Code, Datamatrix | ||||
Alimentazione | AC 100/220V | ||||
Consumo | 80 W | ||||
Temperatura d'esercizio | Da -10°C a +40°C | ||||
Umidità d'esercizio | Da 15% a 85% RH (senza condensa) | ||||
Interfaccia standard | 2 x RS232C, Ethernet 10/100 Base T, 4 x USB 2.0, SD Socket | ||||
Peso netto | DPS-5000e | 11,2 kg | |||
Bilancia | SX-C: 6,65 kg | S-WR: 4,5 kg | |||
Stand (Opzionale) | 3,4 kg |
