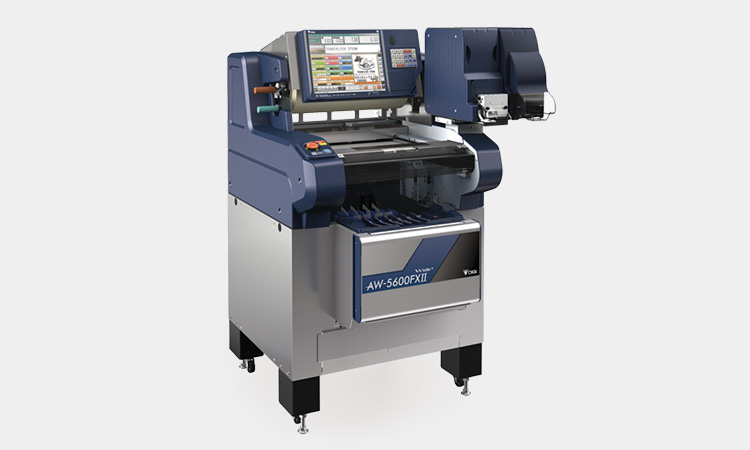

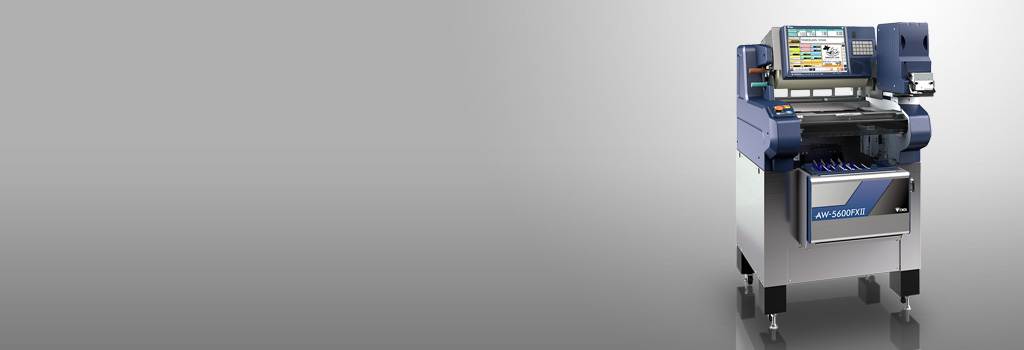

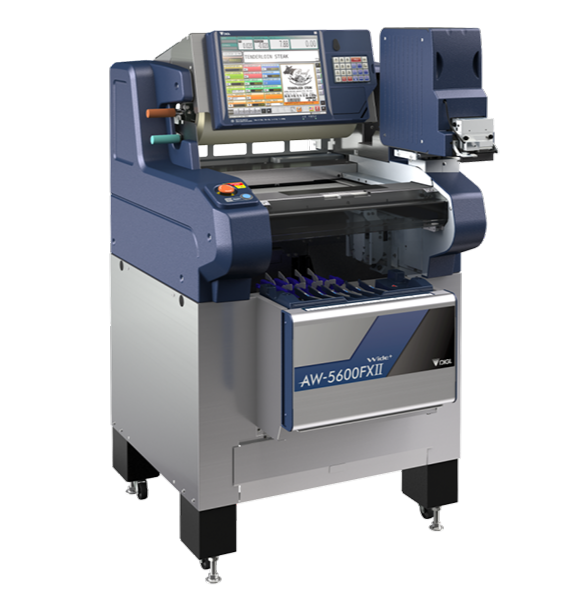

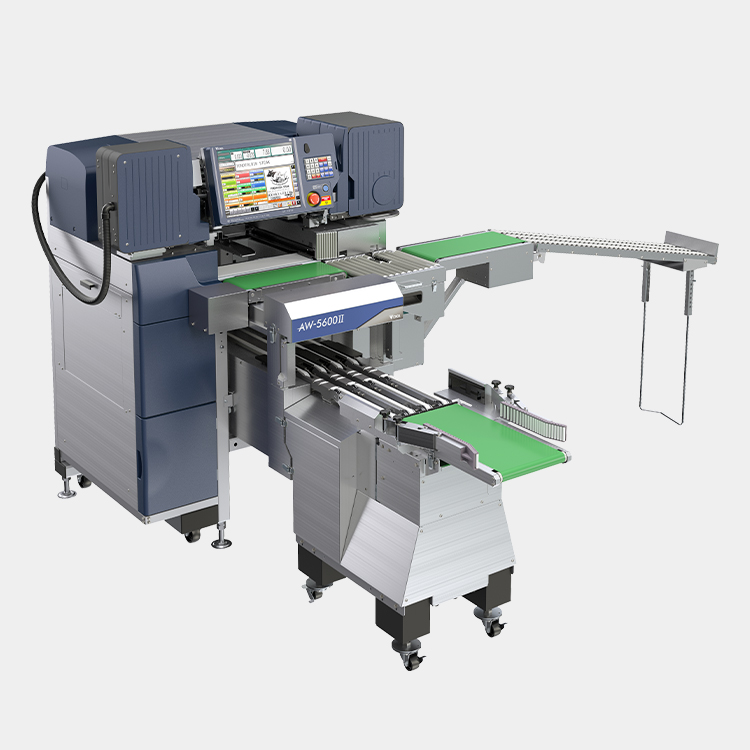

AW-5600FXII

The latest upgrade tackles hard-to-wrap items with ease

Dimensions

aw5600fx-2_WP05_01
aw5600fx-2_WP05_02
aw5600fx-2_WP05_03

Wrapping

Wrapping Speed Max. 17 packages/min.
Package Size Width: 80 to 350 mm/ 3.1-13.8 inches
Height: 10 to 130 mm/ 0.4-5.1 inches
Depth: 80 to 230 mm/ 3.1-9.0 inches
* The combination of maximum size of each dimensions cannot be used.
Maximum size of the package that can be wrapped also depends on the film to use.
Film width 350 to 500 mm


Weighing

Interval type Multi interval Single inerval
Capacity Max. 3/6 kg Max. 6/15 kg Max. 30 lb
Scale Inerval e=1/2 g e=2/5 g e=0.01 lb
Weighing range 20 g-6 kg 40 g-15 kg 0.20-30 lb
Max. wrapping capacity 5 kg 5 kg 11 lb


Labeling

Label Type Die-cut label Linerless label
Label width 25-80 mm/ 0.98-3.1 inches 44-59 mm/ 1.73-2.3 inches
Label length 20-150 mm/0.79-5.9 inches 20-500 mm/0.79-19.7 inches
* Maximum printing length is 300 mm/ 11.8 inches

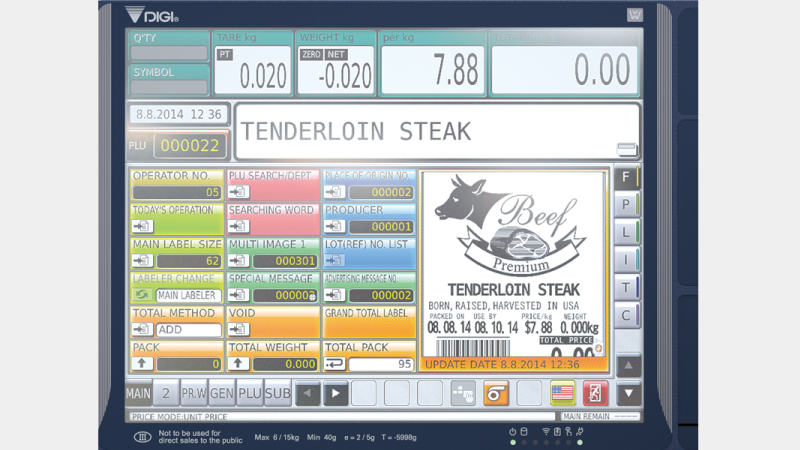

Operation console

Display panel TFT LCD color (15 inches) touch panel
Operation keys Mechanical keys and touch screen
Memory for programmable files 18 GB


General

Power source and power consumption

208-240 V; 1 φ/3 φ; 60 Hz; 1.8 kVA,1.8 kW
220-240 V; 1 φ; 50/60 Hz; 1.8 kVA,1.8 kW

Net weight Approx. 250 kg
