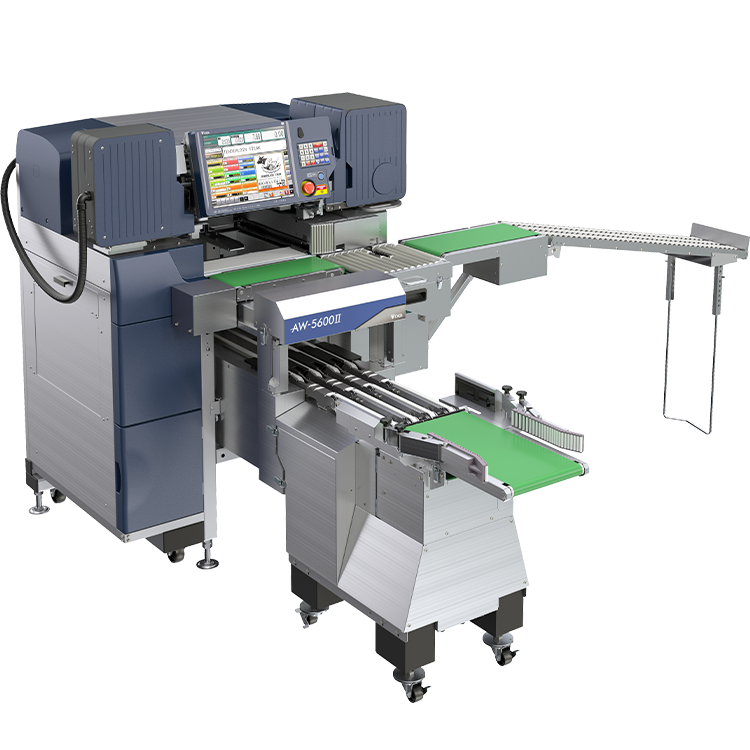

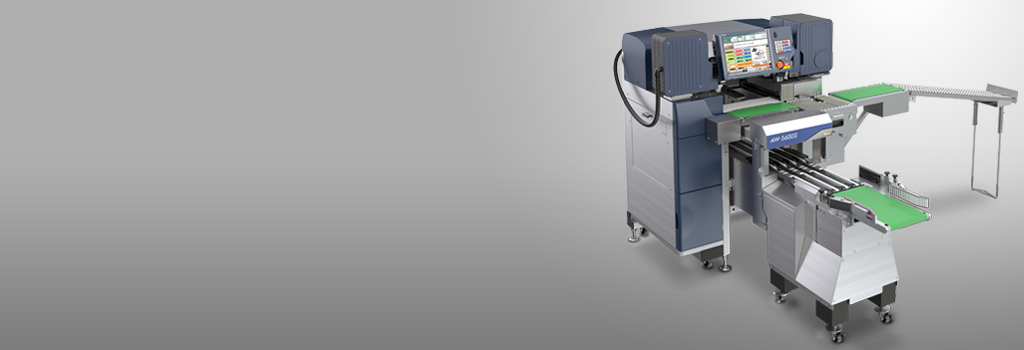

Fully integrated weigh-wrap-label solution with automatic infeed conveyor for more efficient operation and high productivity.

AW-5600ATII
Auto-Infeed

Retail

Main Features

The AW-5600ATII Auto-Infeed is high-performance automatic weigh-wrap-label solution designed for easy and efficient operation, as well as for environmental concerns by reducing film consumption from its super-stretch function and eliminating label base paper from Linerless solution.

The automatic infeed conveyor further enhances operation efficiency by building full in-line production without manual infeeding. The flexible tray discharge directions provides more options for users to optimize machine layout in order to utilize space and achieve the most efficient operation and high productivity.

All-in-one Solution

The AW-5600ATII Auto-Infeed enables integrated weighing, wrapping, and labeling function to provide extremely efficient operation and achieve high productivity with minimized labor cost.

Please refer to the video to have more understanding about the concept and benefits of this solution.

aw5600-2_a-i_WP04_01

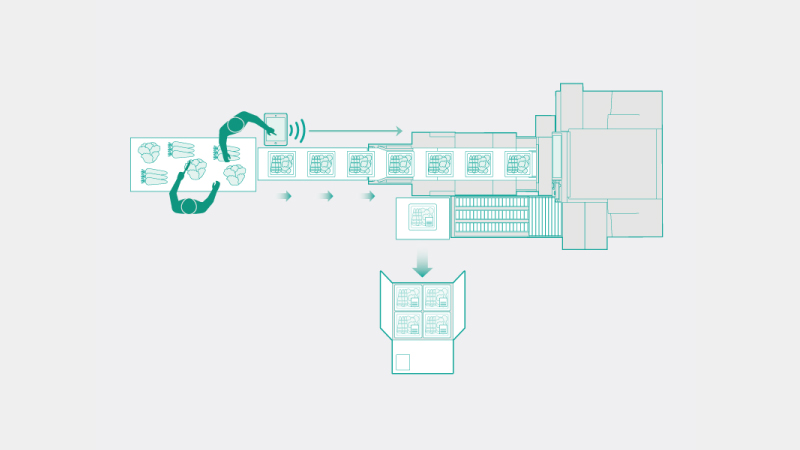

Automation Infeed Conveyor

The automatic infeed conveyor with weighing function enables more labor cost saving as well as higher efficiency and productivity.

aw5600-2_a-i_WP04_02

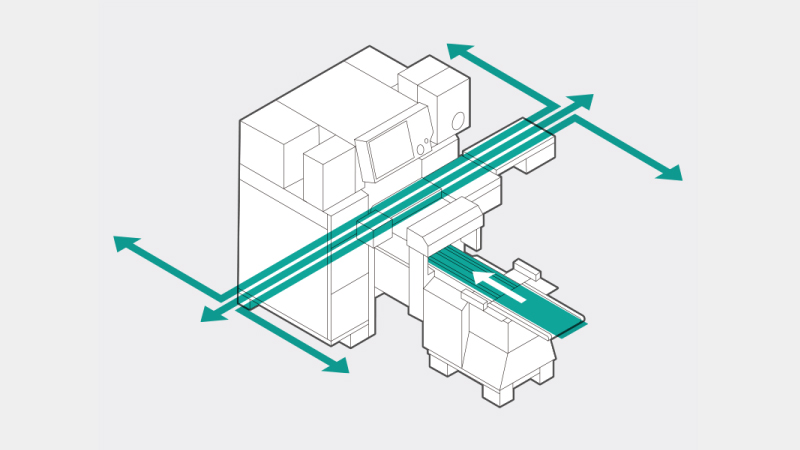

Flexible Tray Discharge Directions

The AW-5600ATII Auto-Infeed provides flexible tray discharge directions for users to design the most efficient production line in order to utilize space and achieve high productivity.

aw5600-2_WP04_02

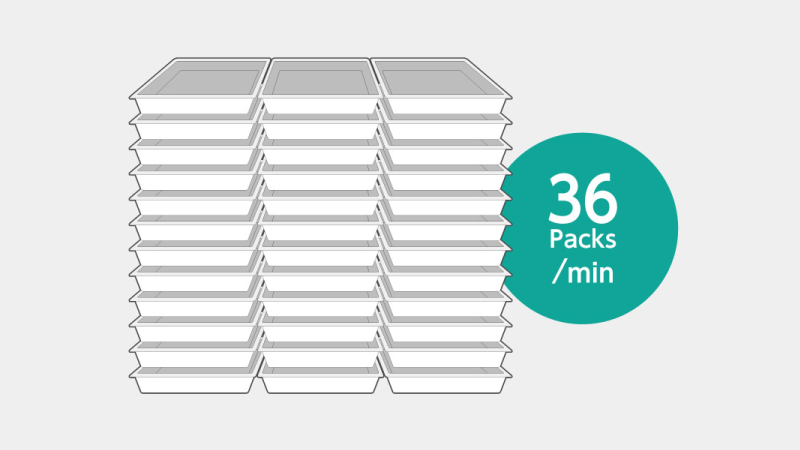

High productivity

The AW-5600ATII Auto-Infeed can produce up to Max. of 36 packages per minute, carrying out integrated weighing, wrapping and labeling operations. The automatic infeed conveyor allows the infeed of trays at faster and stable speed to increase productivity, and it can also help save labor cost by allowing the connection of an extension conveyor without manual infeed. The simple and sophisticated design for easy film and label change as well as easy daily cleaning also contributes to high productivity and consistent performance.

aw5600_WP04_03

Economical & Ecological

The film super-stretch technology of AW-5600ATII Auto-Infeed allows the use of narrower film to wrap a variety of trays from small to big family size, thereby allowing savings on film while ensuring tighter and neater wrapping finish to add more value on the products. The auto-cut Linerless function is another exclusive and innovative solution of the AW-5600ATII Auto-Infeed. This totally eliminates label base paper, therefore, effectively reducing waste and label cost. Its label content auto-compress feature also reduces empty spaces in labels, hence, maximizing label usage as well. All these features make the AW-5600ATII Auto-Infeed a great solution from Economical & Ecological points of view.

aw5600-2_WP04_05

Flexible and effective label solution

The Linerless solution enables flexible label design without the restriction of fixed label size so users can highlight not only general product information, but also value-added information such as recipe tips for shoppers as well as attractive promotional materials to increase sales. A total of three labels i.e. price label with general information, POP label for promotion, and bottom label for additional information (ex. cooking instruction, recipes, barcode, etc) can be applied simultaneously to take advantage of its extremely high efficiency and productivity capabilities.

Specifications

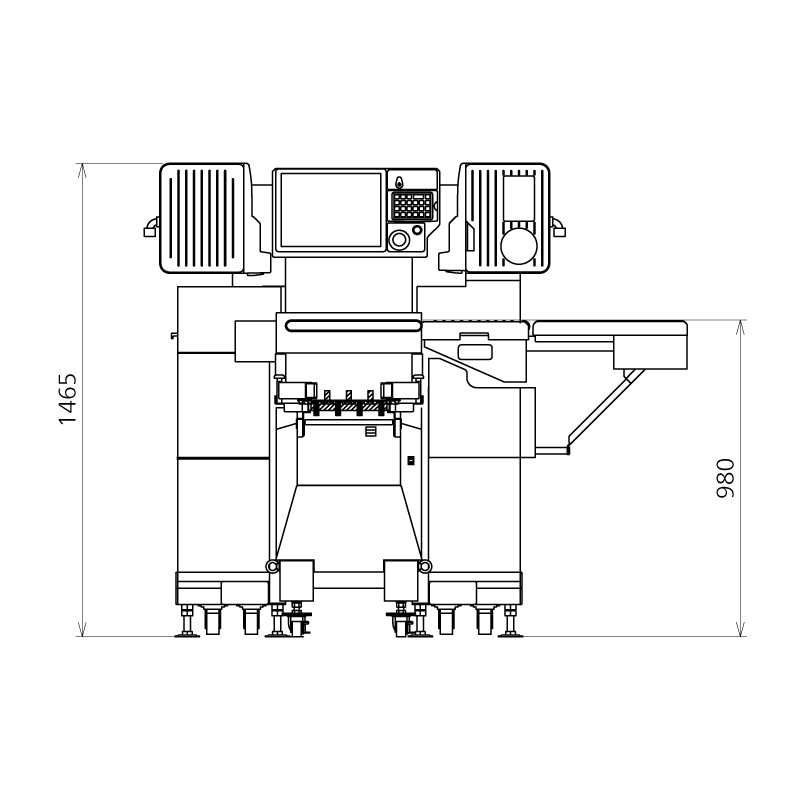

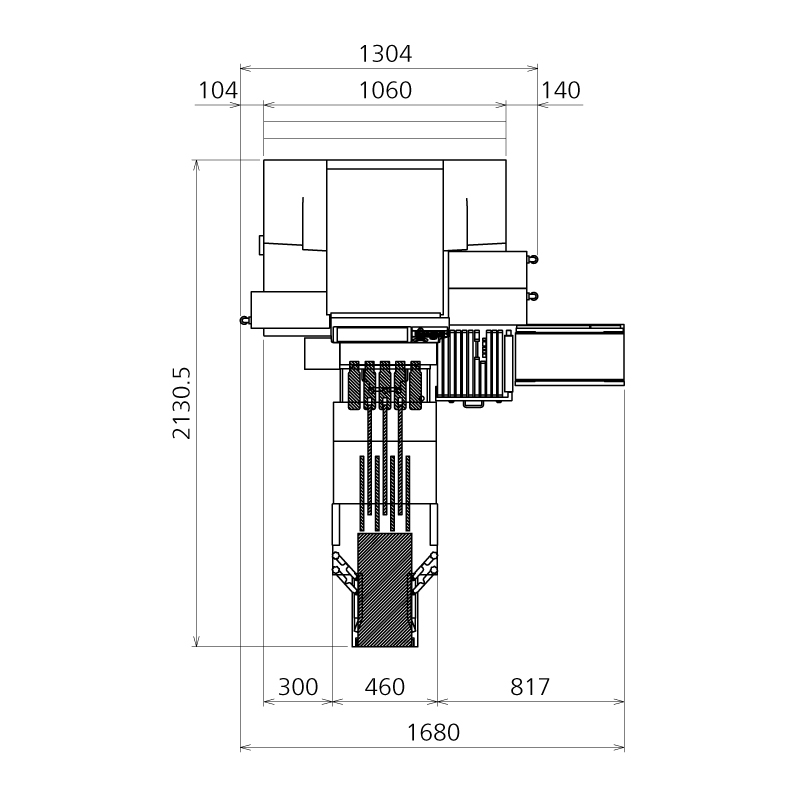

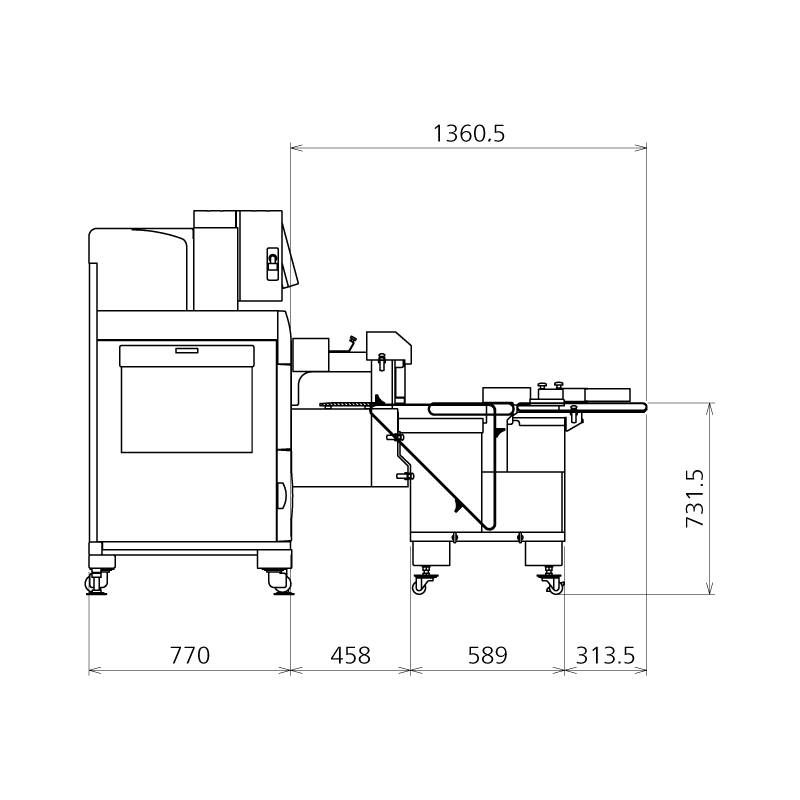

Dimensions

  • aw5600-2_a-i_WP05_01
  • aw5600-2_a-i_WP05_02
  • aw5600-2_a-i_WP05_03

Wrapping

Wrapping speed Max. 36 packages/min.
Package size Width: 130 to 380 mm / 5.1-15 inches
Height: 10 to 150 mm /0.4-5.9 inches
Depth: 80 to 254 mm / 3.1-10 inches

The combination of maximum size of each dimensions cannot be used.
The size of the package that can be wrapped also depends on the film to use.
Film roll capacity One
Film width 300 to 450 mm


Weighing

Interval type Multi interval Single inerval
Capacity Max. 3/6 kg Max. 6/15 kg Max. 30 lb
Scale interval e=1/2 g e=2/5 g e=0.01 lb
Weighing range 20 g-6 kg 40 g-15 kg 0.20-30 lb
Max. wrapping capacity 5 kg 5 kg 11 lb


Labelling

Label type Thermal printer
Labeling application Automatic
Label width 40-80 mm/1.6-3.1 inches
Label length 28-105 mm/1.1-4.1 inches


Operation console

Display panel TFT LCD color (15 inches) touch panel
Operation keys Mechanical keys and touch screen
Memory for programmable files 18 GB


General

Power source and power consumption 208-240 V; 1 φ/3 φ; 60 Hz; 2.4 kVA,2.4 kW
220-240 V; 1 φ; 50/60 Hz; 2.4 kVA,2.4 kW
Net weight Approx. 490 kg / 1080 lb


Options

aw5600-2_a-i_WP09_01

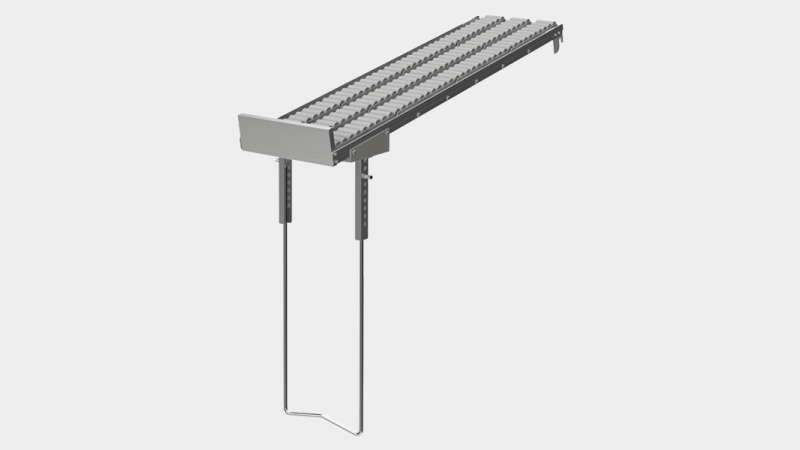

Gravity outfeed conveyor

Wrapped packages are discharged and stacked.
aw5600-2_a-i_WP09_02

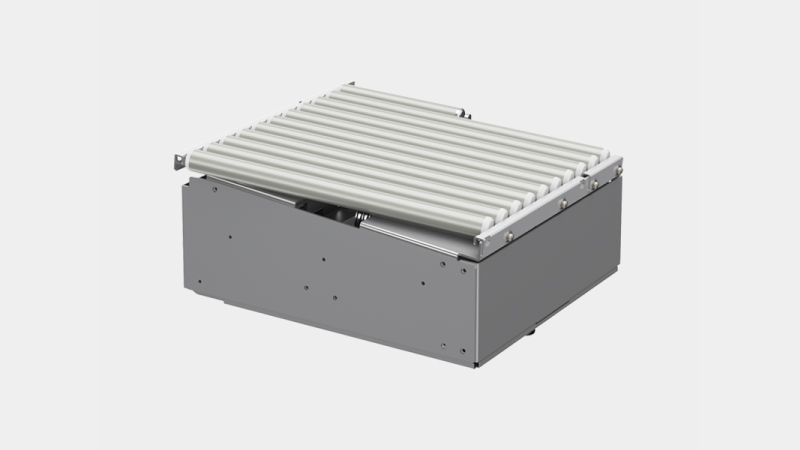

90 degree conveyor

Wrapped packages can be discharged at the machine's rear side or return to the operator's station.
aw5600-2_a-i_WP09_03

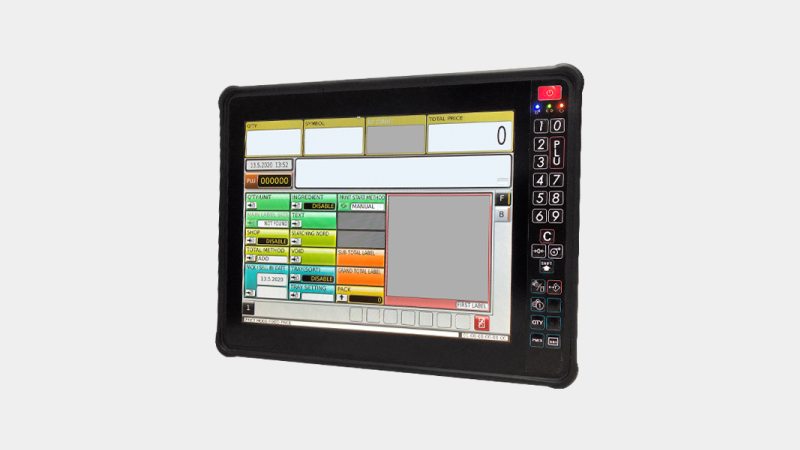

External console

Operators can operate the machine remotely for more efficiency.
aw5600-2_a-i_WP09_04

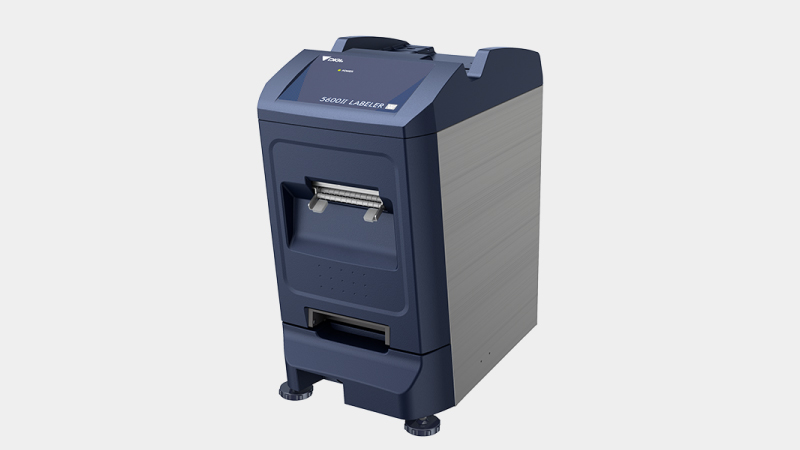

External labeler

The total information can be printed for shipping labels and other applications.
