sws5600e_EN_WP02_01jpg

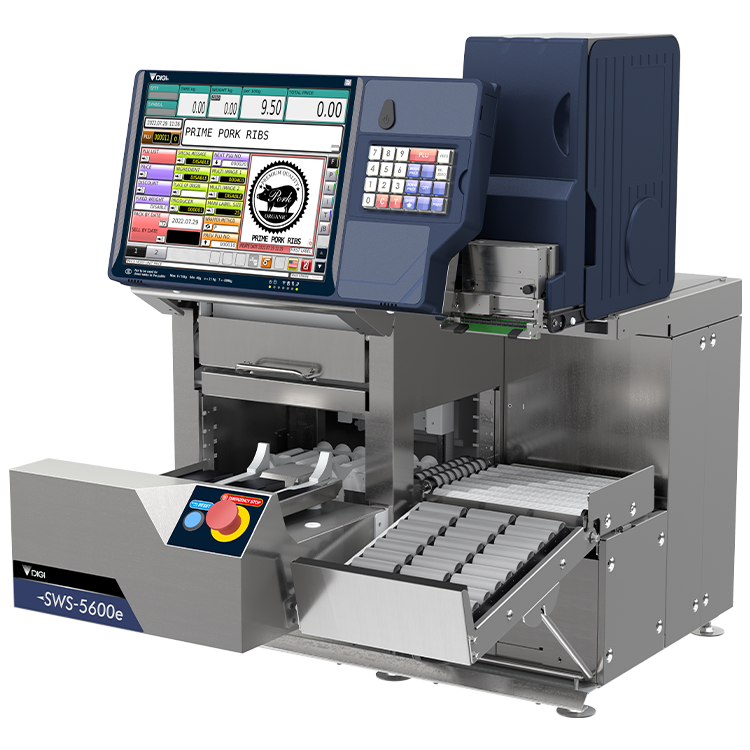

SWS-5600e

A tabletop tray sealer with integrated weigh-seal-label functionality

Dimensions

sws5600e_WP05_01_EN
sws5600e_WP05_02_EN
sws5600e_WP05_03_EN

Packing

Package Size Width: 240mm (9.4 inches)
Depth: 140mm or 190mm (5.5 or 7.5 inches)
Height: 30-80mm (1.2-3.1 inches)
Packing Speed
Max. 10 packages/min
Number of Film Rolls 1 roll
Film Width 250mm (9.8 inches)



Weighing

Interval Type Multi Interval Single Interval
Capacity
Max. 3/6kg
Max. 30 lbs
Scale Interval e=1/2g e=0.01 lbs
Weighing Range 20g-6kg 0.20lb-30 lbs
Max. Packing Capacity 50g-1kg 0.11lb-2.2 lbs



Thermal Printer

Label Type Linerless Label
Label Print Width Max. 44/59mm (1.73/2.3 inches)
Label Print Length Max. 300mm (11.8 inches)
Dot Density 12 dot/mm (300dpi)



General

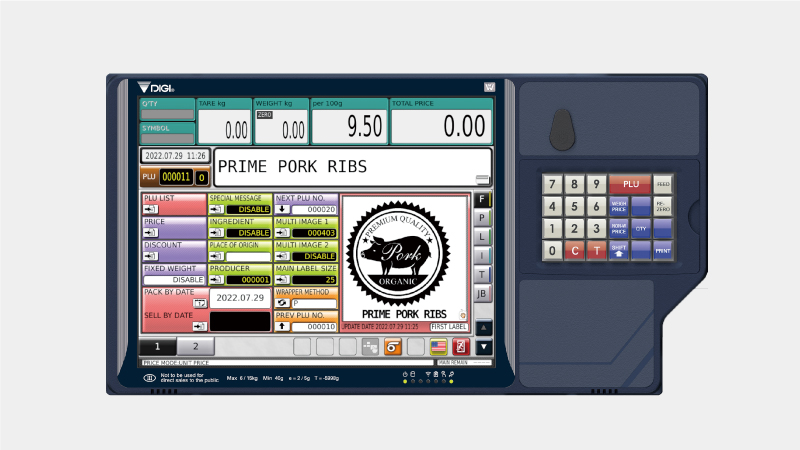

Display Panel TFT LCD color (15 inches) touch panel
Power Consumption 220-240V;1φ;50/60Hz;1.0Kw
Net Weight 100kg
Operating Temperature 10 to 30℃ with no condensation
Operating Humidity 80% RH (Max.) with no condensation
