DRV-200

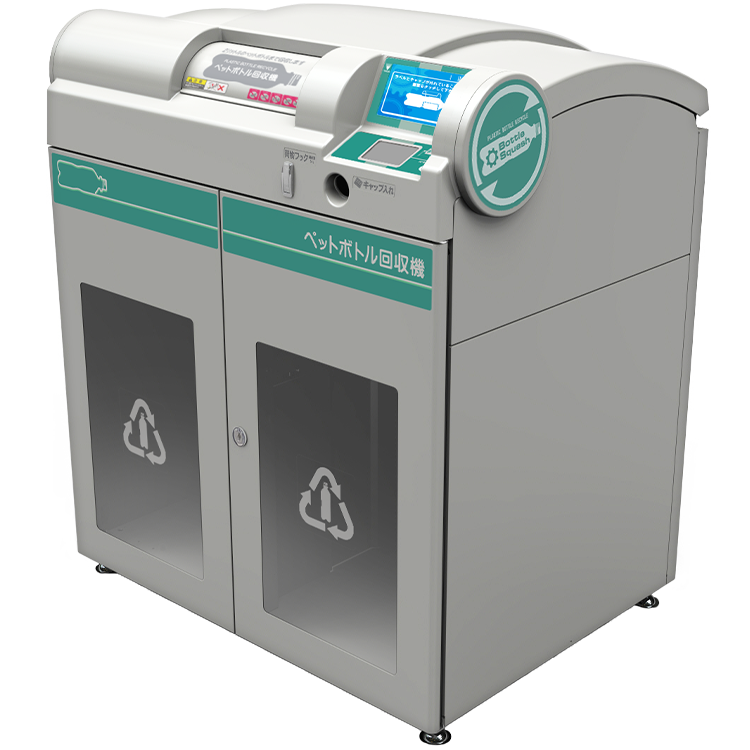

Large-capacity reverse vending machine that's simple and easy to use for anyone. It provides increased storage capacity, enhances operability, and preserves the quality of the plastic as a recyclable resource.
Dimensions
Basic Specifications
| DRV-200 | |
|---|---|
| External Dimensions (W × D × H) |

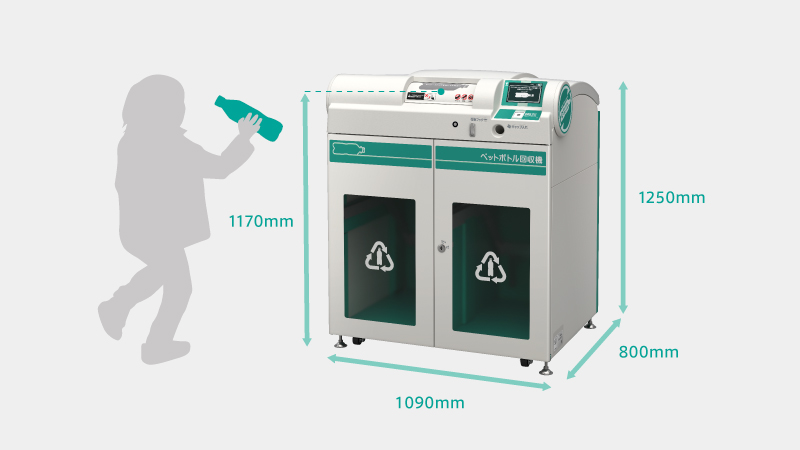

1090 mm × 800 mm × 1,250 mm Bottle inlet height: 1,170 mm |
| Net Weight | Approx. 260 kg |

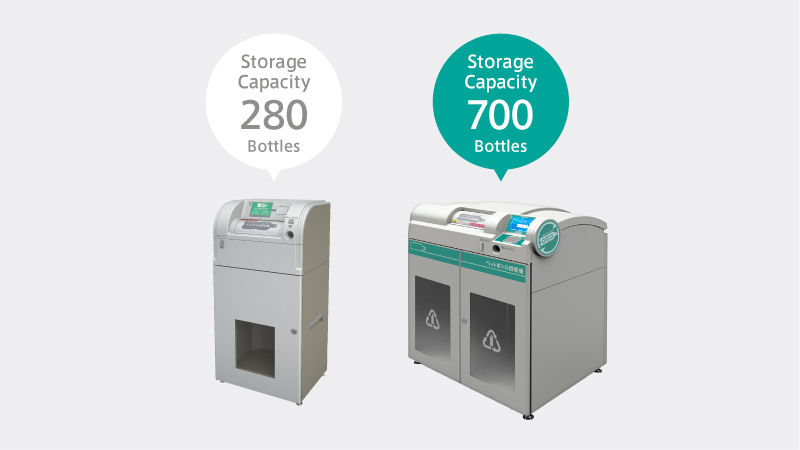

| Storage Capacity (Based on 500 ml PET bottle size) |
Approx. 700 bottles (Approx. 350 bottles per side) |
| Collection Bin Size | 455 mm (W) x 775 mm (D) × 535 mm (H) (x 2) |
| Collection Bag Size | 1,200 mm (W) x 1,500 mm (H) 0.05 mm or greater thickness recommended |
| Bottle Cap Collection Bag Size | 300 mm (W) x 530 mm (H) x 140 mm (D) |
| Power Supply Voltage/Power Consumption | Single phase 100 V / 1.1 kW |
| Power Supply Connector | Flat blade two-pole plug with grounding prong 125 V 15 A rating |
| Operating Environment (Temperature/Humidity) | 5 to 35 ℃ 80% RH (max) (non-condensing) |
| Volume Reduction Method | Compaction with pre-cutting |

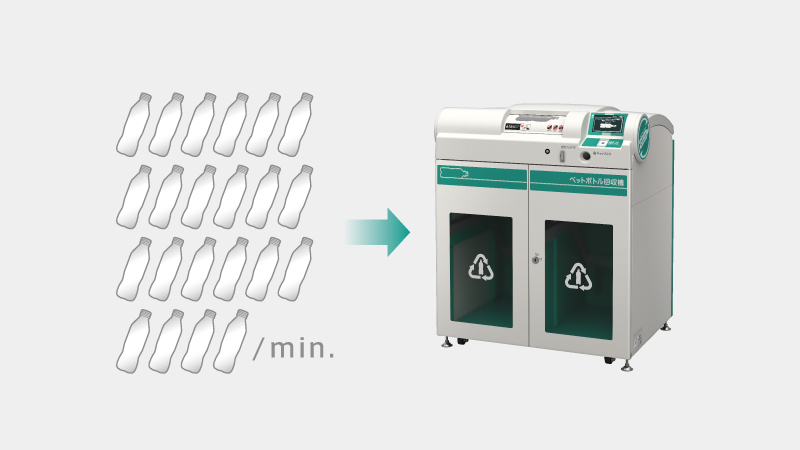

| Processing Speed | Approx. 15 bottles/min (approx. 13 bottles/min when camera function used) |
| Compatible Bottle Types | PET plastic beverage bottles |
| Compatible Bottle Sizes | φ45 x 116 mm (150 ml) to φ110 (90 mm (D) x 110 mm (W) x 310 mm (2 L) (Standard sizes) |
| Bottle Feeding Method | Tap on touch panel or use of readers Card reader: contactless NFC |
| Operating Noise Level | Max. 68.7 dB (63 dB during normal operation) |
| Bottle Material Recognition | Decision using combination of the camera and all sensor inputs |
| Display | 7.0 inch TFT color display |
| Touch Panel | Capacitive touch panel |

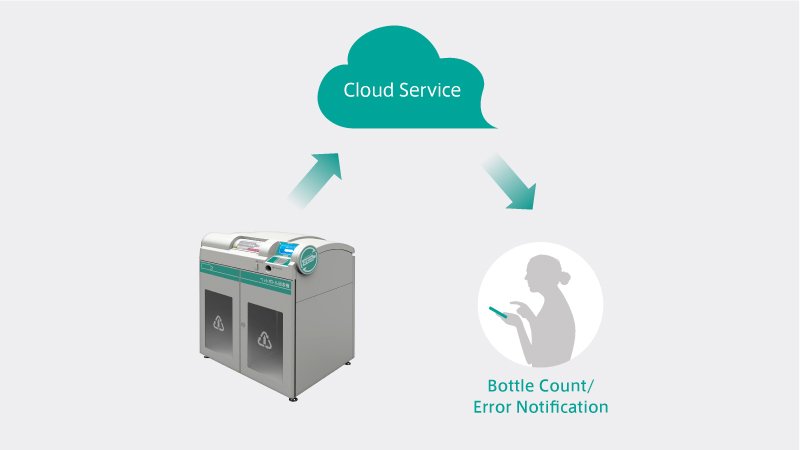

| Communications | 4G mobile router |
