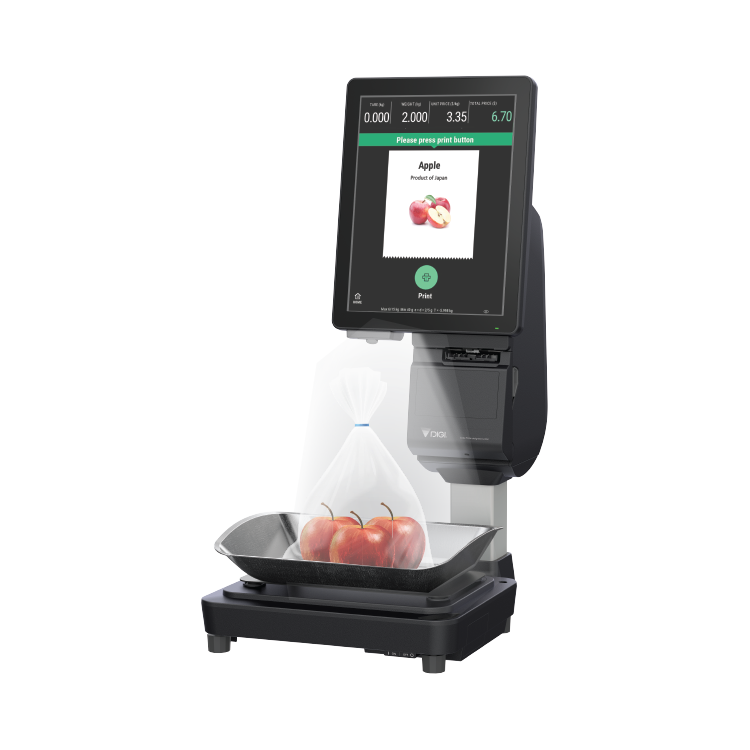

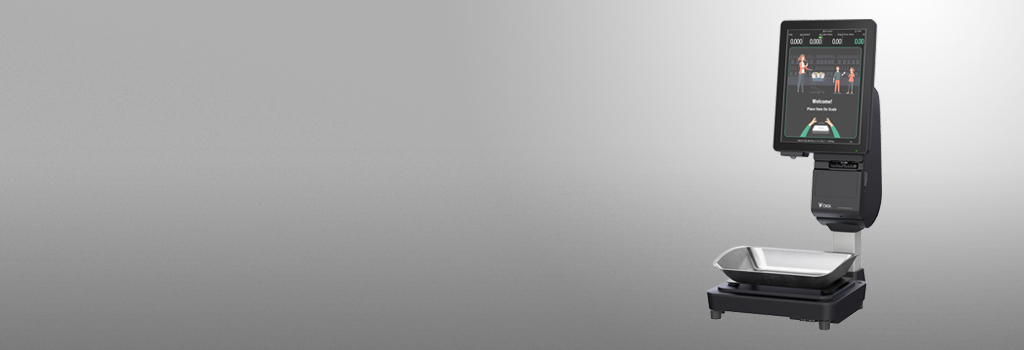

AI - Powered Smart Recognition Scale

SM-6000 AI

Retail

Main Features

SM-6000 AI infuses enterprise-grade cognitive intelligence into retailers’ operations, delivering high accuracy and recognition speed for rapid product identification. This Edge computing technology grants high-speed performance and can be easily deployed in various settings such as Fruits and Vegetables, Dried Fruits and Nuts to identify loose and bagged produce.

sm6000ai_WP04_01

Smart Recognition

Leveraging AI technology, loose and bagged produce can be automatically recognised by the scale's built-in camera. Best matched candidates will then be called up on the screen to reduce mis-selection and shrinkage while offering shoppers a fast, one-touch self-serve experience.


sm6000ai_WP04_02

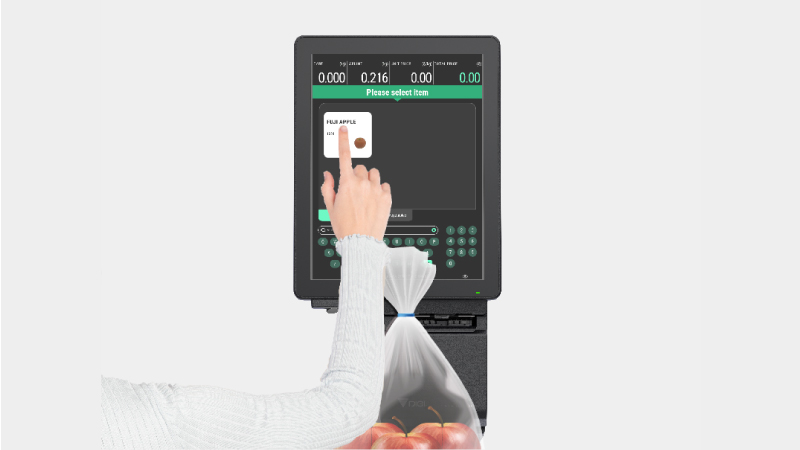

Fast Operation

With the weighing process taking just mere seconds for each item, shoppers' average transaction time is significantly reduced while increasing throughput at the weighing stations. On top of boosting operational efficiency, shrinkage caused by human error and malicious intent can also be mitigated.

sm6000ai_WP04_03

Wide Product Compatibility

Equipped with intelligence, each item can be accurately recognised by the system even with a different type of eco grocery bag, allowing customers to fully enjoy the benefits of this cutting-edge solution.

sm6000ai_WP04_04

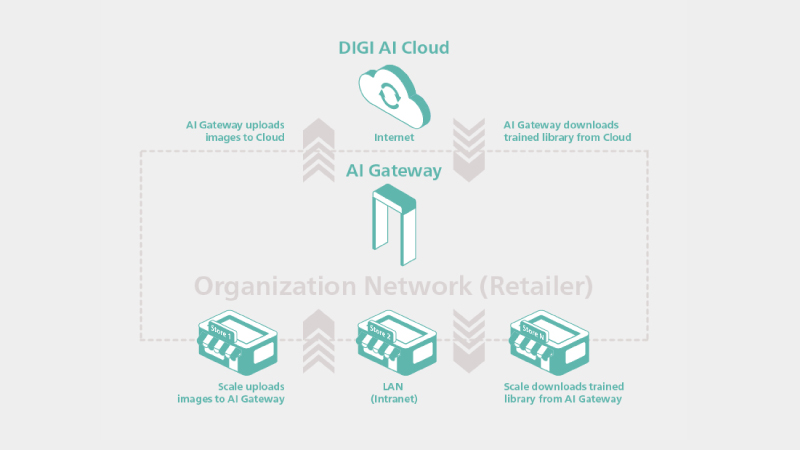

Infrastructure

AI solutions from DIGI Edge Computing are supported by a lean infrastructure that consists of three key elements: Scales, AI Gateway and AI Cloud.

By combining these features, retailers can accelerate learning with a pre-trained library, making deployment easier.

The scales would capture new products and upload them to the AI Gateway prior to training and storing them in the cloud. They act as a layer of security between the organization's network and DIGI AI cloud.

The scale recognition can also be used standalone and does not require a server or cloud connection.

Specifications

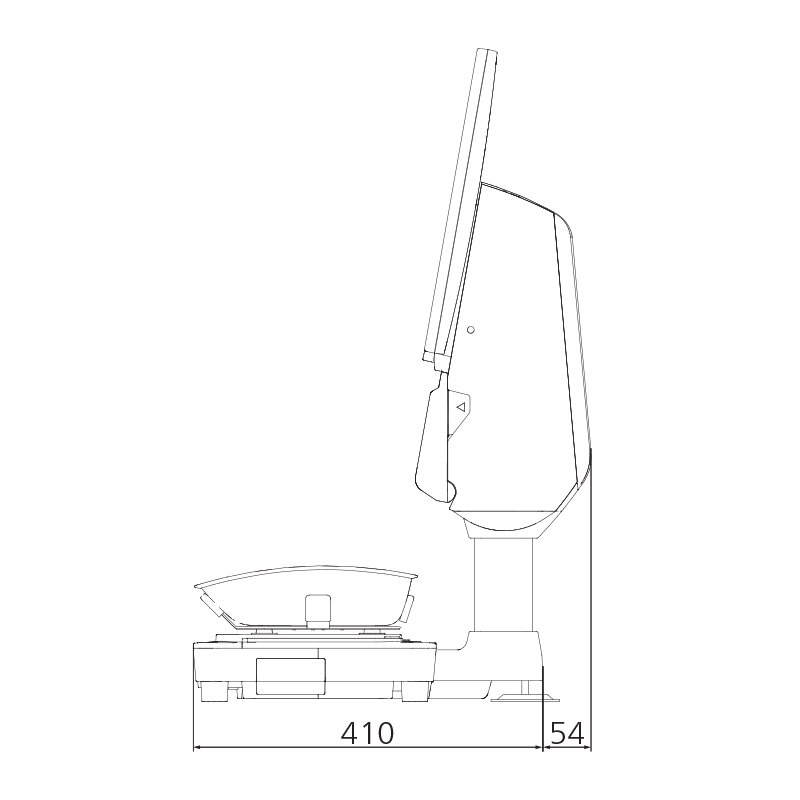

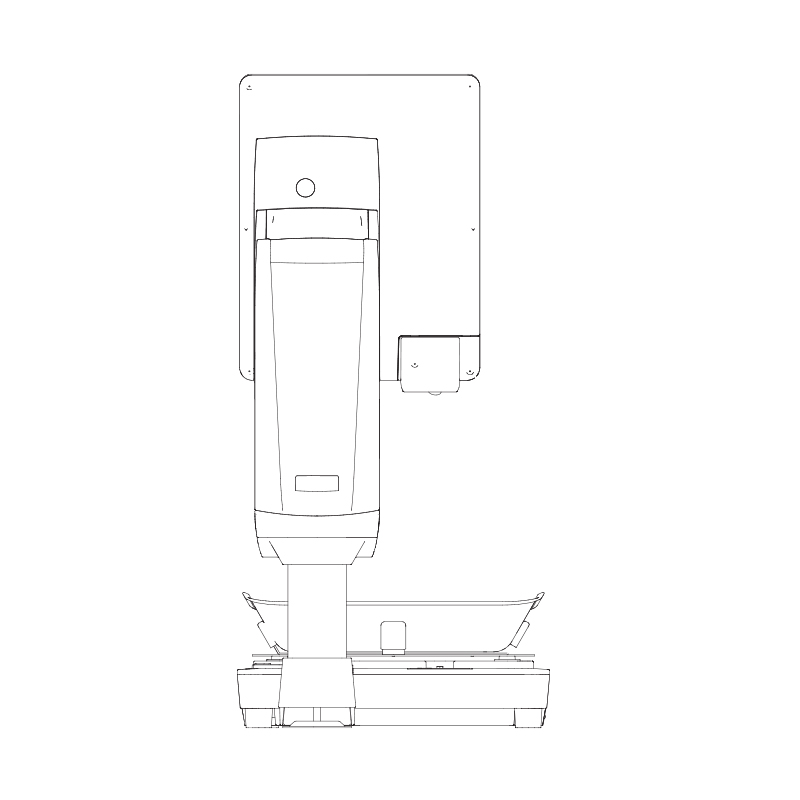

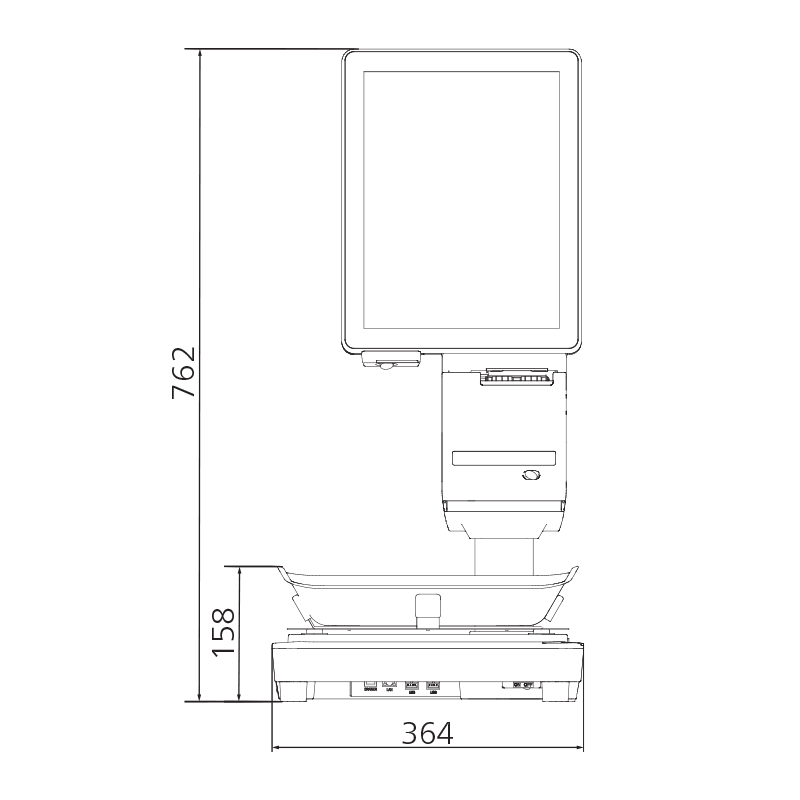

Dimensions

  • sm6000ai_WP05_01
  • sm6000ai_WP05_02
  • sm6000ai_WP05_03

Specification

Capacity Max 6kg Max 15kg/ 30lb Max 30kg
Single Interval 1/ 3,000 e= 2g e= 5g/ 0.01lb e= 10g
1/ 6,000  e= 1g - e= 5g
1/ 7,500 - e= 2g -
Capacity Max 3/ 6kg Max 6kg/ 15kg Max 15kg/ 30kg
Multi Interval 1/ 3,000 e= 1/ 2g e= 2/ 5g e= 5/ 10g

Model SM-6000 AI
Dimension W x D x H (mm) 364 × 464 × 762
Operation Display 15" TFT XGA with Capcitive Touch (768 × 1024)
Camera 480p in resolution with built-in LED
Label / Receipt Types Linerless with Auto-Cutter
Roll Diameter Max 95mm
Roll Width Max 62mm
Print Width Max 61mm
Printing Speed Max 150mm / second*
Print Resolution 300 dpi
Power Source Compiled to 80PLUS Power Saving**
Operating Temperature -10℃ to +40℃
Humidity 15% to 85% RH Non-Condensation
Standard Interface Ethernet 10 / 100 Base T, 4 × USB 2.0, RJ11
Options Wireless LAN IEEE 802.11 a / b / g / n / ac, InfoTag, e.Label with Hi-Touch, Base Station, Speed ID, BYO***, Contactless
Factory Option Auto Tilt Sensor
Net Weight 16.7kg
*To achieve maximum print speed, high sensitivity thermal paper is necessary. Contact DIGI for more details.
** 100 - 120 Vac Gold (North America, Canada and Japan)
    210 - 240 Vac Silver (European, UK and most of Asia)
*** Plastic platter required.

Case Studies

Case study



USA's First AI Scales Speed-Up Checkout and Boost Customer Satisfaction

Tops Friendly Markets

Tops in Lewiston, NY is the first Supermarket in the United States to install and implement DIGI’s SM-6000AI Self-Service Scale in their produce department.
