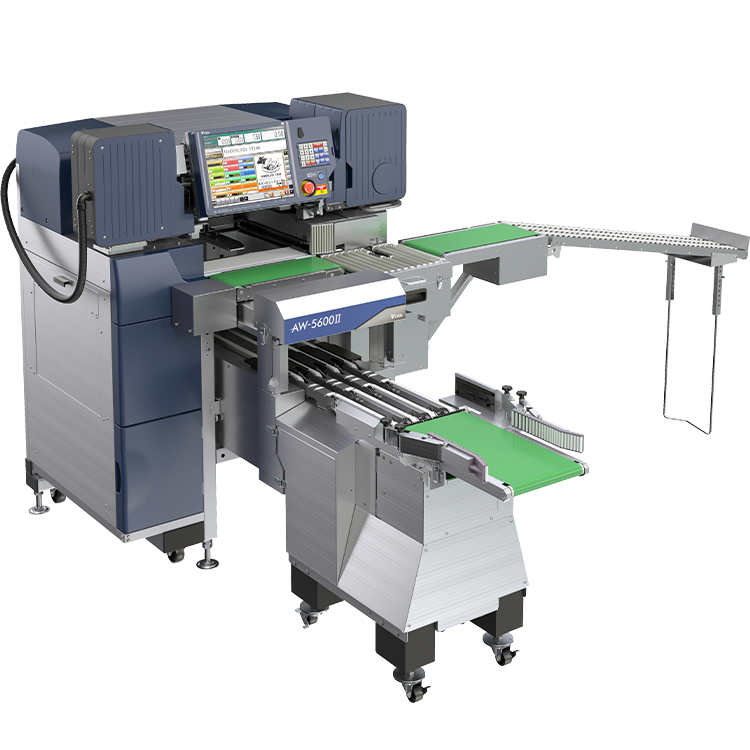

aw5600-2_aーi_WP02_01

AW-5600ATII
Auto-Infeed

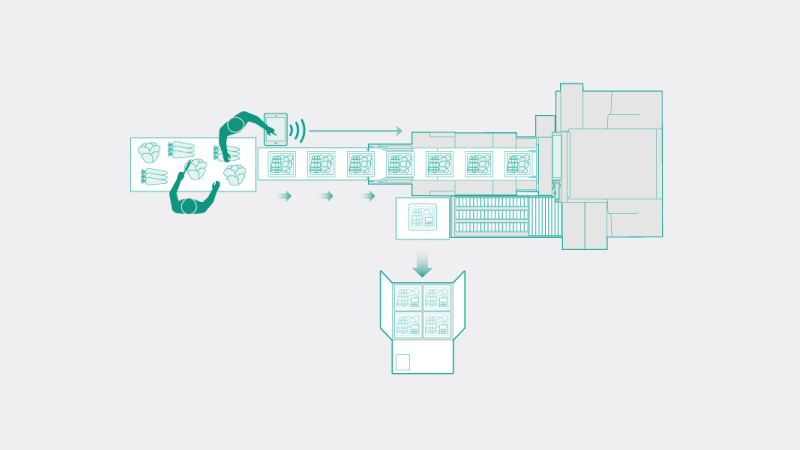

Fully integrated weigh-wrap-label solution with automatic infeed conveyor for more efficient operation and high productivity.

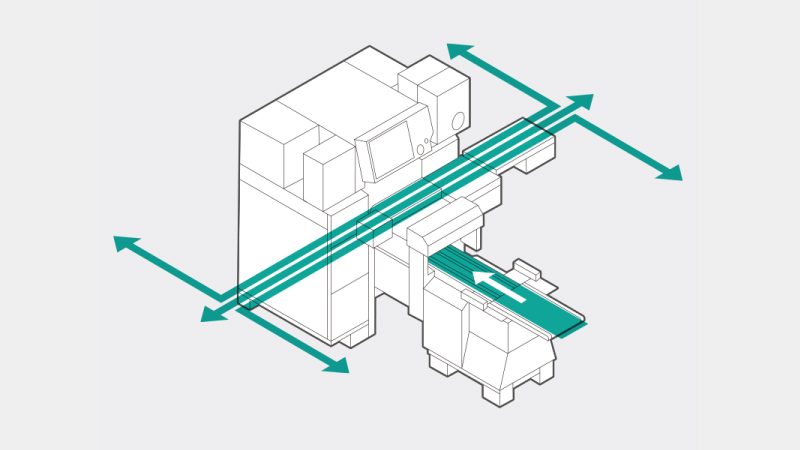

Dimensions

aw5600-2_a-i_WP05_01
aw5600-2_a-i_WP05_02
aw5600-2_a-i_WP05_03

Wrapping

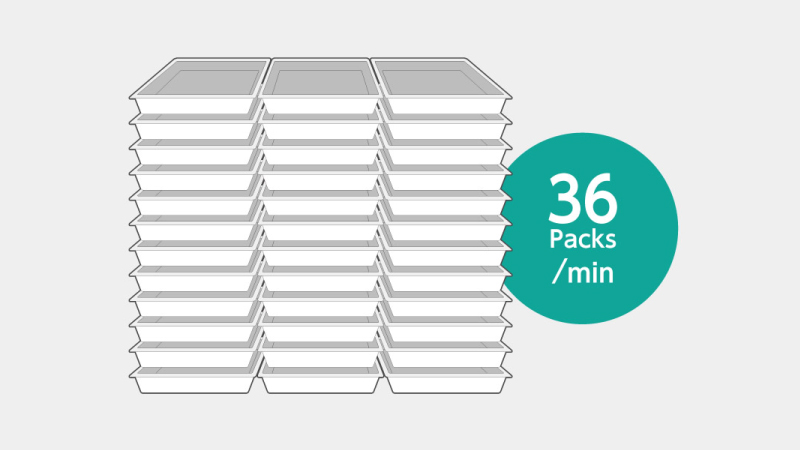

Wrapping speed Max. 36 packages/min.
Package size Width: 130 to 380 mm / 5.1-15 inches
Height: 10 to 150 mm /0.4-5.9 inches
Depth: 80 to 254 mm / 3.1-10 inches

The combination of maximum size of each dimensions cannot be used.
The size of the package that can be wrapped also depends on the film to use.

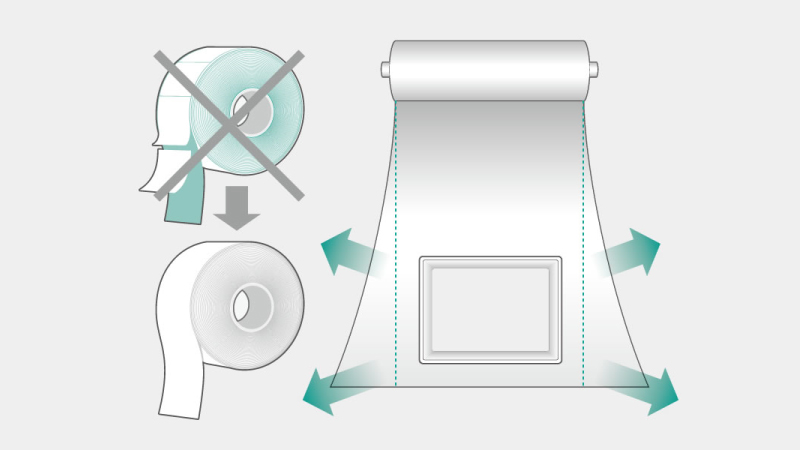

Film roll capacity One
Film width 300 to 450 mm


Weighing

Interval type Multi interval Single inerval
Capacity Max. 3/6 kg Max. 6/15 kg Max. 30 lb
Scale interval e=1/2 g e=2/5 g e=0.01 lb
Weighing range 20 g-6 kg 40 g-15 kg 0.20-30 lb
Max. wrapping capacity 5 kg 5 kg 11 lb


Labeling

Label type Thermal printer
Labeling application Automatic
Label width 40-80 mm/1.6-3.1 inches
Label length 28-105 mm/1.1-4.1 inches


Operation console

Display panel TFT LCD color (15 inches) touch panel
Operation keys Mechanical keys and touch screen
Memory for programmable files 18 GB


General

Power source and power consumption 208-240 V; 1 φ/3 φ; 60 Hz; 2.4 kVA,2.4 kW
220-240 V; 1 φ; 50/60 Hz; 2.4 kVA,2.4 kW
Net weight Approx. 490 kg / 1080 lb
