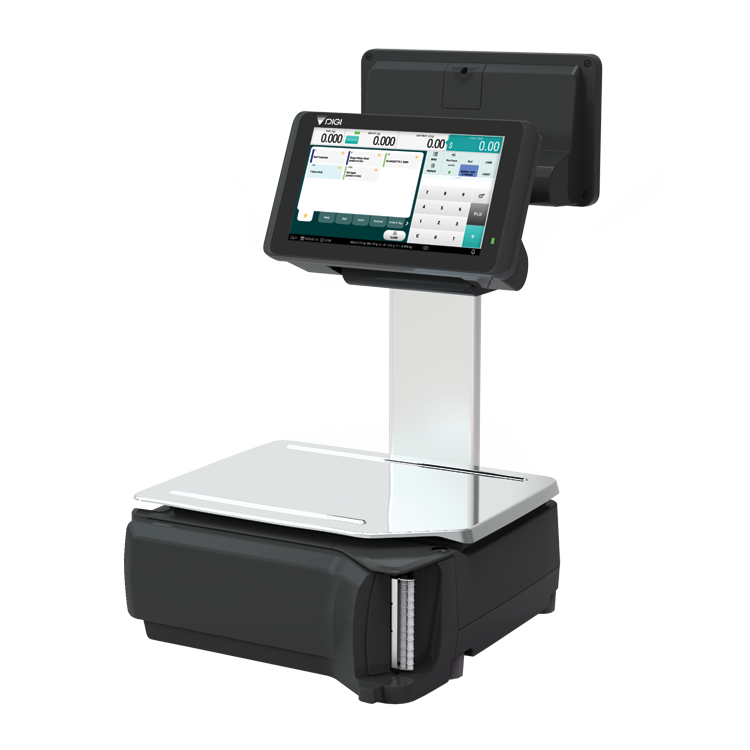

SM-5300 X
Conçue pour Exceller
Dimensions
Specification
Capacité | Max 6kg | Max 15kg/ 30lb | Max 30kg | |
---|---|---|---|---|
Mono échelon | 1/ 3,000 | e= 2g | e= 5g/ 0.01lb | e= 10g |
1/ 6,000 or 1/ 7,500 | e= 1g | e= 2g | e= 5g | |
Capacité | Max 3/ 6kg | Max 6kg/ 15kg | Max 15kg/ 30kg | |
Bi-échelon | 1/ 3,000 | e= 1/ 2g | e= 2/ 5g | e= 5/ 10g |

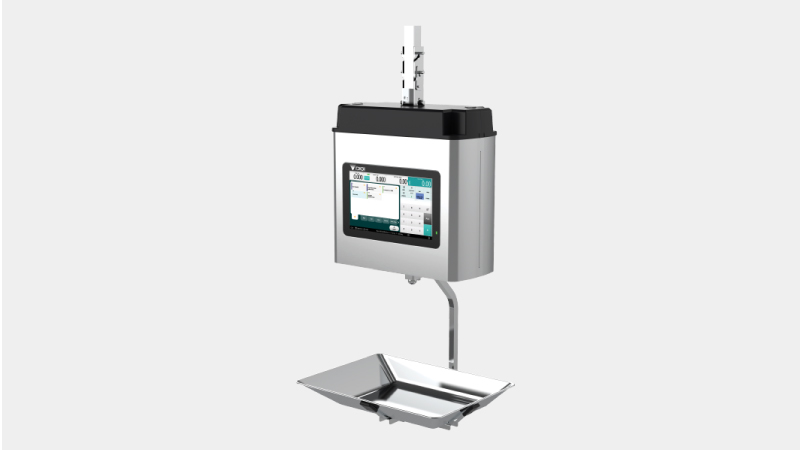

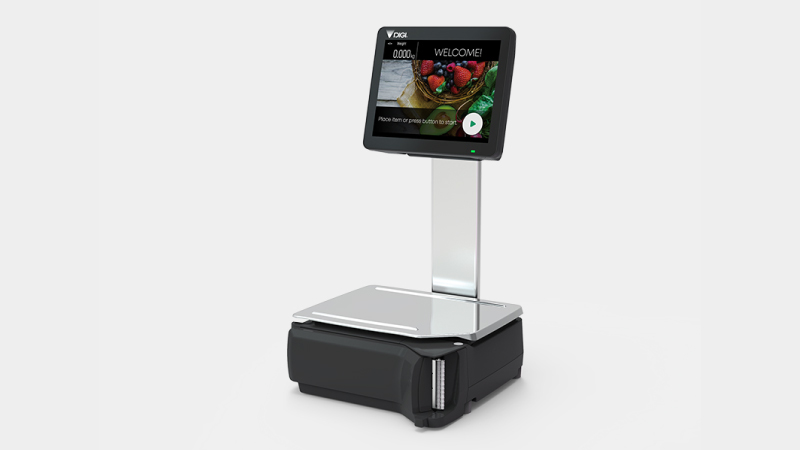

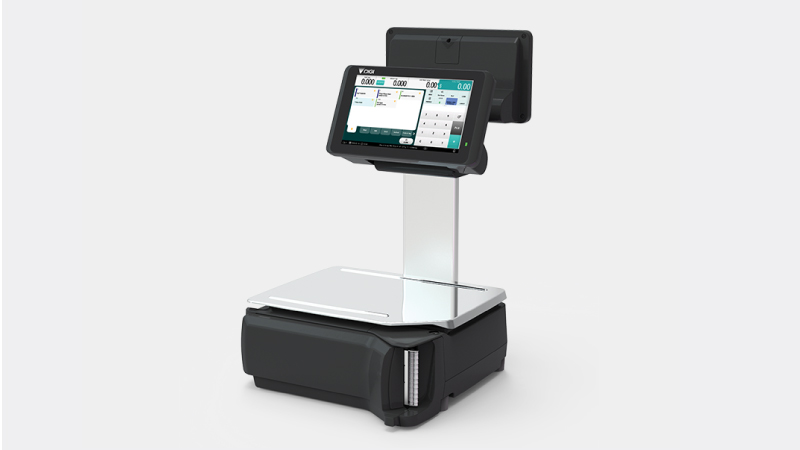

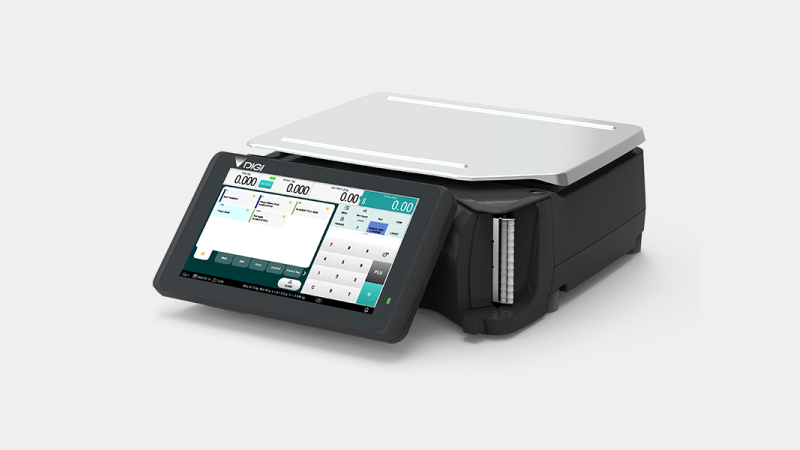

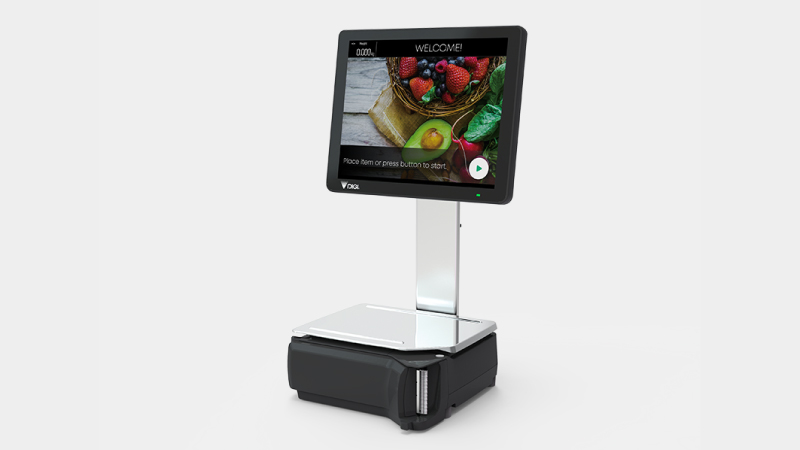

SM-5300 X Model | Plate | Clavier haut | Suspendue | 12.1" Libre-service | 19" Libre-service | |
---|---|---|---|---|---|---|
Dimension l x p x h (mm) |
360 x 472 x 143 | 360 x 510 x 574 | 400 x 339 x 816 | 360 x 481 x 637 | 442 x 480 x 761 | |
Ecran vendeur | 10.1" WSVGA tactile (1024 x 600) | ◯ | ◯ | ◯ | ― | ― |
12.1" TFT SVGA tactile (800 x 600) | ― | ― | ― | ◯ | ― | |
19" TFT SVGA tactile (1280 x 1024) | ― | ― | ― | ― | ◯ | |
Ecran client | 7" WVGA (800 x 480) | ◯ | ― | ― | ― | ― |
10.1" WVGA (1024 x 600) | ― | ◯ | ◯ | ― | ― | |
Résolution écran | 1/3000, 1/6000, 1/7500 | |||||
Etiquettes/Ticket | Types | Etiquettes | Linerless à massicot automatique | |||
Diamètre du roulea | Max 125mm | Max 95mm | ||||
Largueur du rouleau | Max 73mm | Max 62mm | ||||
Largueur d'impression | 60mm | 61mm | ||||
Vitesse d'impression | Jusqu'à 150mm / secondes* | |||||
Résolution d'impression | 300 dpi | |||||
Alimentation | AC 100 / 110 or 220 / 230 / 240 Volts (50/ 60 Hz) Auto Switch | |||||
Température de fonctionnement | -10℃ à +40℃ | |||||
Hummidité de fonctionnement | 15% à 85% RH | |||||
Interface | Ethernet 10 /100 Base T, 4 x USB 2.0, 1 x RJ11 | |||||
Net Weight | 10.7 kg | 13.2 kg | 14.0 kg | 13.3 kg | 17.0 kg |
* Selon qualité de papier utilisée. Contactez DIGI pour plus de précisions.
