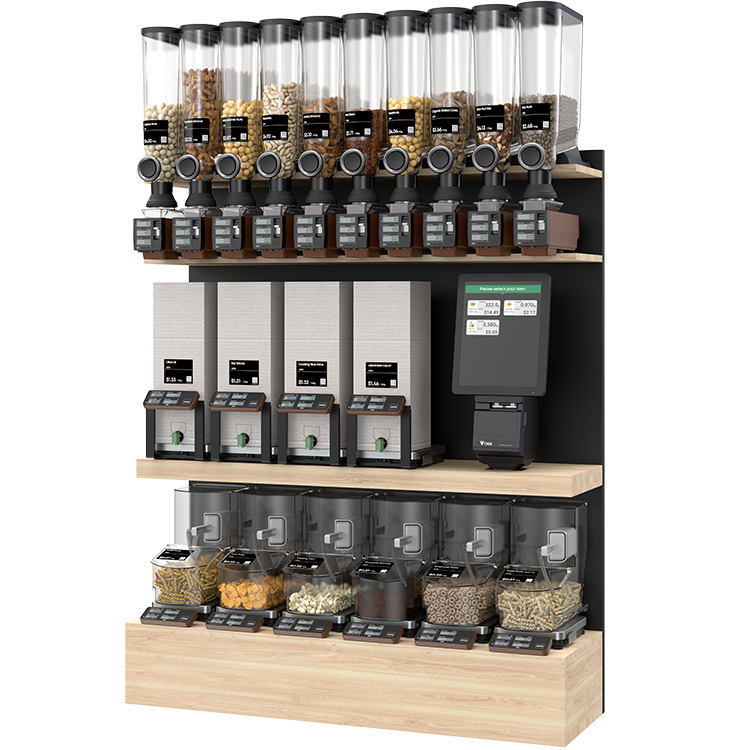

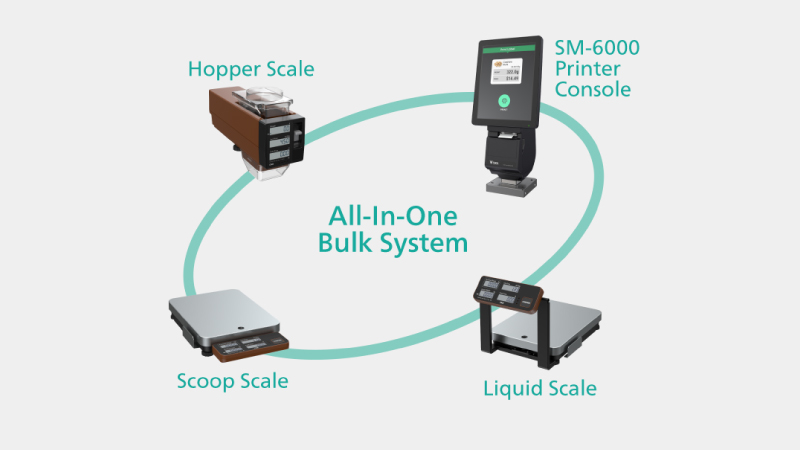

All-In-One Bulk System

Pas de tare, Pas d'agacement, Plus de convivialité.

Dimensions

aios_WP05_01
aios_WP05_02
aios_WP05_03

Caractéristiques

Capacité Modèle Division Portée échelon
Max 1.5kg HS-1000 1 / 1,000 0 - 0.5kg e = 0.5g
1 / 1,500 0.5 - 1.5kg e = 1g
Max 30kg SBS-1000 & SBS-1000LQ 1 / 6,000 0 - 30kg e = 5g

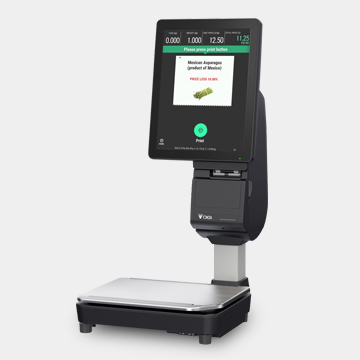

Modèle HS-1000 SBS-1000 SBS-1000LQ SM-6000 Printer Console
Dimensions L x P x H (mm) 100 x 347 x 200 224 x 357 x 54 224 x 365 x 209 280 x 206 x 576
Afficheur 3 x 7 Segments LCD
(6 digits)
4 x 7 Segments LCD
(5 digits and 6 digits x 2)
15" TFT XGA tactile
(768 x 1024)
Clavier 1 x bouton confirmation
Ticket Linerless Type Linerless à massicot automatique
Diamètre du rouleau Max 95mm
Largeur du rouleau Max 62mm
Largeur d'impression Max 61mm
Vitesse d'impression Max 150mm / seconde*
Résolution d'impression 300 dpi
Alimentation DC 7V (Max 100mA) AC - DC Power Adapter
Interface RS-485 (Connecteur RJ-45)
Nombre de balances connectable Maximum 63 balances type HS/SBS par SM-6000 Printer Console
Température de fonctionnement -10℃ to +40℃
Humidité 15% to 85% RH sans condensation
Poids net 1.4 kg 3.3 kg 3.7 kg 8 kg
*Pour obtenir la meilleure capacité d'impression, choississez une qualité de papier adaptée. Contactez DIGI pour plus de précisions info@fr.digi-group.com
