Nota: Dit product wordt niet meer verkocht en wordt mogelijk niet ondersteund. Neem contact op met uw lokale contactpersoon met betrekking tot het onderhoud van dit model of vervangende modellen.

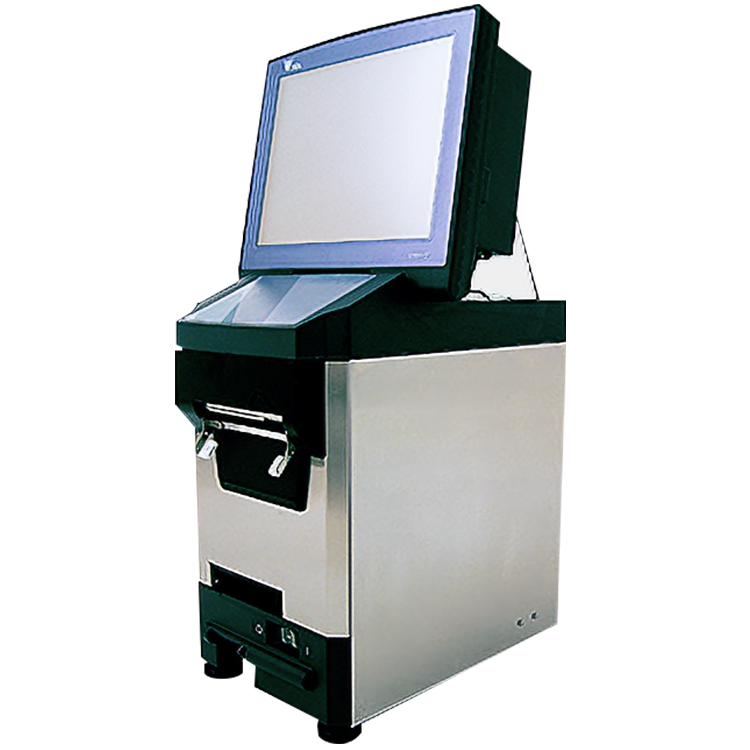

Manual weigh price labeler with integral printer
CM-700
IndustrieBelangrijkste kenmerken
The CM-700 is a compact machine allowing connection of a suitable platform scale and producing large labels up to 128mm wide. The DIGI-700 series uses an industrial PC with embedded software on a Windows® operating system. This offers a flexible integration for bi-directional communication in XML format to back-office server data collection, programming and line monitoring

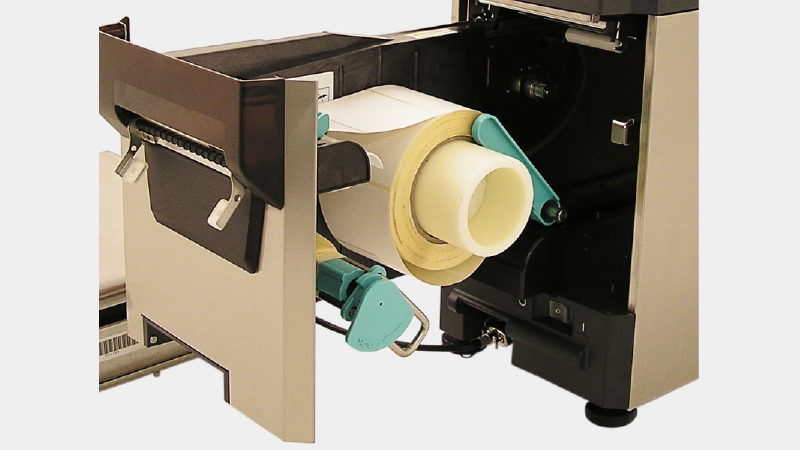

Quick accessibility
The front of the CM-700 opens fully to obtain a large access area for easy and quick label changes.
Wide thermal head
The CM-700 has a 128mm wide thermal head with a dot pitch of 300dpi allowing wide items such as EAN128 barcodes to be printed with ease.

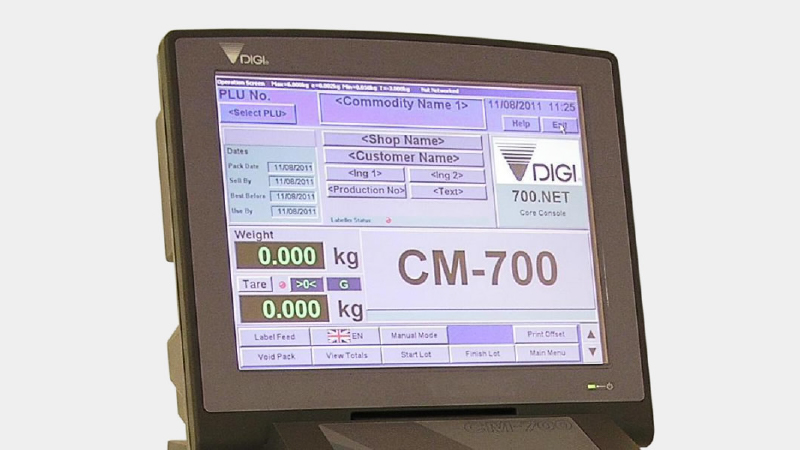

Large color touch screen
The CM-700 has a large color touch screen which aids easy programming of product information and recalling the required plu.

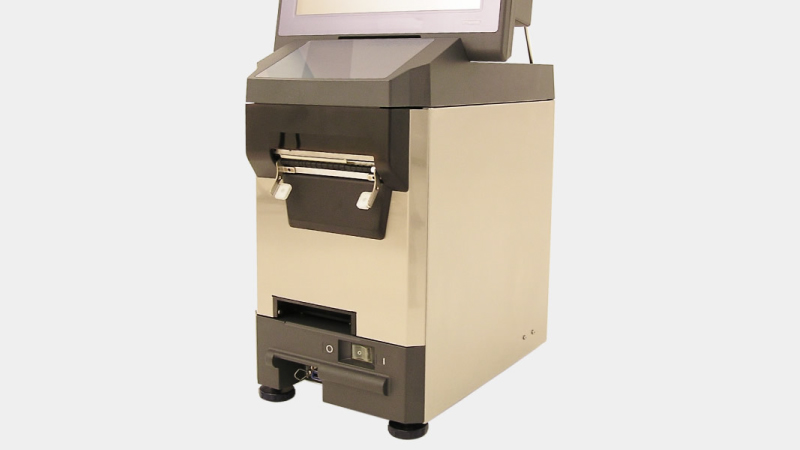

Stainless steel casing
The CM-700's printer casing is made from stainless steel giving protection from the environment and an easy wipe clean surface.
Specificaties
Afmetingen
Weighing
| Capacity | Capacity and interval is dependent on scale platform connected | ||
|---|---|---|---|
| Single Interval | |||
Display
| Screen | 12.1 color LED display |
|---|---|
| Touch panel | 12.1 pen/finger resistive type |
Operation and general specification
| Print head | 128mm at 300dpi | ||
|---|---|---|---|
| Print method | Direct thermal | ||
| Print speed | 50 to 200mm/sec | ||
| Label size | width: max 128mm | height: max 200mm | |
| Label roll | max 190mm diameter | 76mm core | inside/outside wound |
Opties
Scale platforms
FAQ
-
Can I connect another printer to the CM-700?If required, a 2nd printer such as the TP-700 can be connected to the CM-700.
The TP will then act as a total printer to the CM-700.
