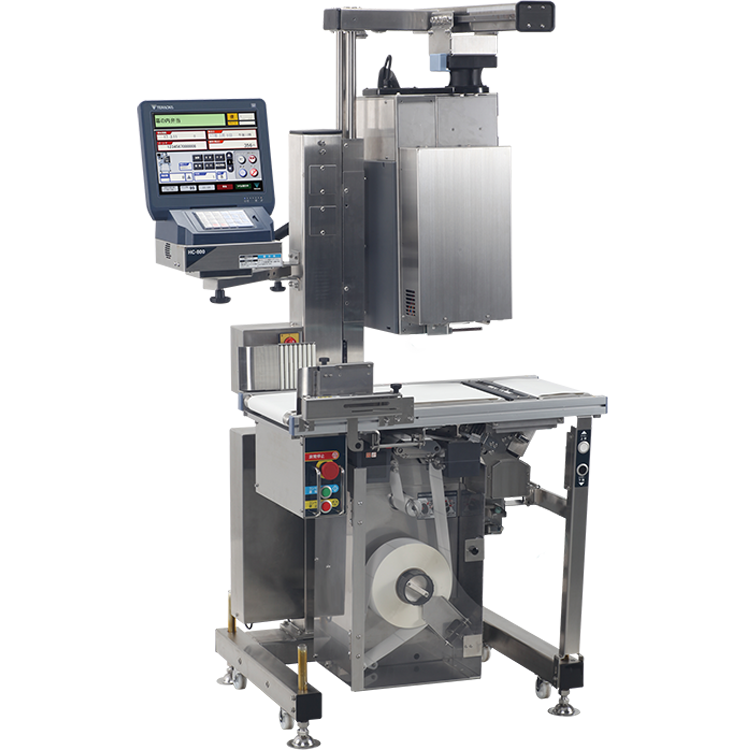

HC-800
The latest model in the industry's top-selling lineup of automatic thermal labelers for food processing lines
Afmetingen
Labeler Cassette type | Cassette type | Non-cassette type | ||
---|---|---|---|---|
Printing method | Thermal printing (300 dpi) | |||
Label print speed | Max. 200 mm/sec | Max. 300 mm/sec | ||
Package size | Width | 50 to 240 mm | ||
Length (Upper Applicator) | 50 to 240 mm | |||
Length (Bottom Applicator) | 70 to 350 mm | |||
Height | 15 to 190 mm | |||
Label size | Upper Applicator *Non-cassette type Rotary applicator |
Width | 40 to 80 mm | |
Length | 28 to 100 mm | |||
Upper Applicator Rotary applicator |
Width | 40 to 80 mm | ||
Length | 28 to 100 mm | |||
Bottom Applicator Non-cassette type |
Width | 40 to 80 mm | ||
Length | 28 to 130 mm | |||
Dimensions of main unit | Width | 750 mm | ||
Length | 680 mm | |||
Height | Max. 1824 mm | Max. 1870 mm | ||
Conveyor Height | 800 mm ±50 mm | |||
Direction of product flow | Right flow or Left flow | |||
Power supply | 100V Single phase | |||
Power consumption | 260 W | 390 W | ||
Conveyor speed (m/min.) | 5.5 to 50 (Variable) | |||
Air consumption | Upper Applicator | Max. 1.61 ℓ/sheet | ||
Bottom Applicator | Max. 2.36 ℓ/sheet | |||
Weight of main unit | 130 kg | 150 kg | ||
Operating temperature | 5℃ to 35℃ (without condensation) |
