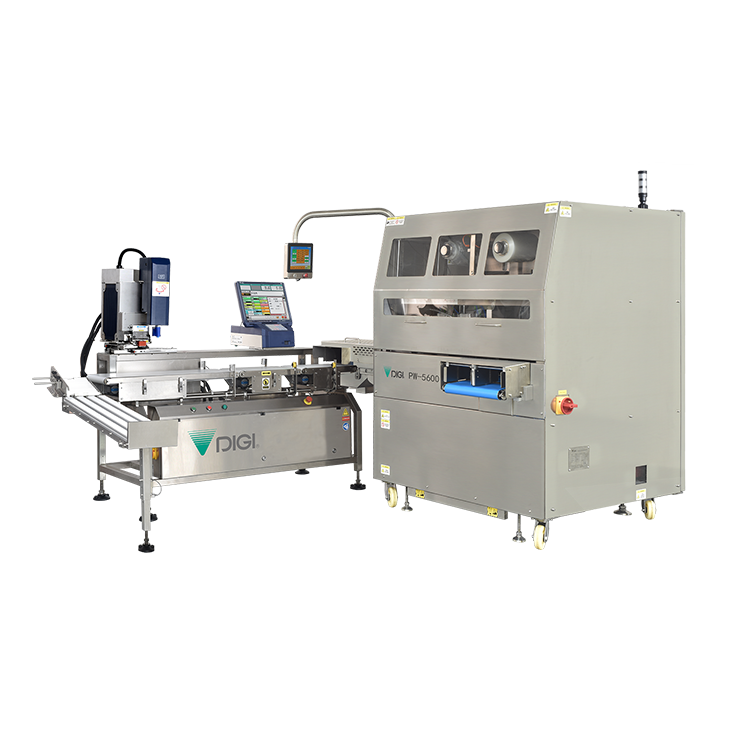

PW-5600LL
MAP/skin packaging machine with integrated
automatic weigh-labeler
Afmetingen
*Front View
*Side View
*Top View
Packing
| Packaging option | MAP, VSP, Sealing |
|---|---|
| Function | Front infeed, left or right outfeed |
| Vacuum pump | 100m3/h, Oxygen pump |
| Compressor | External |
| Power supply | 380V/200V 3 phase |
| Power consumption | 8kW |
| Gas consumption | 0.5m³/min |
| Air consumption | 1m³/min |
| Gas tank volume | 0.185m³ |
| Gas flush option | 3 (N2, CO2, O2) |
| Film width | 305mm |
| Molds size (LxW) and arrangement | 15 cm x 23 cm: 2*1=2 18 cm x 25 cm: 2*1=2 21 cmx 30 cm: 1*1=1 |

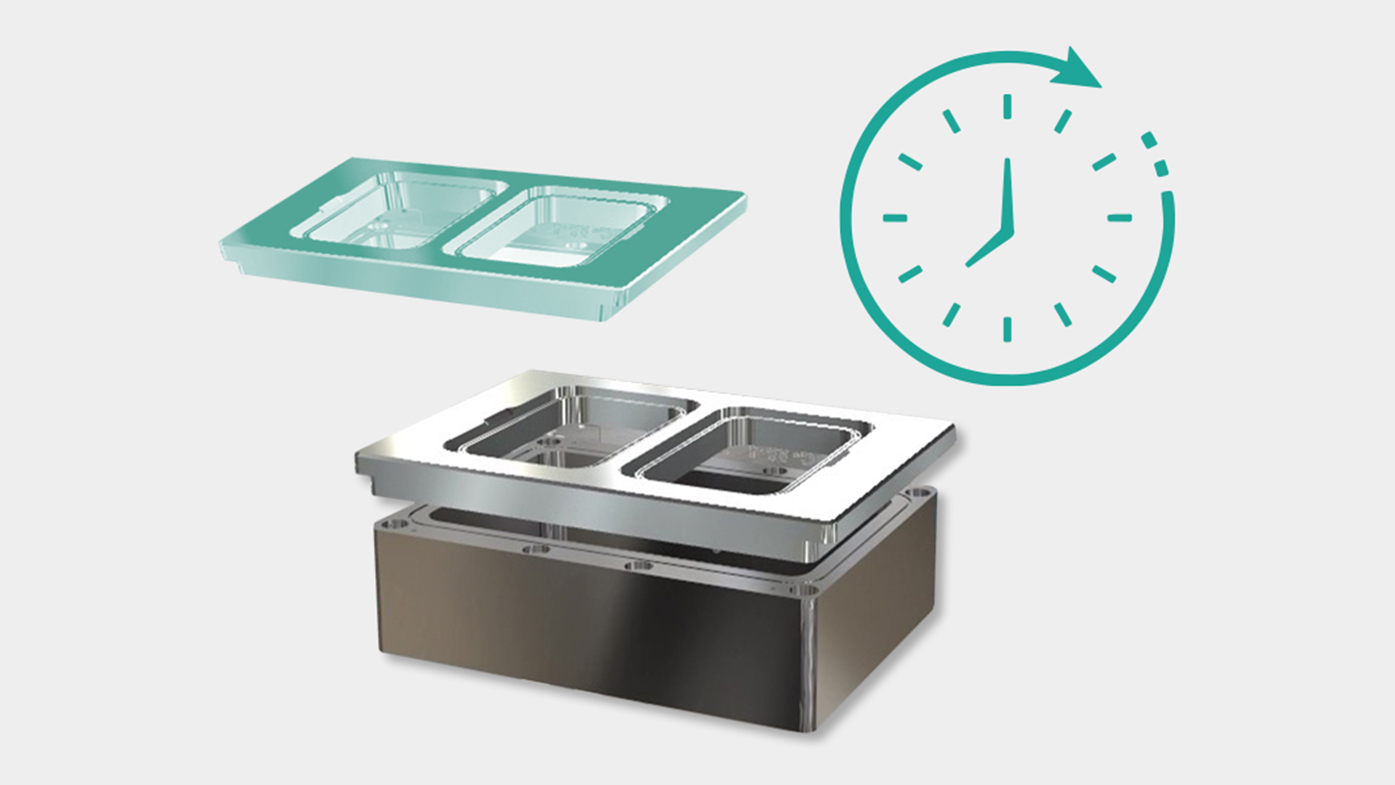

| Molds changeover | Semi-automatic |
| Tray materials | PSE, PP |
| Film | Unprinted film, Printed film |
| Diameter of film roll | max. 300mm |
| Machine weight (kg) | 1100kg |

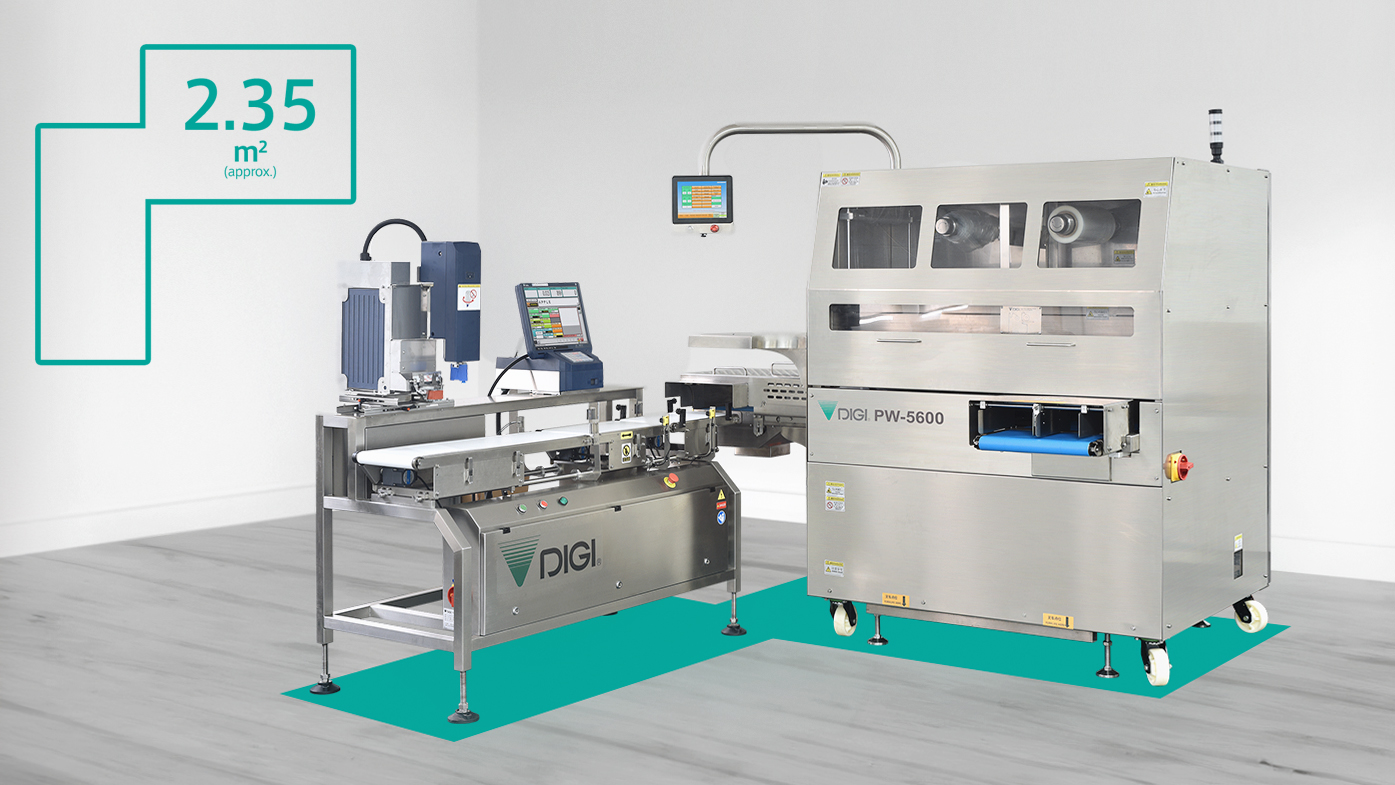

| Machine size (L mm x W mm x H mm) | 1960 x 2217 x 1742 |
| Cycles / min MAP | 5~6 |
| Cycles / min SKIN | 5~6 |
| Cycles / min SEAL ONLY | 10 |

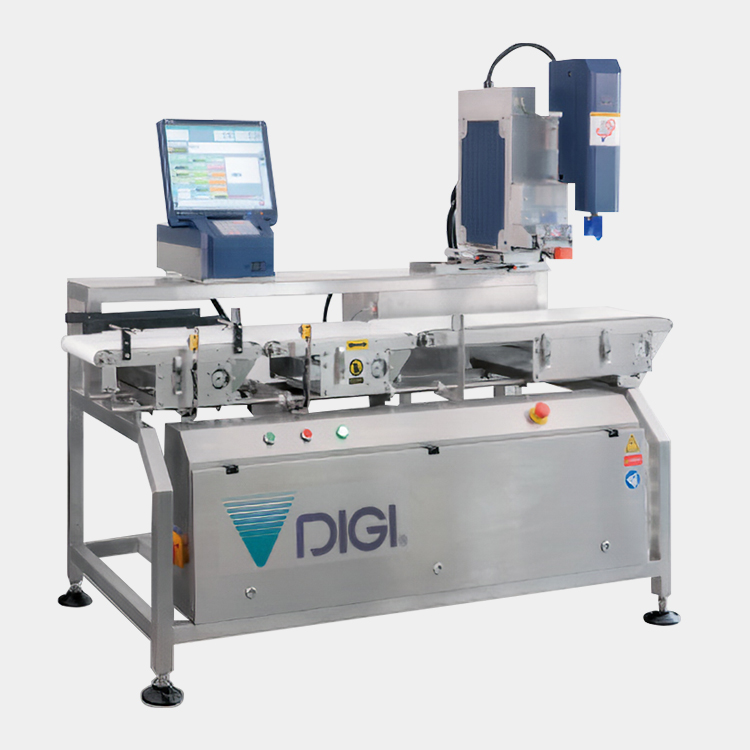

Weighing & Labeling
| Label type | Linerless | ||
|---|---|---|---|
| Label size | Automatic application | Width | 44-78mm / 1.73-3.07inches |
| Length | 28-105mm / 1.10-4.13inches | ||
| Manual application | Width | 44-78mm / 1.73-3.07inches | |
| Length | 20-500mm / 0.79-19.69inches* *max. length 300mm / 11.8inches |
||
| Labeling angle | 0 or 90 or 180 or 270 degrees | ||
| Dot density | 12dot / mm (300dpi) | ||
| Font | True type font | ||
| Speed | Max. 35 packages / min | ||
| Display panel | TFT LCD color 15" touch panel | ||
| Memory for programmable files | 32GB | ||
| Weighing | Range 0～3000g | ||
| Interval | 1g | ||
| Conveyor height | 800mm±50mm | ||
| Outfeed conveyor length | 800mm | ||
| Weighing conveyor length | 400mm | ||
| Belt width | 250mm | ||
| Power consumption | 660W | ||
| Power supply | AC220V/110V 50/60Hz | ||
