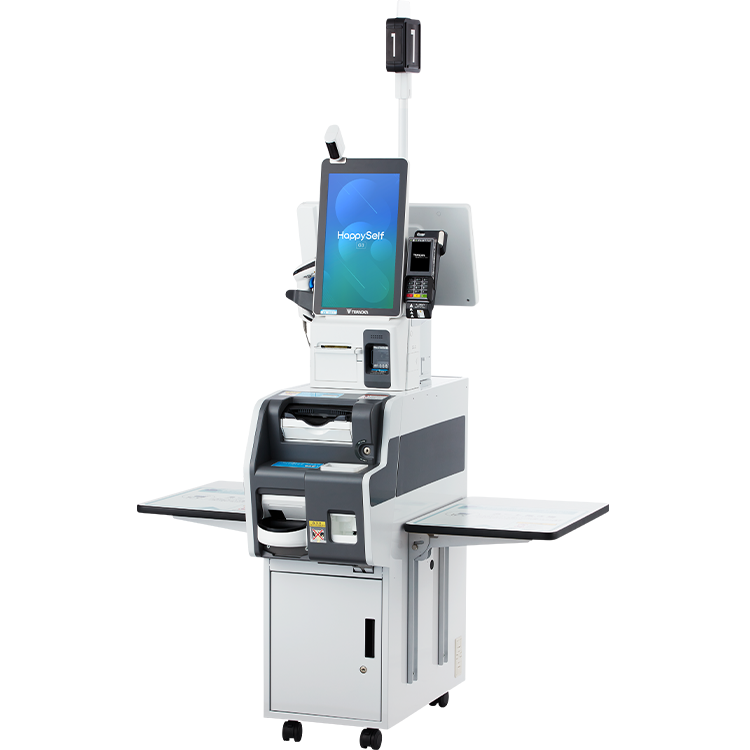

HappySelf (G3)

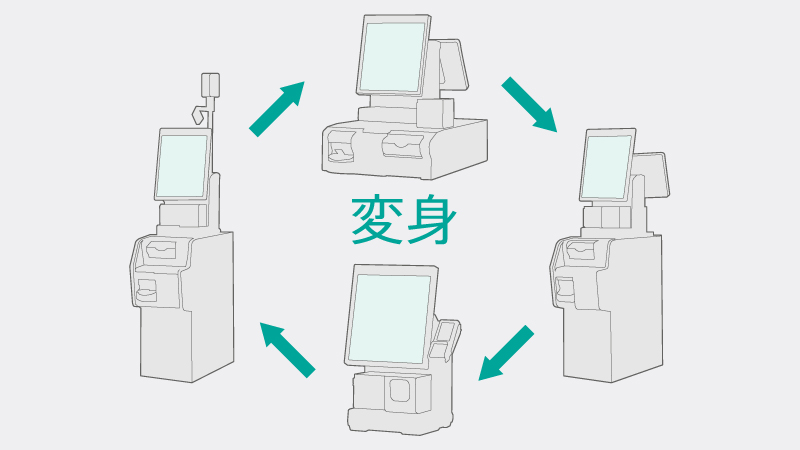

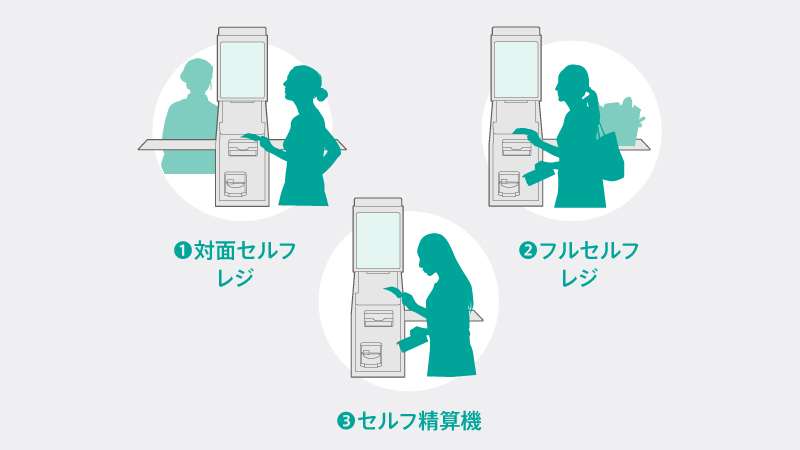

Semi-self checkout, full-self checkout, and self-payment functionality in one versatile unit. Multi-mode self checkout with enhanced flexibility.
| HappySelf（G3） | Option selection | ||
|---|---|---|---|
| Control unit | OS | Linux | - |
| Main storage | SSD: 32GB or more HDD: 500GB or more |
- | |
| Interface | USB2.0 port | Side (left) x 6 Side (right) x 1 | - |
| Serial port | RS-232C x 4 | ||
| Scanner port | RS-232C × 1 | ||
| LAN | 1000/100/10BASE-TX × 1 | ||
| For drawer | 24V × 1 (6-pin) | ||
| Operator display | Color LCD Touch panel | 15" TFT color LCD | ◯ |
| Keyboard | Mechanical keys | 52 keys | ◯ |
| Customer display | Color LCD Touch panel | 15.6" TFT color LCD | - |
| Receipt printer | Printing method | Thermal printing | - |
| Printing speed | Up to 250 mm/sec | ||
| Paper width | 58 mm | ||
| Paper exchange | Drop-in system | ||
| Magnetic card reader | Slide type | JIS-I/JIS-II compatible | ◯ |
| Automatic change machine | Fuji Electric | ECS-777 | ◯ |
| Power supply unit | Main power supply | AC100V±10％ 50/60Hz | - |
| UPS | Built-in UPS (for power failure shutdown) | ||
| Power consumption | When connected to an automatic change ticket machine | Maximum 210 W | - |
| No automatic change ticket machine connection | Maximum 100 W | ||
