Main Features

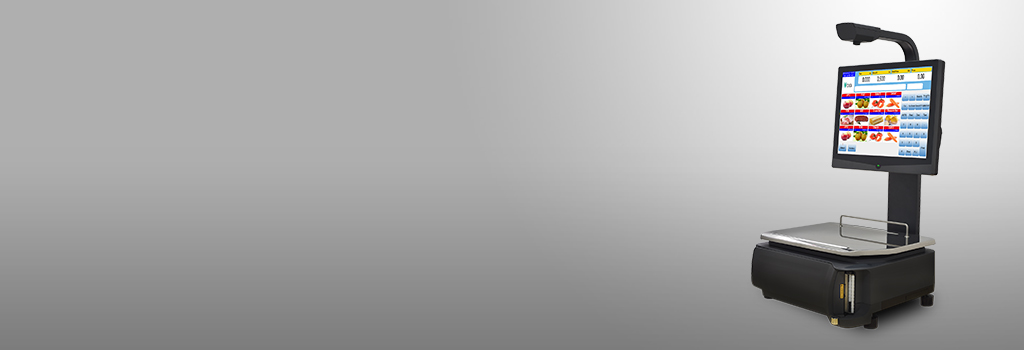

RM-5800BS AI is a compact and user-friendly self-service scale AI scale that can be easily deployed in various retail settings to deliver efficient and intelligent operation for both loose and bagged items ensuring a frictionless shopping experience for customers.
Intelligent AI recognition system
High accuracy product identification - Customers don’t need to sort through pages of PLU, reduce shrinkage caused by human error and malicious intent.
High speed performance - With the weighing process taking just mere seconds for each item, shoppers' average transaction time is significantly reduced while increasing throughput at the weighing stations.
Wide compatibility – AI learning for both loose and bagged items. each item can be accurately recognized by the system even with different types of clear and eco grocery bags.
Simple interface for smooth self-service operation
The large, touch-panel multi-media display makes this scale easy for customers to use, ensuring a pleasant shopping experience.
AI Training Infrastructure and Security
AI solutions from DIGI Edge Computing are supported by a lean infrastructure that consists of three key elements: Scales, AI Gateway and AI Cloud.
By combining these features, retailers can accelerate learning with a pre-trained library, making deployment easier.
The scales would capture new products and upload them to the AI Gateway prior to training and storing them in the cloud. They act as a layer of security between the organization's network and DIGI AI cloud. The scale utilizes SFTP and HTTP protocols in addition to FTP and TCPIP. This ensures that the information sent between your scale and back-office software remains secure.
The scale recognition can also be used standalone and does not require a server or cloud connection.
Unified scale management with @Label software.
Easily manage scale data and label time with DIGI's @Label software. This cloud-based service allows you to monitor machine status in a single store or over multiple stores. If a machine drops out of service, an alert is sent immediately, contributing to speedy problem resolution.
Specifications
Dimensions
Basic
Model | RM-5800BS AI | |||
---|---|---|---|---|
Capacity | Single Interval Type 1/6000 | Max 6kg/ 6lb | Max 12kg/ 12lb | Max 30kg/ 30lb |
e= 1 g | e= 2 g | e= 5 g | ||
Multi Interval Type 1/3000 | Max 3/6 kg | Max 6/15 kg | Max 15/30 kg | |
e= 1/2 g | e= 2/5 g | e= 5/10 g | ||
CPU | J1900 2.0 GHz | |||
Memory | 4G DDR3L (UP to 8G) | |||
Storage | 32G SSD (Optional 128G SSD) | |||
OP Display | 15 inches 1024 x 768 pixels TFT LCD |
|||
Touch panel | Resistive Touch panel | |||
Bottom Printer |
- High reliability thermal head printer
- Resolution: 300dpi for cassette type - Printing width: 73mm for cassette type - Paper width: 80mm for cassette type - Printing speed: maximum 110mm/sec - Life span: 1 million pulses/100 km or more paper printing |
|||
Camera |
- Optical size: 1/2.5 inches COMS sensor
- Sensor resolution: 2592(H) x 1944(V) - Unit pixel dimension: 2.0um x 2.0um - Color filter: RGB Bayer patten - Shutter type: Electronic rolling shutter - Maximum frame rate: 30fps@2K - Viewing angle: 62˚ - Focus: 50-150cm |
|||
I/O | 1 x RJ9 Cash Drawer, 1 x RJ45, 1 x RS232, 4 x USB2.0 | |||
Power Source | AC 100V to 264V 50/60Hz |
