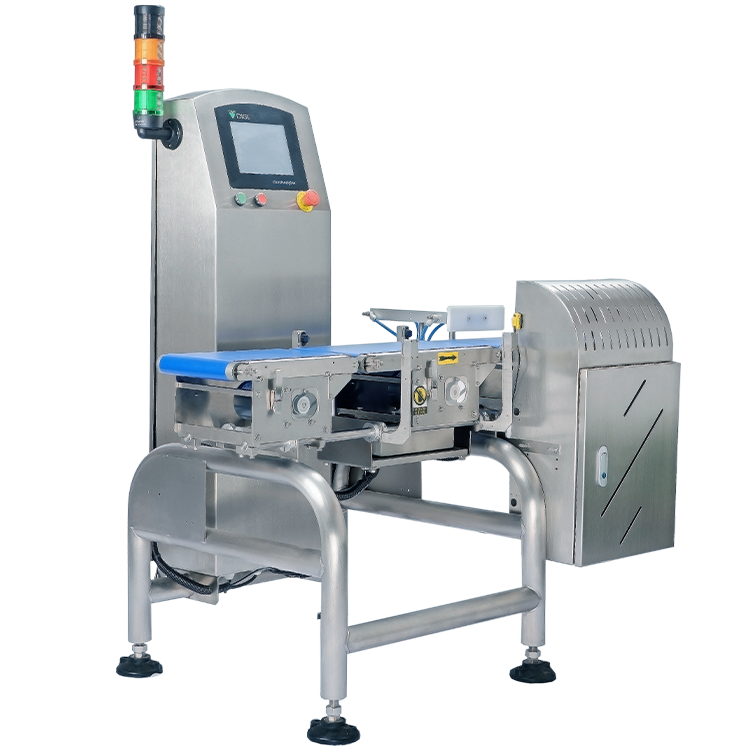

SCG Series
Dynamic weigh checker with high accuracy and speed
Dimensions
| Type | SCG1000 | SCG2000 | SCG3000 |
|---|---|---|---|
| Display | 8.4"LCD | ||
| Max capacity | 1,000 g | 2,000 g | 3,000 g |
| Belt length A-A mm | 200/300 | 300/400 | |
| Belt width B-B mm | 150/200 | 200/250 | |
| Loadcell | 20kg | ||
| Belt convey speed | 60m/min | ||
| Passing rate Max | 180ppm | ||
| Actual scale interval | 0.1g, 0.5g | 0.2g, 0.5g | 0.5g, 1g |
| Power supply | 220VAC, 50HZ | ||
