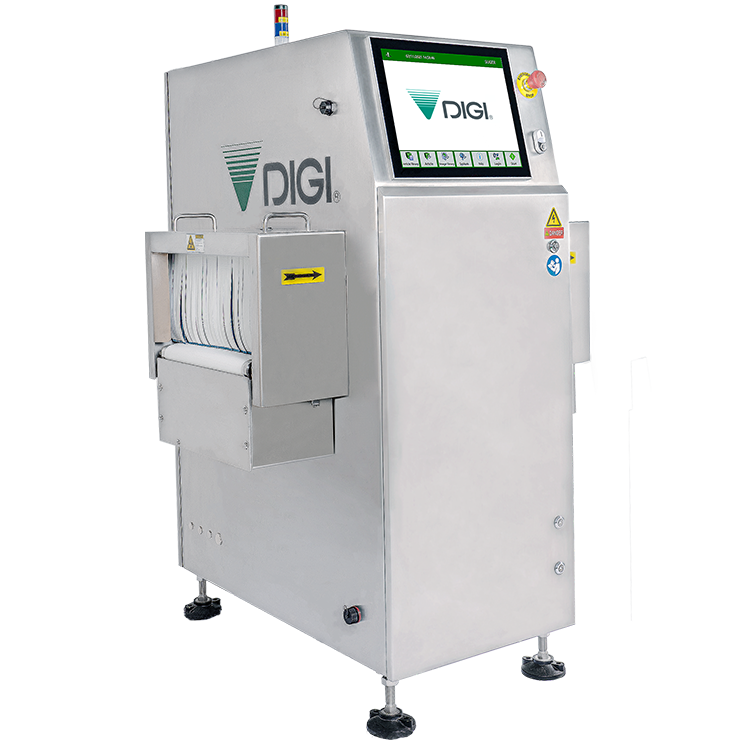

SR Series
High-performance X-ray inspection system
Dimensions
| Feature | SR350 | SR500 |
|---|---|---|
| Conveyor speed | 10-60m/min | 10-30m/min |
| Lane configuration | Single lane | |
| Throughputs | up to 300 pcs/min (depending on size) | |
| Conveyor length (A-A) | 900mm | |
| Conveyor length (B-B) | 350mm | 500mm |
| Max product height | 200mm | 250mm |
| Max load on belt | 10g | 25g |
| X-Ray generator | max 150w, up to 85kv, glass tube | max 210w, up to 85kv, glass tube |
| X-Ray beam | Single vertical beam | |
| X-Ray leakage | <1 uSv/hr | |
| Cooling method | Air Conditioner | |
| Operating humidity | Up to 90% RH | |
| Operating temp. | 0 - 40°C | |
| Power supply | 200 - 240 VAC, 1 phase, 50 - 60 Hz, Max 10 A | |
| Pneumatic supply | Pneumatic supply | |
| Casing material | 304 Stainless Steel | |
| Ingress protection | IP54 Standard or IP65 Optional | |
| System conveyor | FDA and food use approved TPU belt, 90W Oriental motor, 38mm diameter rollers |
FDA and food use approved TPU belt, 25W SEW motor, 50mm diameter rollers |
| Terminal | 15” capacitive touch screen | |
| Contamination handling | Pusher rejecter, Drop down rejecter, Stop on alarm, etc. | |
