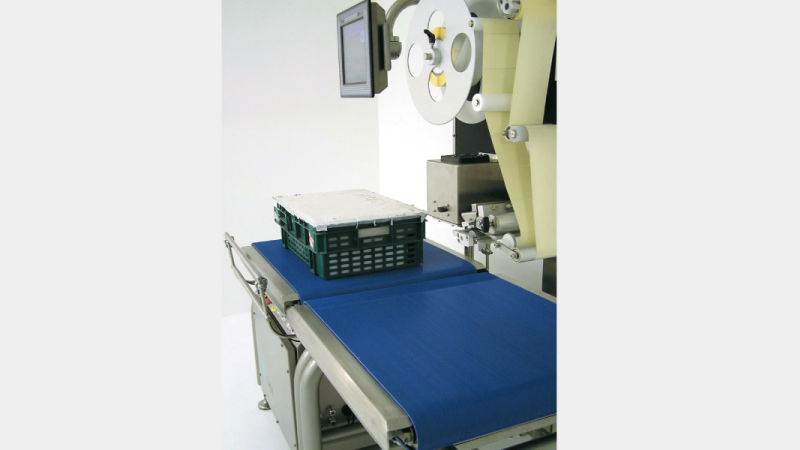

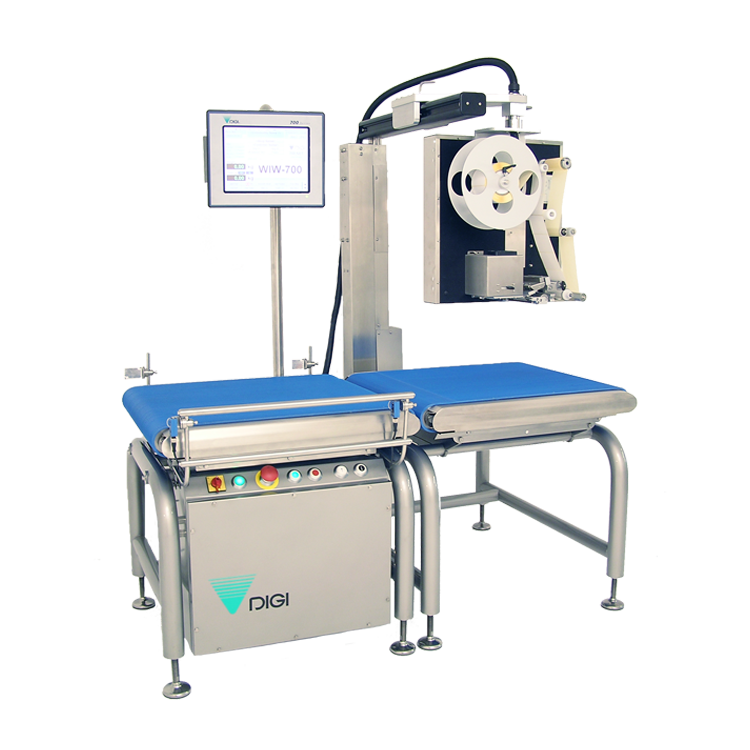

High speed labeler
80mm or 108mm thermal head both being 11.8dots/mm (300dpi)
Applicators - touch, air box,
Label size - Width: 30 to 120 mm
Height: 28 to 150mm
Label roll - Roll diameter 300mm
Core diameter 76mm
Outside or inside wound
Print speed - 50 to 260mm/sec
Near edge printing
When the high speed labeler is used the outfeed conveyor is increased in length to 992mm
Applicators - touch, air box,
Label size - Width: 30 to 120 mm
Height: 28 to 150mm
Label roll - Roll diameter 300mm
Core diameter 76mm
Outside or inside wound
Print speed - 50 to 260mm/sec
Near edge printing
When the high speed labeler is used the outfeed conveyor is increased in length to 992mm
Optional infeed conveyor
Thermal heads
Additional printers
Leading-edge (front) applicator
The leading-edge applicator applies label to front of case as it moves through the conveyor.
