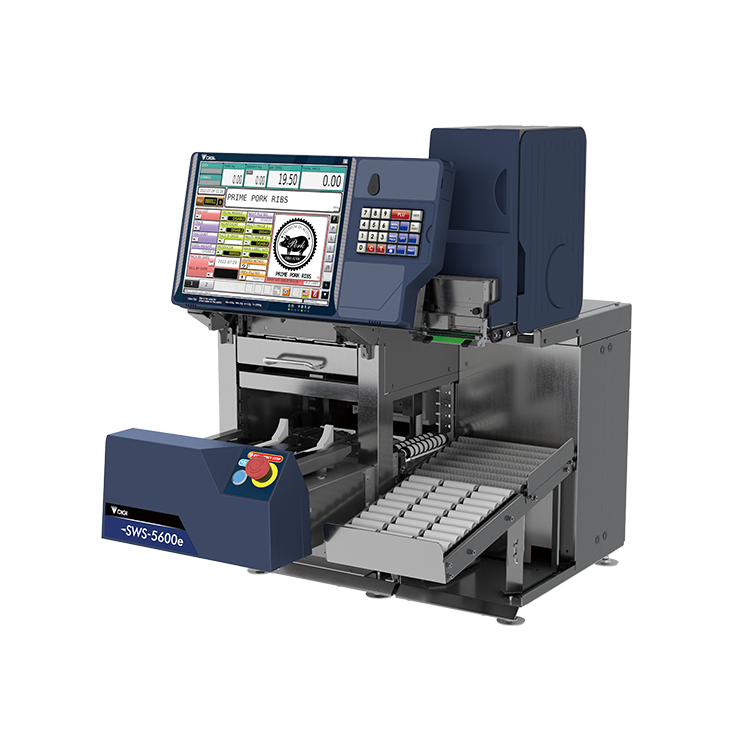

SWS-5600e
A tabletop tray sealer with integrated weigh-seal-label functionality
Dimensions
Packing
Package Size | Width: 240mm (9.4 inches) |
---|---|
Depth: 140mm or 190mm (5.5 or 7.5 inches) | |
Height: 30-80mm (1.2-3.1 inches) | |
Packing Speed |
Max. 10 packages/min
|
Number of Film Rolls | 1 roll |
Film Width | 250mm (9.8 inches) |
Weighing
Interval Type | Multi Interval | Single Interval |
---|---|---|
Capacity |
Max. 3/6kg
|
Max. 30 lbs |
Scale Interval | e=1/2g | e=0.01 lbs |
Weighing Range | 20g-6kg | 0.20lb-30 lbs |
Max. Packing Capacity | 50g-1kg | 0.11lb-2.2 lbs |
Thermal Printer
Label Type | Linerless Label |
---|---|
Label Print Width | Max. 44/59mm (1.73/2.3 inches) |
Label Print Length | Max. 300mm (11.8 inches) |
Dot Density | 12 dot/mm (300dpi) |
General

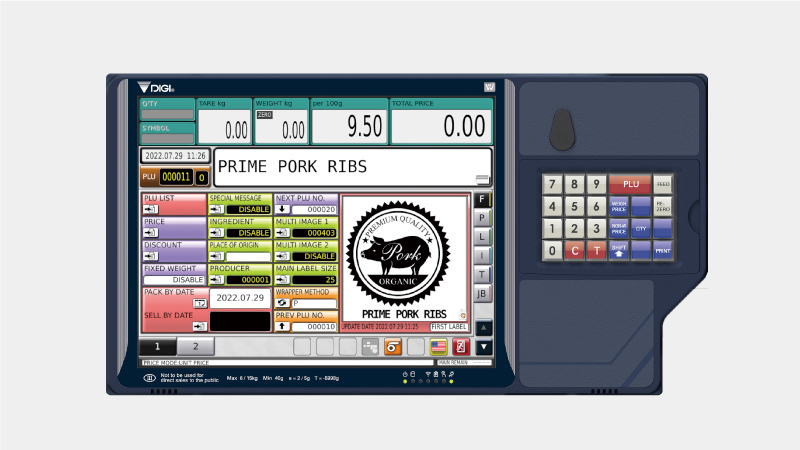

Display Panel | TFT LCD color (15 inches) touch panel |
---|---|
Power Consumption | 220-240V;1φ;50/60Hz;1.0Kw |
Net Weight | 100kg |
Operating Temperature | 10 to 30℃ with no condensation |
Operating Humidity | 80% RH (Max.) with no condensation |
