Note: This product is no longer being sold. Please consult with your local contact regarding maintenance of this model or replacement models.


Fully integrated weigh-wrap-label system designed for operational comfort and environmental friendliness



Main Features

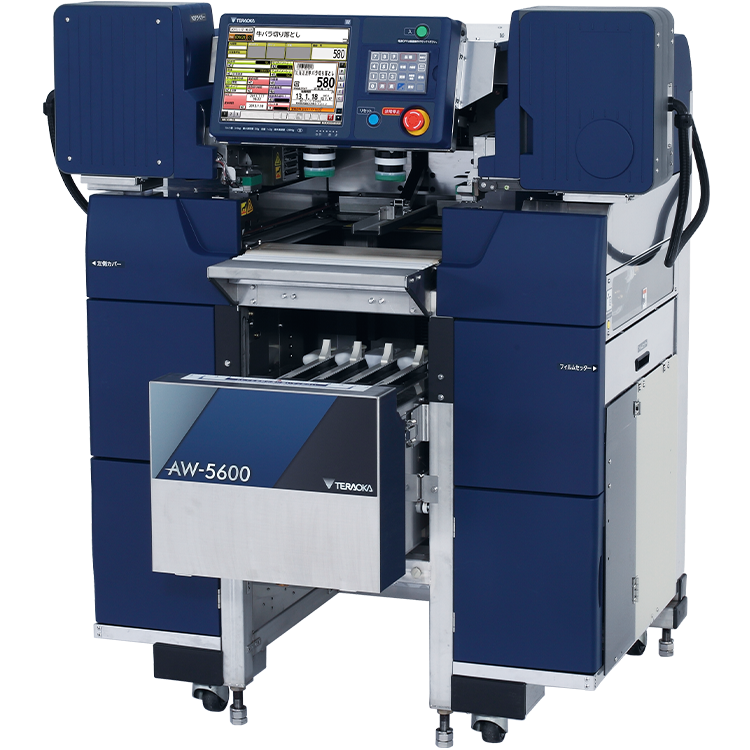

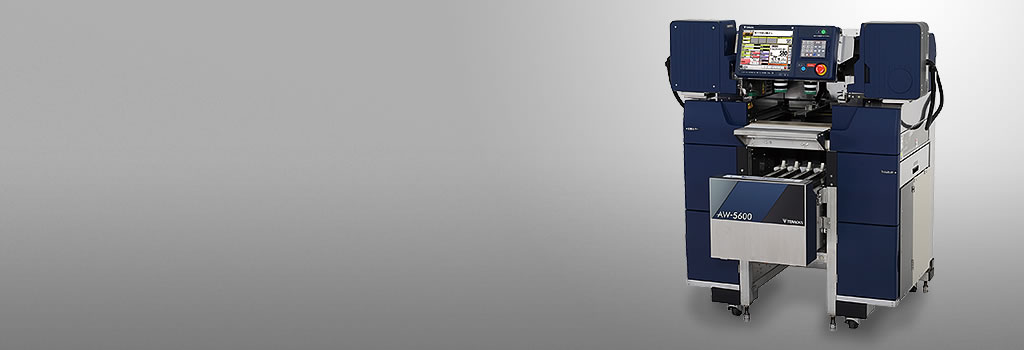

AW-5600AT is a high-performance automatic weigh-wrap-label system designed for operational comfort and environmental friendliness. Reduces work load with easy and simplified operation, and conserves film and label consumption to achieve lower cost and a smaller environmental footprint.

All-in-one Wrapping Solution

With the AW-5600AT, you can weigh, wrap, and label all with a single machine and one operator.
The operation itself is a cinch.
Please enjoy the following video to learn about the concept and benefits of this solution.


High productivity

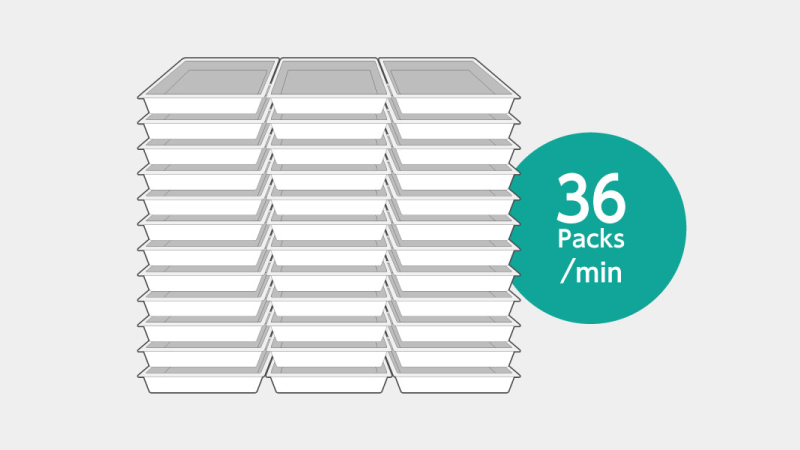

Increases productivity with high speed processing of up to 36 packages a minute, reduced need for film replacement, and a larger operation panel. Label content can be checked on the display at any time, helping to prevent labeling errors. Automatically determines the optimum wrapping conditions for commodity sizes fed into the machine.


Economical & Ecological

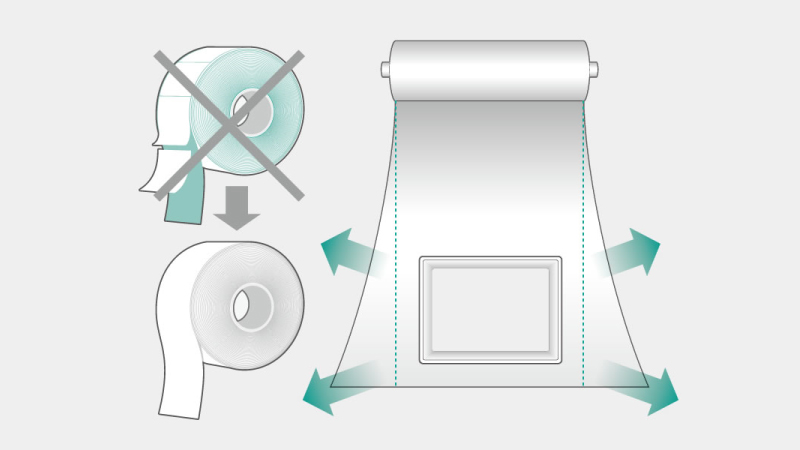

Super-stretch technology makes the best use of film and helps reduce film usage, while linerless labels eliminate wasteful margins and help reduce label consumption. An energy conservation mode helps reduce power consumption while the machine is not operating. These features provide both economy and a smaller ecological footprint.


Effective presentation by various labels

Flexible label design without restriction to a single label size enables you to highlight not only common product information, but also product characteristics and freshness. Printing information such as recipe tips for consumers enhances promotional value. Shelf labels help improve productivity, while wrap-around labels deliver an impression of quality.  Linerless labels can be applied by all labelers, including the bottom labeler.

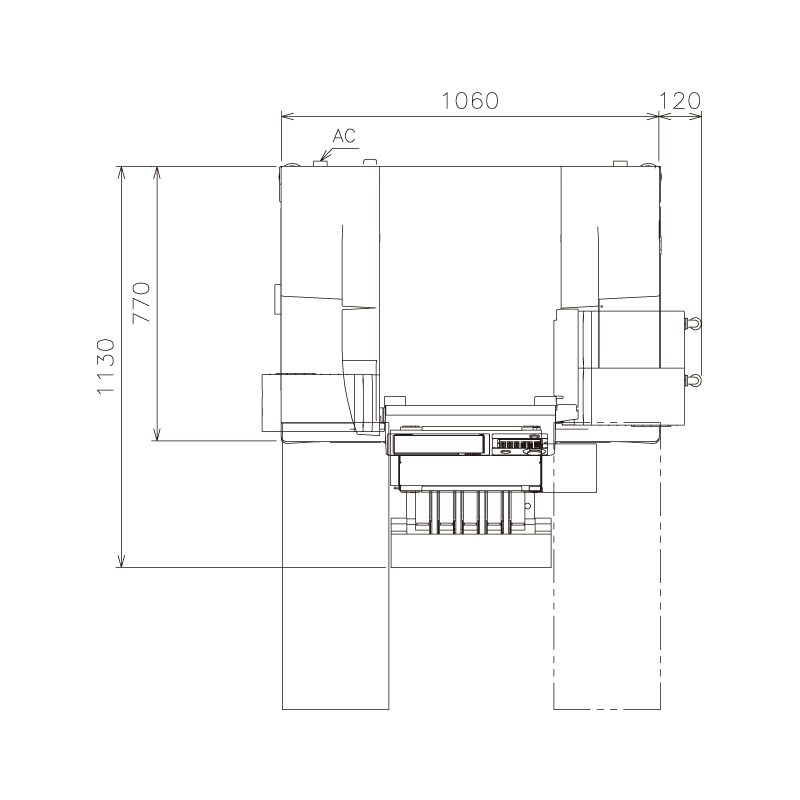

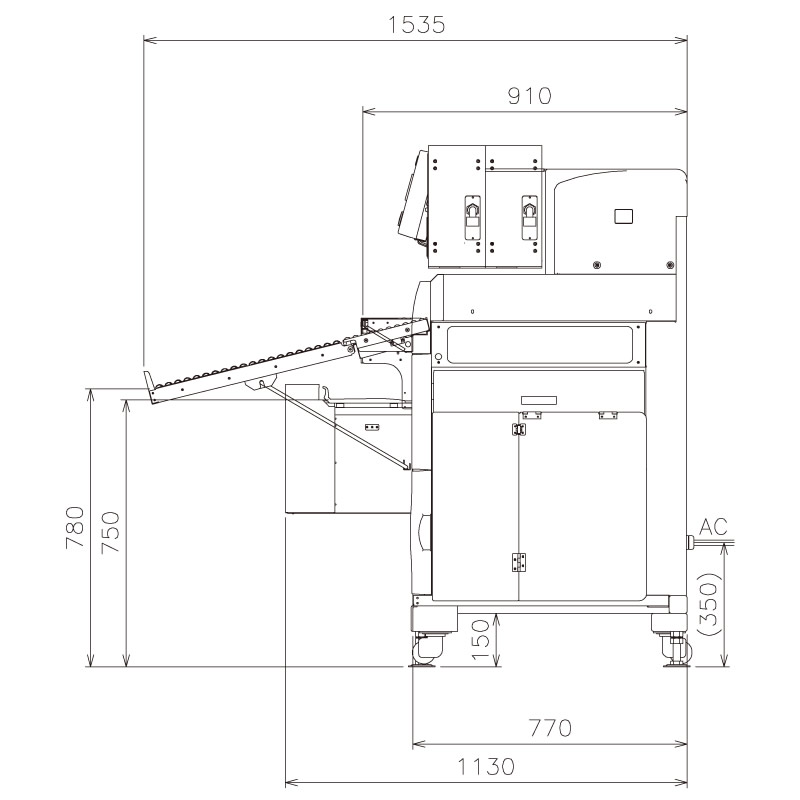

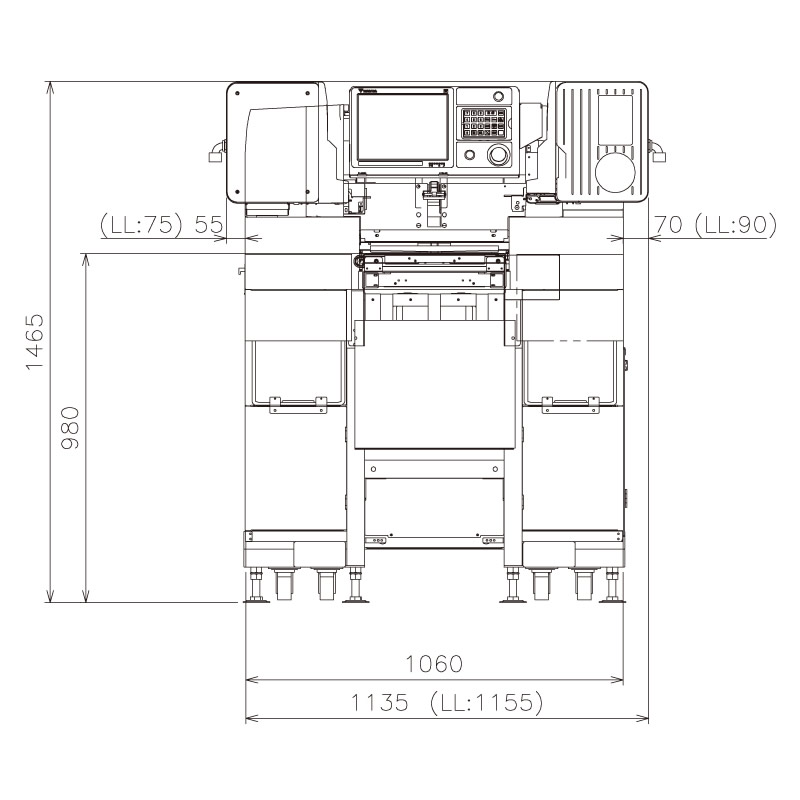

  • AW-5600LL-WP05-1
  • AW-5600LL-WP05-2
  • AW-5600LL-WP05-3


Wrapping Speed Max. 36 packages/min.
Package Size Width: 130 to 380mm  /  Height :  10 to 150mm  /  Depth :  80 to 260mm

The maximum combination of the above dimension is not available and the
available package size depends on the film width.
Film Roll Capacity One
Film Size Accepts 260 to 400mm rolls


Multi interval Single inerval
Capacity Max. 6/15kg Max. 3/6kg Max. 30 lb
Scale Inerval e=2/5g e=1/2g e=0.01 lb


Label Type Thermal paper
Labeling Application Automatic
Label Size Width: 40 to 80mm
Net Weight 400kg
Single labeler type




Model with pack accumulator


This model is equipped with a pack accumulator to accommodate trays after wrapping and labeling.

Model with promotional labeler


In additional to product labels, this model is equipped with a labeler for promotional labels. The machine can automatically apply both product labels and promotional labels simultaneously.
