Note: This product is no longer being sold. Please consult with your local contact regarding maintenance of this model or replacement models.

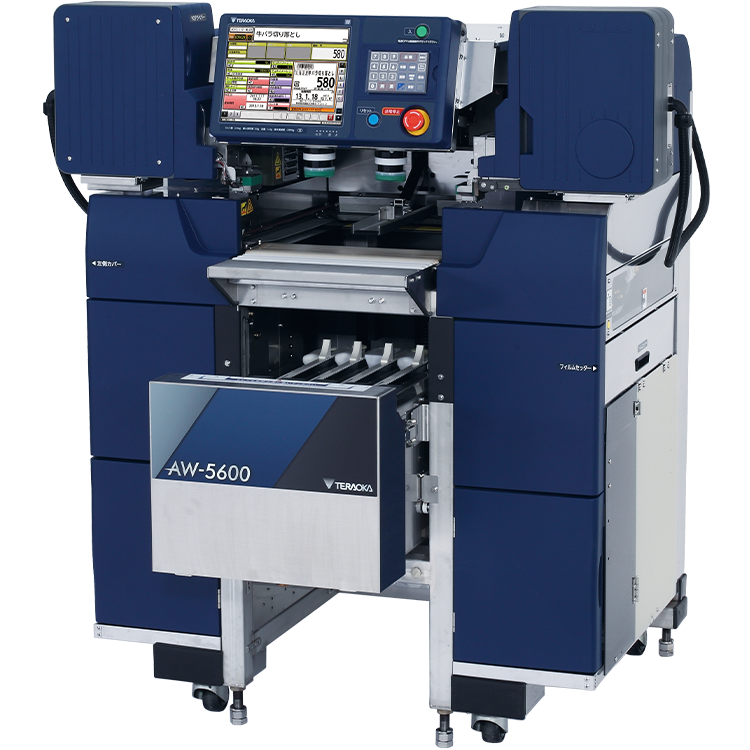

AW-5600AT
Fully integrated weigh-wrap-label system designed for operational comfort and environmental friendliness
Dimensions
Wrapping

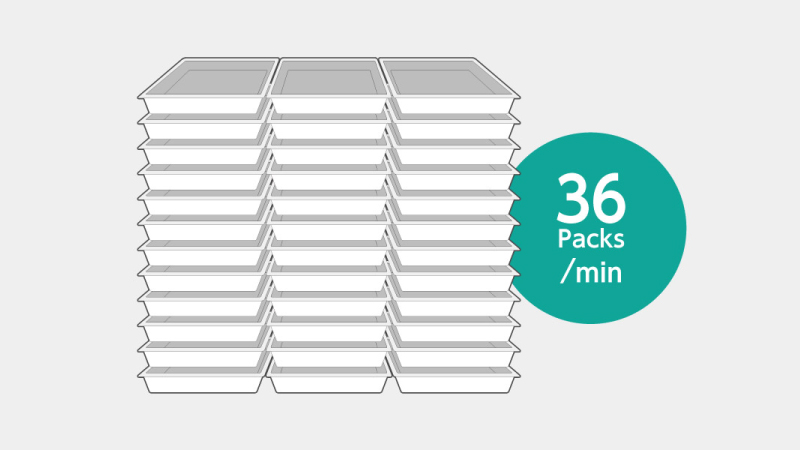

| Wrapping Speed | Max. 36 packages/min. |
|---|---|
| Package Size | Width: 130 to 380mm / Height : 10 to 150mm / Depth : 80 to 260mm The maximum combination of the above dimension is not available and the available package size depends on the film width. |
| Film Roll Capacity | One |

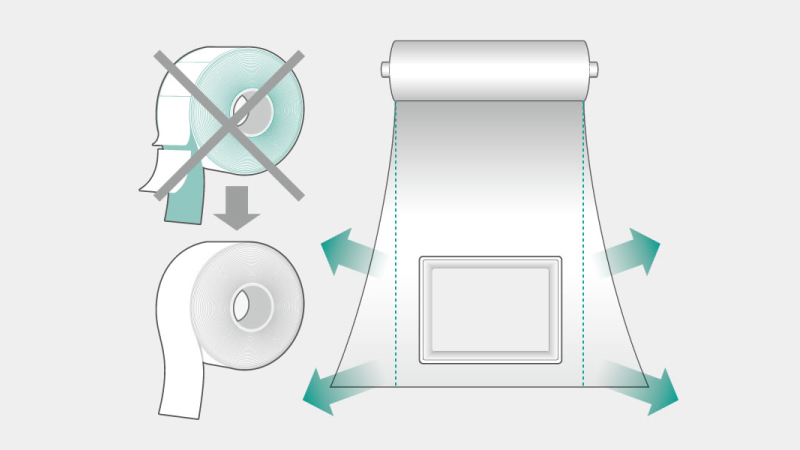

| Film Size | Accepts 260 to 400mm rolls |
Weighing
| Multi interval | Single inerval | |||
| Capacity | Max. 6/15kg | Max. 3/6kg | Max. 30 lb | |
| Scale Inerval | e=2/5g | e=1/2g | e=0.01 lb | |
Labeling
| Label Type | Thermal paper | |
|---|---|---|
| Labeling Application | Automatic | |
| Label Size | Width: 40 to 80mm | |
| Net Weight | 400kg Single labeler type |
|
|---|---|---|
