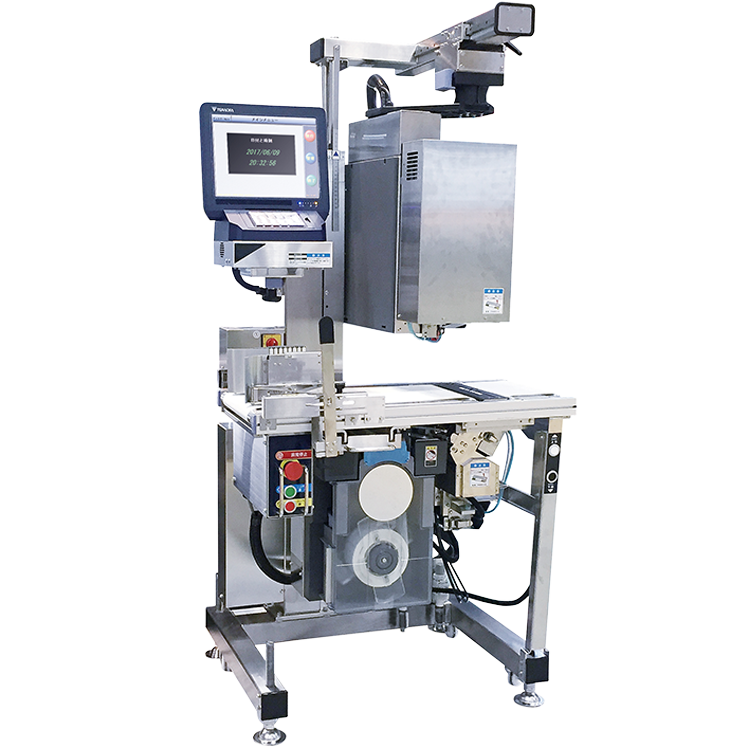

AP-800

A state-of-the-art general purpose automatic thermal labeler that handles a wide variety of label formats

Dimensions

Label Applicator type			U	UB	B
Printing method			Thermal printing (300dpi)
Label print speed			Max. 200 mm/sec.
Package size		Width	50 to 240 mm
		Length	50 to 350mm	70 to 350 mm
		Height	15 to 190 mm
Label size	Upper Applicator *Standard applicator	Width	40 to 80 mm
	Upper Applicator *Standard applicator	Length	28 to 100 mm
	Upper Applicator *Rotary applicator	Width	40 to 80 mm
	Upper Applicator *Rotary applicator	Length	28 to 100 mm
	Bottom Applicator	Width	40 to 80 mm
	Bottom Applicator	Length	28 to 130 mm
Label outer diameter			Max. φ190 mm (Core inner diameter φ76 mm)
Dimensions of main unit	Width		750 mm
	Length	Standard applicator	670 mm		640 mm
	Length	Rotary applicator	680 mm		640 mm
	Height (Min. Height)	Standard applicator	1410 mm		1410 mm
	Height (Min. Height)	Rotary applicator	1550 mm		1410 mm
Conveyor Height			800 mm ± 50 mm
Direction of product flow			Right flow or Left flow
Power supply			100V Single phase
Power consumption			235 W	340 W	185 W
Conveyer speed (m/min.)			5.5 to 50 (Variable)
Air consumption	Upper Applicator		Max 1.61 ℓ/ sheet
Air consumption	Bottom Applicator		Max 2.36 ℓ/ sheet
Weight of main unit			115 kg	135 kg	90 kg
Noise level			Max. 83 dB
Operating temperature			5 ℃ to 35 ℃ (without condensation)
