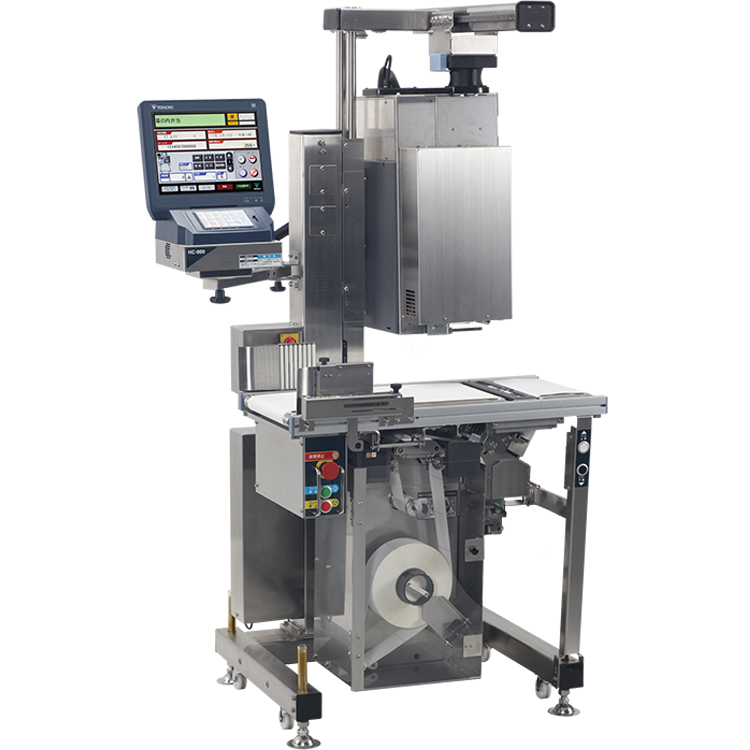

HC-800
The latest model in the industry's top-selling lineup of automatic thermal labelers for food processing lines
Dimensions
| Labeler Cassette type | Cassette type | Non-cassette type | ||
|---|---|---|---|---|
| Printing method | Thermal printing (300 dpi) | |||
| Label print speed | Max. 200 mm/sec | Max. 300 mm/sec | ||
| Package size | Width | 50 to 240 mm | ||
| Length (Upper Applicator) | 50 to 240 mm | |||
| Length (Bottom Applicator) | 70 to 350 mm | |||
| Height | 15 to 190 mm | |||
| Label size | Upper Applicator *Non-cassette type Rotary applicator |
Width | 40 to 80 mm | |
| Length | 28 to 100 mm | |||
| Upper Applicator Rotary applicator |
Width | 40 to 80 mm | ||
| Length | 28 to 100 mm | |||
| Bottom Applicator Non-cassette type |
Width | 40 to 80 mm | ||
| Length | 28 to 130 mm | |||
| Dimensions of main unit | Width | 750 mm | ||
| Length | 680 mm | |||
| Height | Max. 1824 mm | Max. 1870 mm | ||
| Conveyor Height | 800 mm ±50 mm | |||
| Direction of product flow | Right flow or Left flow | |||
| Power supply | 100V Single phase | |||
| Power consumption | 260 W | 390 W | ||
| Conveyor speed (m/min.) | 5.5 to 50 (Variable) | |||
| Air consumption | Upper Applicator | Max. 1.61 ℓ/sheet | ||
| Bottom Applicator | Max. 2.36 ℓ/sheet | |||
| Weight of main unit | 130 kg | 150 kg | ||
| Operating temperature | 5℃ to 35℃ (without condensation) | |||
