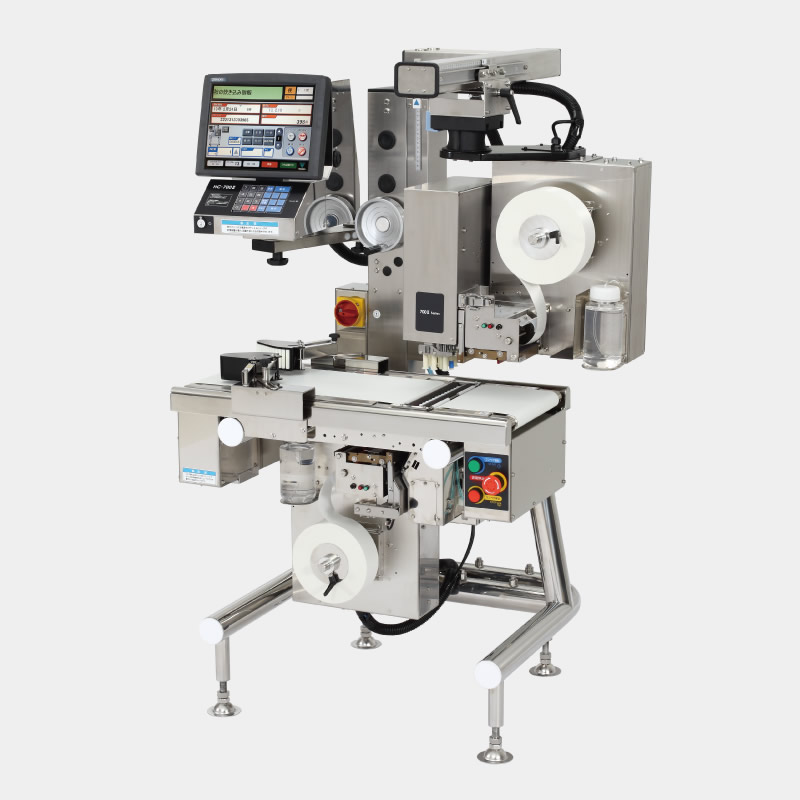

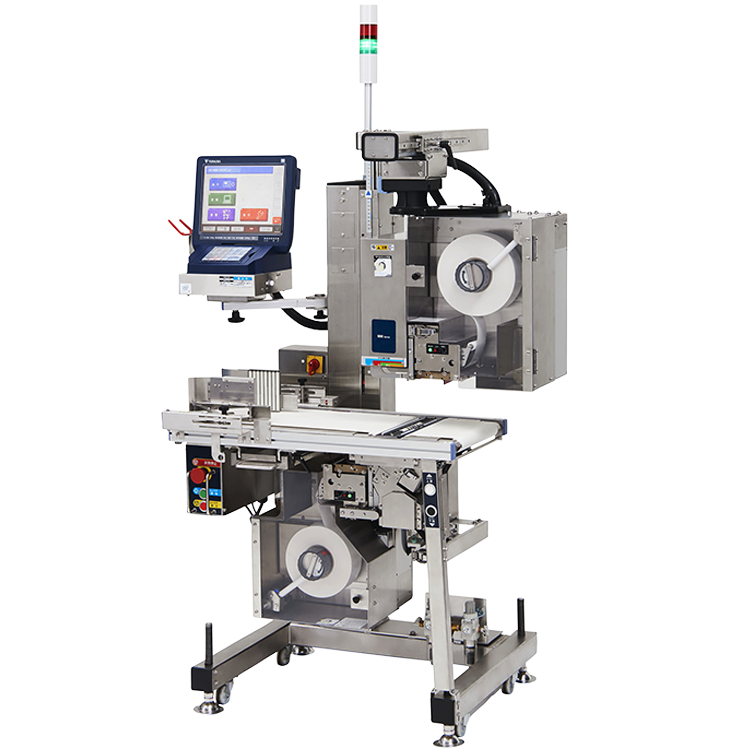

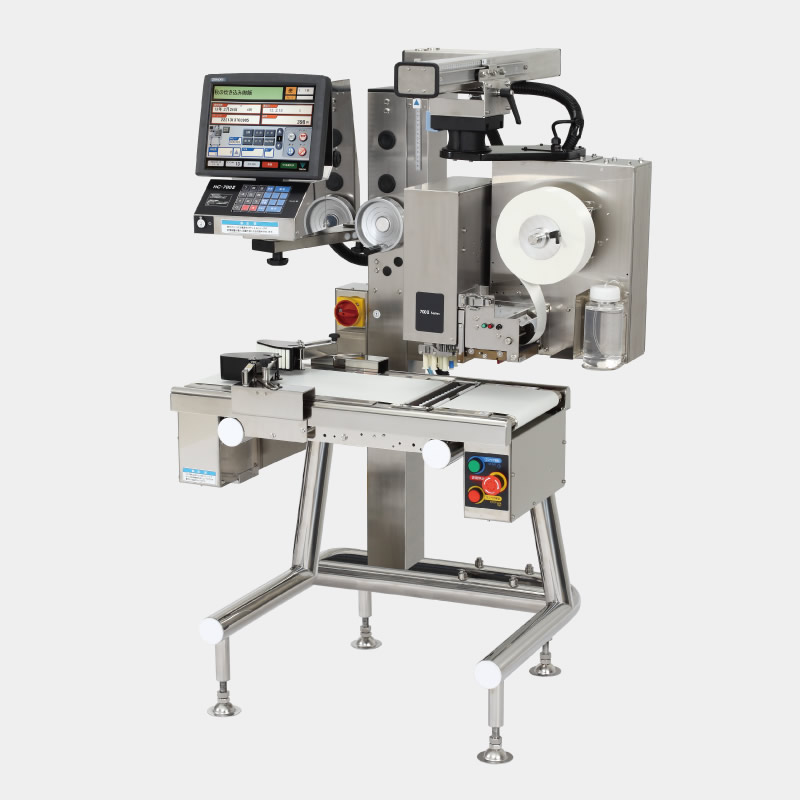

HC-800LL

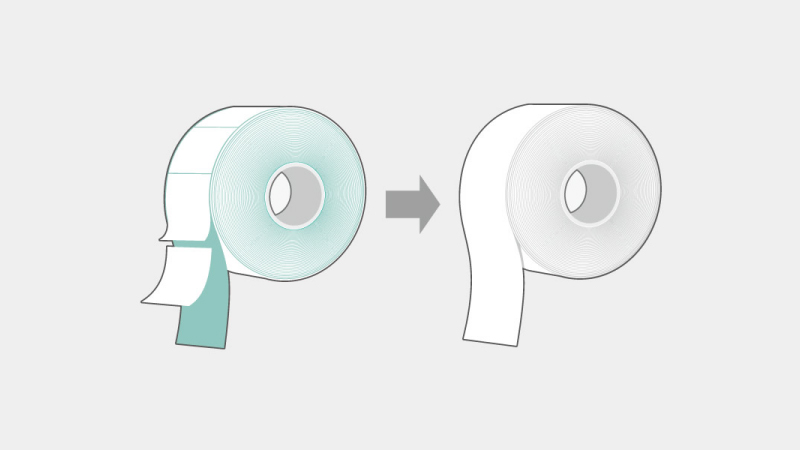

A state-of-the-art thermal labeler that's helping to make linerless labels a new standard in the food manufacturing industry
Package size | Width: 50 to 240 mm | ||
---|---|---|---|
Length: 70 to 350 mm | |||
Height: 15 to 190 mm | |||
Label size | Upper Applicator Standard cylinder |
Width: 59 mm | |
Length: 35 to 130 mm | |||

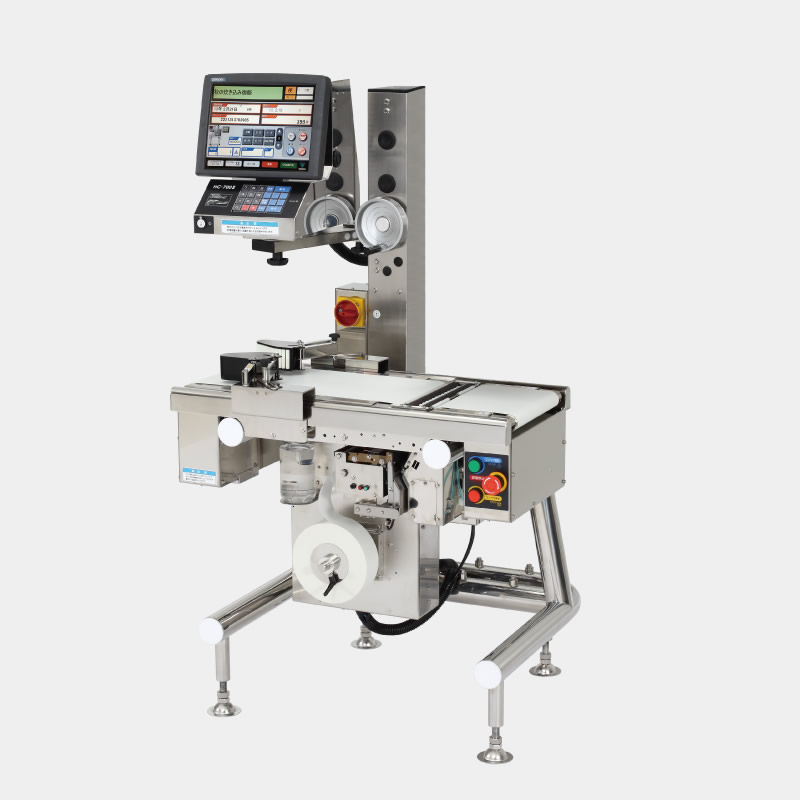

Bottom Applicator | Width: 59 mm | ||
Length: 35 to 130 mm | |||
Power consumption | 330 W (for cassette type UB) | ||
Dimensions of main unit | W 750 x L 714 x H 1,410 mm | ||
Conveyor Height | 800 ± 50 mm | ||
Power supply | 100V Single phase | ||
Air consumption | Upper Applicator: Max. 1.3 ℓ/seet Bottom Applicator: Max. 1.1 ℓ/seet |
