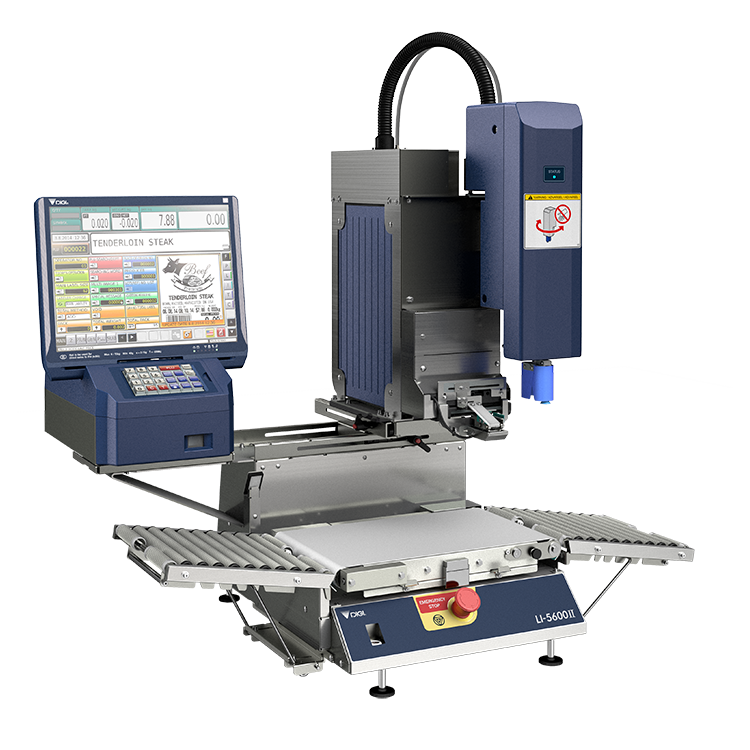

LI-5600II

A convenient and complete solution for a wide range of in-store applications

Dimensions

li5600-2_WP05_01
li5600-2_WP05_02

Conveyor

Model Type A Type B
Speed Max. 26 packages/min. Max. 35 packages/min.
Package Size Width: 50-390 mm/1.9-15.4 inches
Height: 1-150 mm/0.04-5.9 inches
Depth: 50-230 mm/1.9-9.1 inches
Direction Left → Right or Right → Left


Weighing

* Unit varies by country
Interval type Multi-interval Single-interval
Capacity Max 3/6 kg Max 6/15 kg Max 30 lb
Scale interval e=1/2 g e=2/5 g e=0.01 lb
Weighing range 20 g-6 kg 40 g-15 kg 0.20-30 lb
Conveyor capacity Max 6 kg Max 15 kg 30 lb


Thermal printer

* Maximum printing length is 300 mm/11.8 inches
Model Type A and B

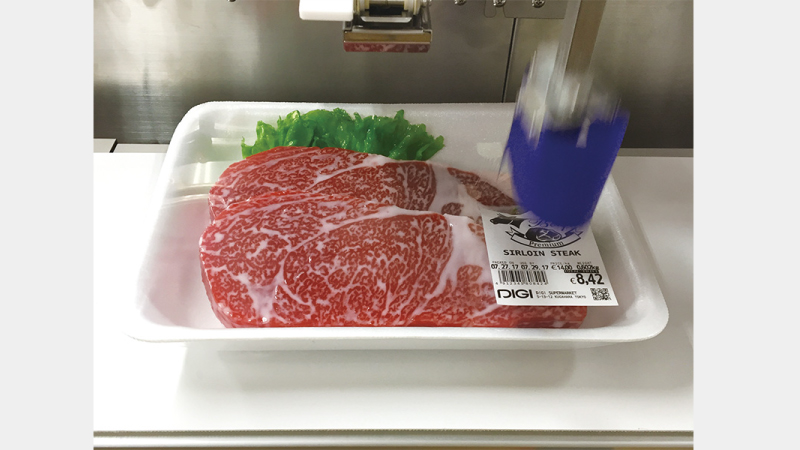

Labeling application Automatic application Manual application
Label type Die-cut Label Linerless Label Die-cut Label Linerless Label
Label size Width: 40-80 mm/
1.57-3.15 inches
Length: 28-105 mm/
1.10-4.13 inches
Width: 44-78 mm/
1.73-3.07 inches
Length: 28-105 mm/
1.10-4.13 inches
Width: 40-80 mm/
1.57-3.15 inches
Length: 20-150 mm/
0.79-5.91 inches
Width: 44-78 mm/
1.73-3.07 inches
Length: 20-500 mm/
0.79-19.69 inches*
* Maximum printing length is 300 mm/11.8 inches
Labeling angle 0 or 90 or 180 or 270 degree
Font True type font


Operation console

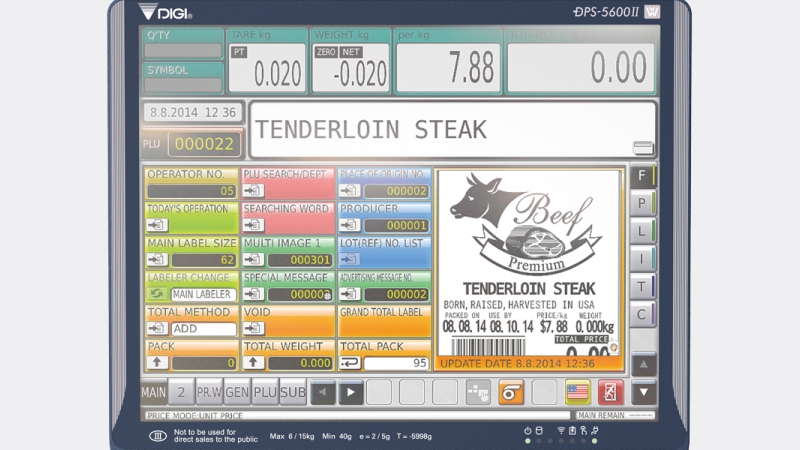

Display panel TFT LCD color (15 inches) touch panel
Memory for programmable files 32 GB


General

Model Type A Type B
Power source and power consumption 230 V;1 φ;50/60 Hz;0.7 A;160 W Scale Conv: 230 V;1 φ;50/60 Hz;0.8 A;160 W
Labelling Conv: 230 V;1 φ;50/60 Hz;0.9A;165 W
Net weight Approx. 59 kg Approx. 112 kg (TWIN + POP labeler type)
