Note: This product is no longer being sold. Please consult with your local contact regarding maintenance of this model or replacement models.

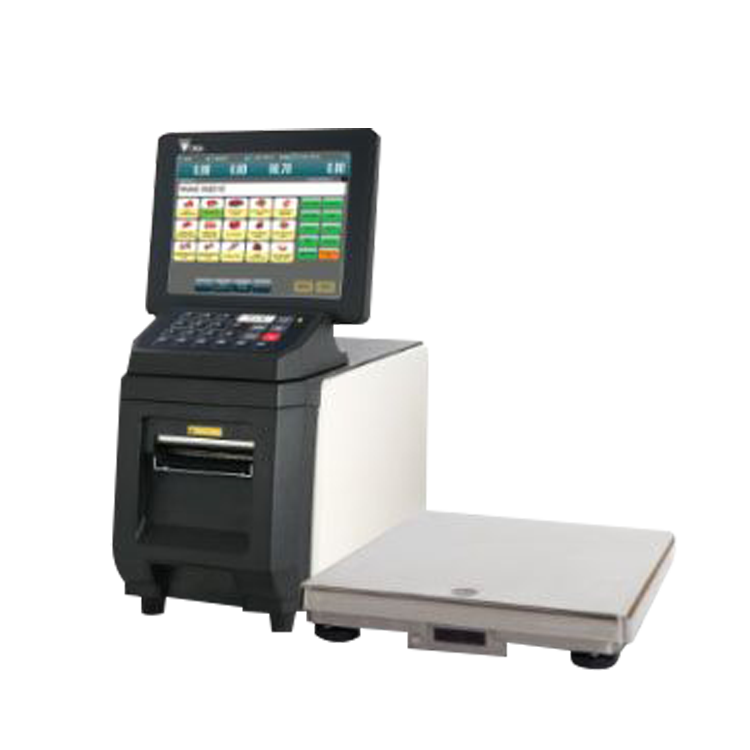

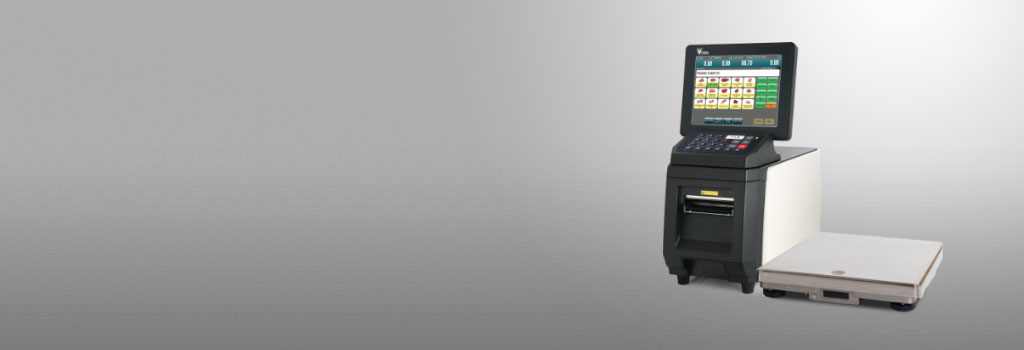

Versatile prepack scale designed for small work spaces



Main Features

The DPS-5000e PC based compact printer offers a versatile printing solution with a space-saving design. With a high speed performance printer, it alleviates prepacking operation to achieve high efficiency without compromising floor space.

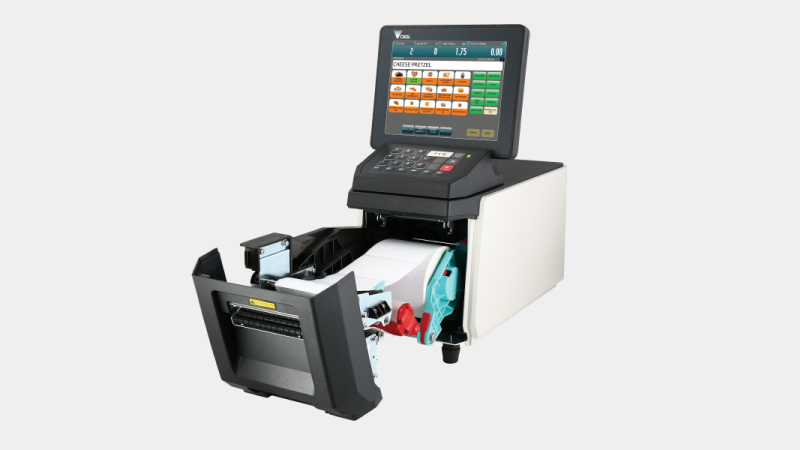

Front Label Loading

The loading mechanism of the DPS-5000 is designed at the front to cater for easier and faster label change. This feature greatly bolsters operation efficiency during the prepacking process.


Flexible Operator Display

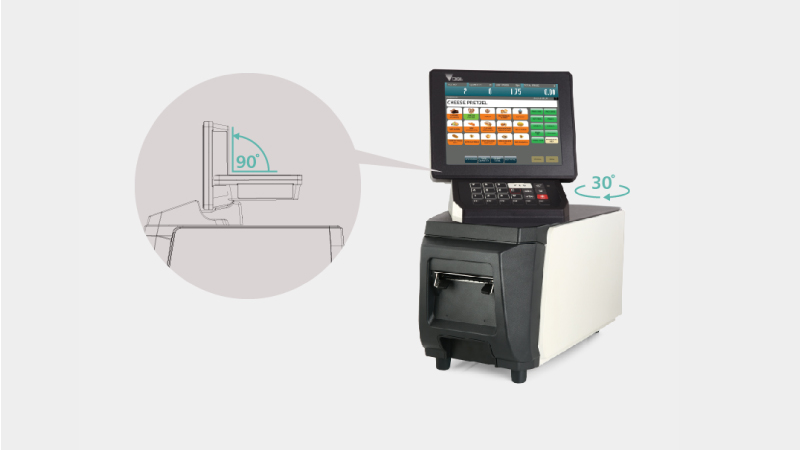

The 8.4" TFT touch screen can be adjusted easily to offer eye-catching details at optimal viewing comfort. The ergonomic user interface comes with a customisable screen layout that further enhances the operation process.


Fast and Efficient Printing

Built for both speed and performance, DPS-5000e delivers high-resolution 300dpi printing with a crisp and appealing presentation for high readability.


Other Features

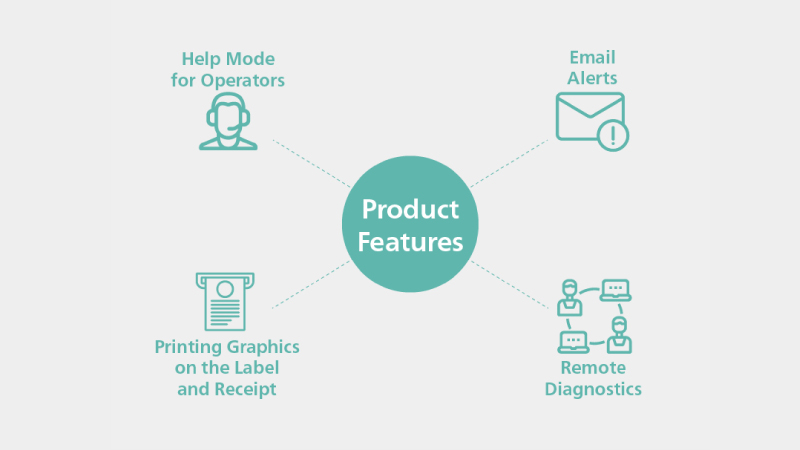

The DPS-5000e also includes notable features like remote diagnostics, email alerts, printing graphics on the label and receipt, and help mode for operators.


External Platform

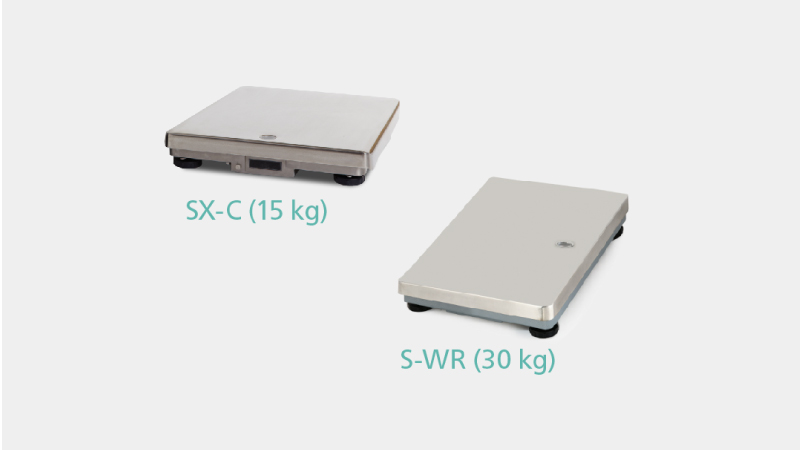

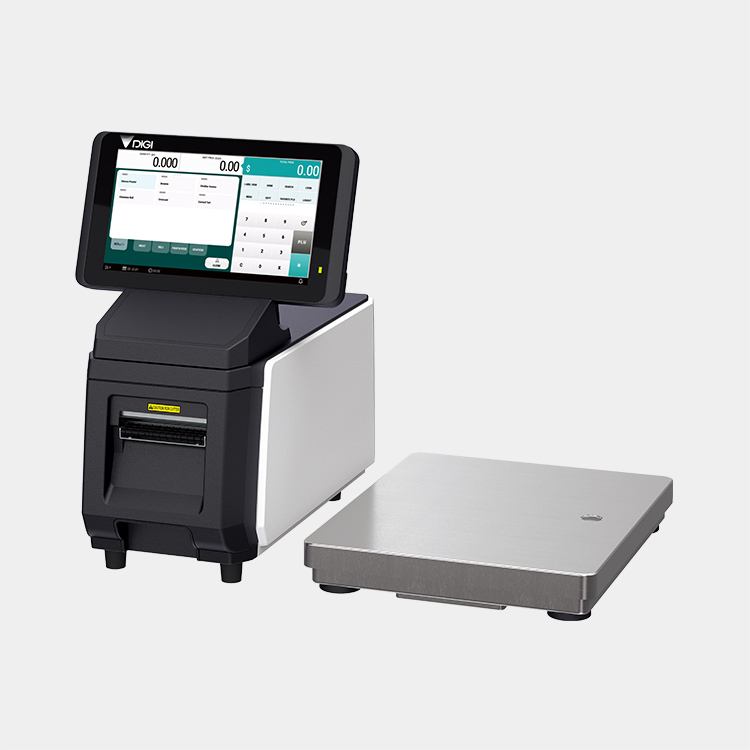

The DPS-5000e can also be linked up with an external SX-C and S-WR platform for operations that require high precision weighing capability.


Electronic Shelf Label (ESL)

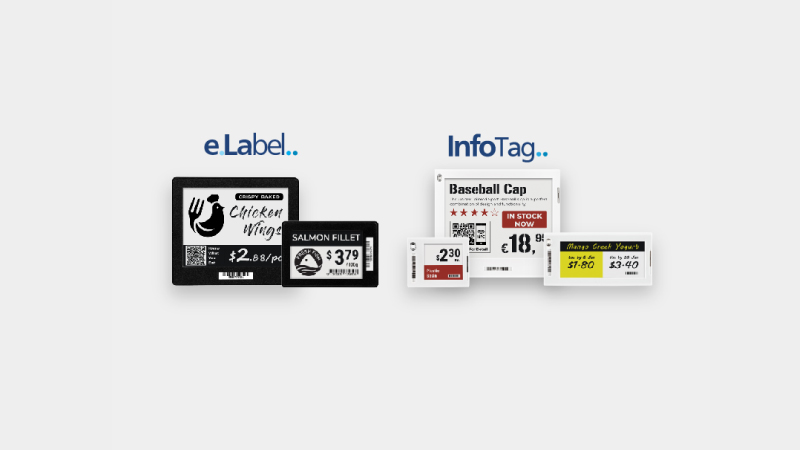

DIGI's enterprise-grade electronic shelf label (ESL) is developed to accelerate in-store digitisation with its error-free wireless price updates.

• Integrated QR code and Near Field Communication (NFC) capabilities
• Seamless integration with scale via USB base station for automatic price synchronisation



  • dps5000e_WP05_01
  • dps5000e_WP05_02
  • dps5000e_WP05_03


Capacity Max 15kg/ 30lb Max 30kg
Single Interval 1/ 3,000 e= 5g/ 0.01lb e= 10g
1/ 6,000 - e= 5g
1/ 7,500 e= 2g -
Capacity Max 6kg/ 15kg Max 15kg/ 30kg
Multi Interval 1/ 3,000 e= 2/ 5g e= 5/ 10g


Model DPS-5000e

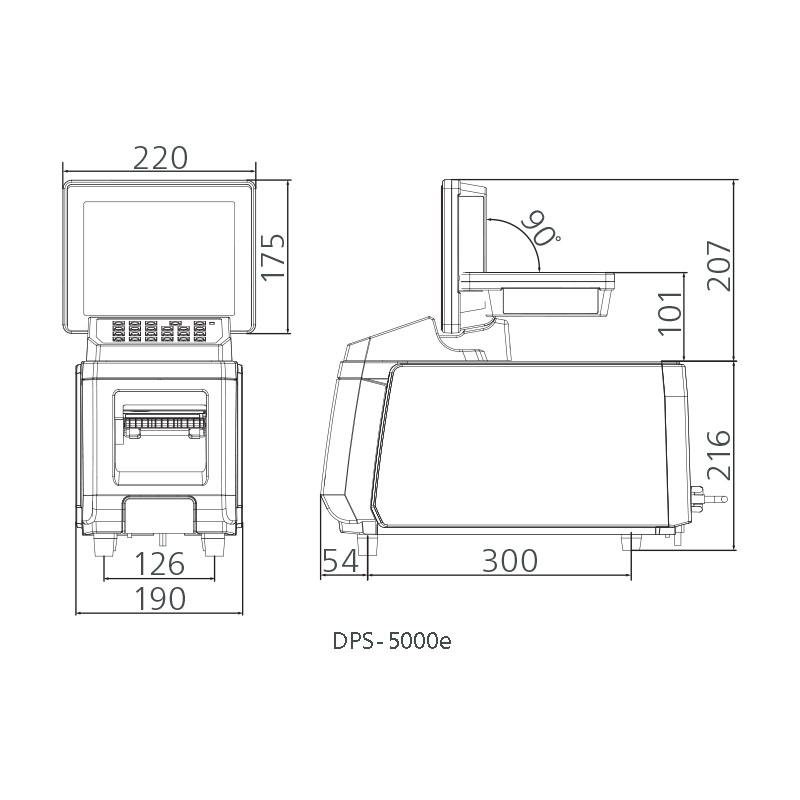

Dimension W x D x H (mm) DPS-5000e 220 x 423 x 423

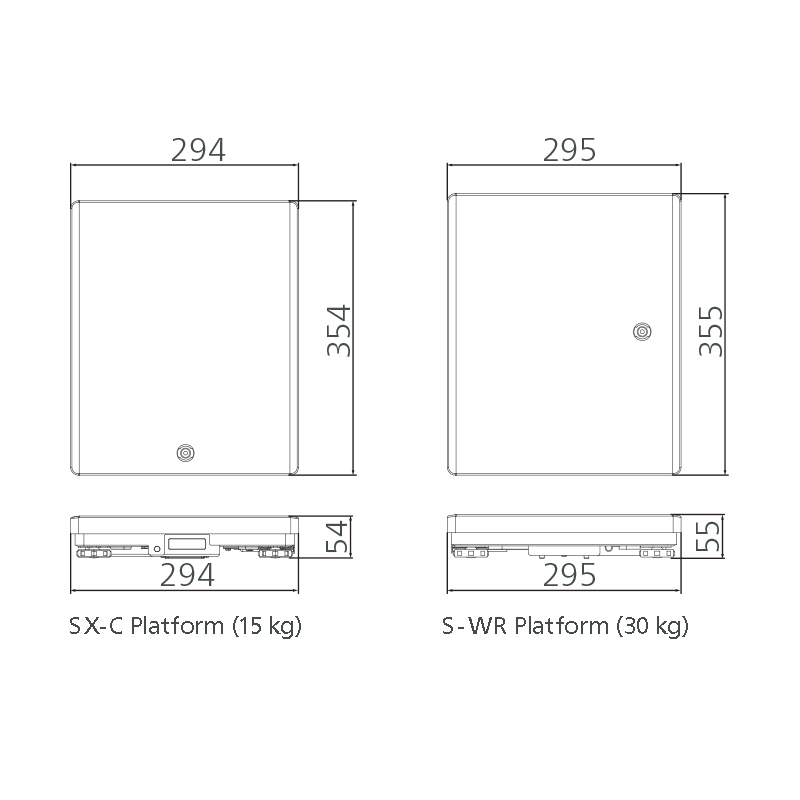

Platform  SX-C (15kg): 294 x 354 x 54 S-WR (30kg): 295 x 355 x 55

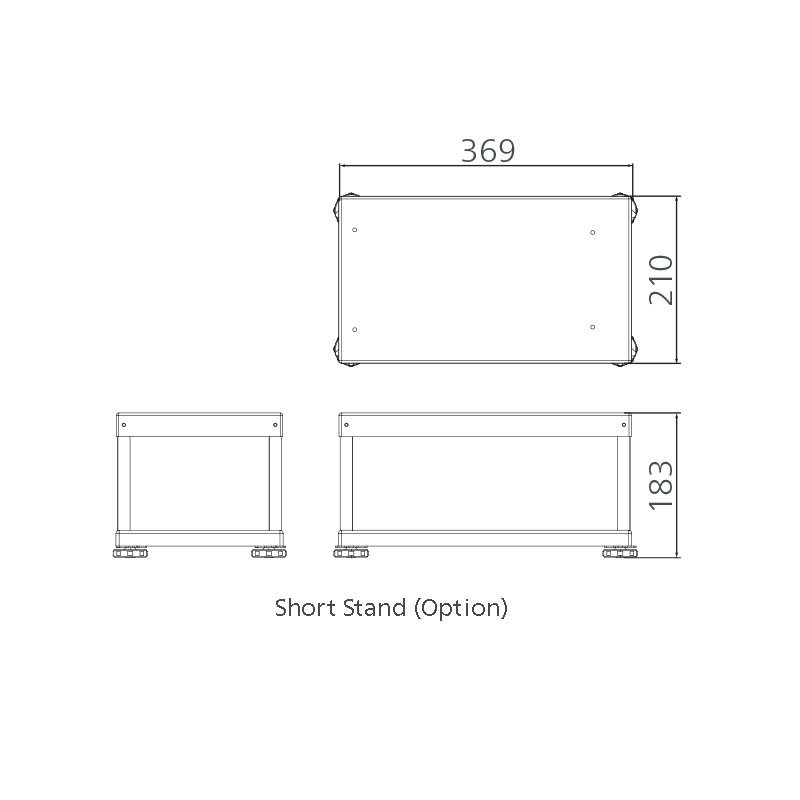

Short Stand (Option) 210 x 369 x 183
Operation Display 8.4" TFT SVGA with Touch Panel
  Display Size W x D (Pixels) 800 x 600
Display Rotatable Degree + / - 30 degree left and right ; 90 degree up and down
Label / Receipt Types Liner Linerless with Auto-Cutter
Roll Diameter Max 125mm Max 125mm
Roll Width Max 80mm Max 80mm
Print Width Max 80mm Max 80mm
Printing Speed Max 150mm / second* Max 150mm / second*
Print Resolution 300 dpi 300 dpi
Barcode Type Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, RSS, PDF417 (For Receipt Only), GS1, QR Code, Datamatrix
Power Source AC 100V / 220V
Power Consumption 80W
Operating Temperature -10℃ to +40℃
Humidity 15% to 85% RH Non-Condensation
Standard Interface 2 x RS232C, Ethernet 10 / 100 Base T, 4 x USB 2.0, SD Socket
Net Weight DPS-5000e 11.2 kg
Platform SX-C: 6.65 kg S-WR: 4.5 kg
Short Stand (Option) 3.4 kg
*To achieve maximum print speed, high sensitivity thermal paper is necessary. Contact DIGI for more details.



Internal Rewinder Kit

Accomodates batch printing by winding up dispensed labels into a neat roll.

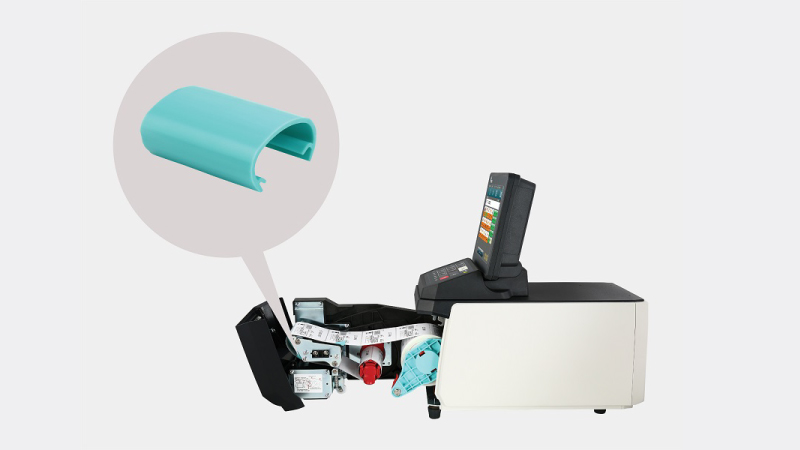

Long Label Holder

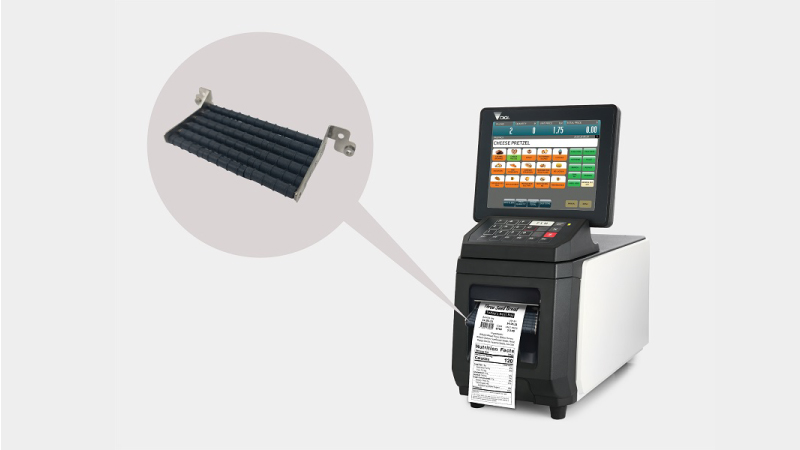

Prevents long label from falling off when dispensed.

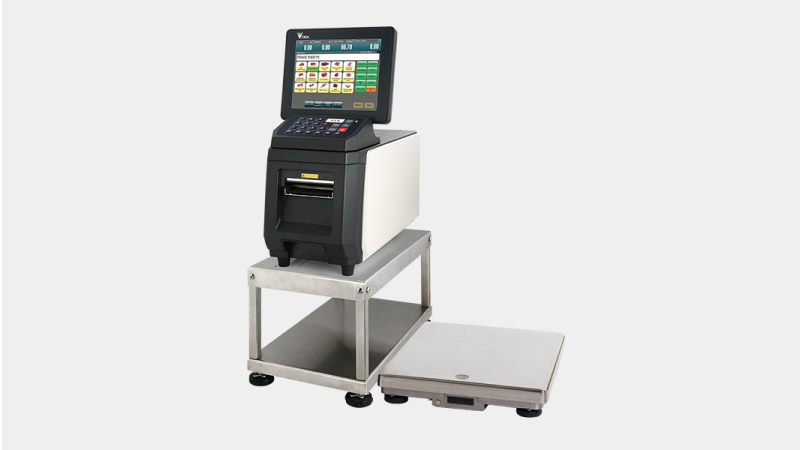

Short Stand

Stainless steel short stand elevates scale for better comfort.


Options Wireless LAN IEEE 802.11 a / b / g / n / ac, InfoTag, e.Label with Hi-Touch, Base Station
Factory Option  Linerless Printer with Auto-Cutter
