OZONE TERAOKA
OZONE Series
improves sanitation in workplaces and kitchens
Dimensions

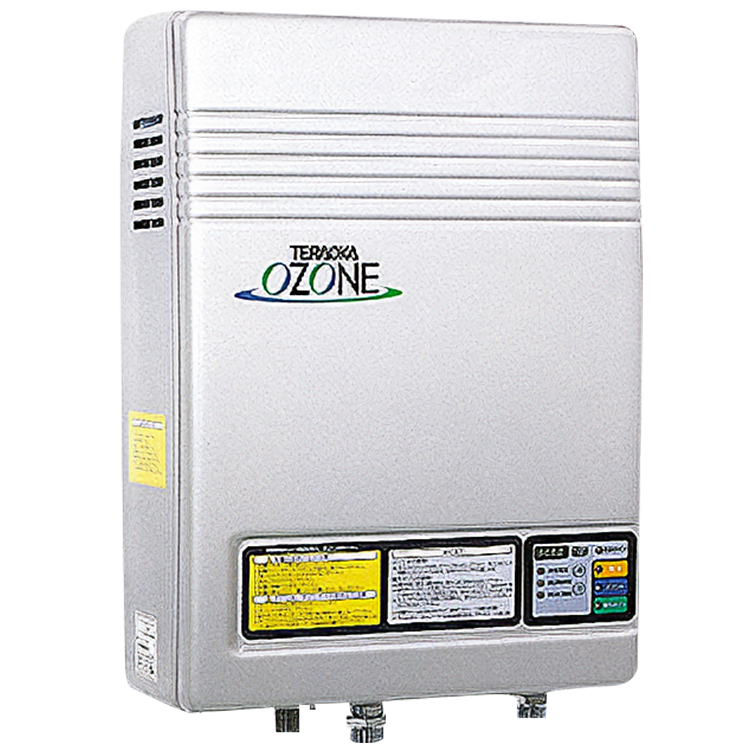

Fixed type
TWIN30-N(C)/ 60-N(C) | TWIN60-PSA | OZONFRESH1000 | ||
---|---|---|---|---|
Ozone Water | Tap water faucets | 1-3 | 1-3 | |
Ozone water volume | 4-30l/min | 8-60 l/min | ||
Ozone water concentration | 0.4-0.8mg/L | 0.4-0.8mg/L | ||
Ozone Air | Ozone gas vent | 1-6 (Max.15 by option) | 1-15 | 1-15 |
Effective area | Max. 700㎥ | Max. 1400㎥ | Max. 700㎥ | |
Ozone gas output | 1,000mg/h | 2,000mg/h | 1,000mg/h | |
General | Dimensions (mm) | W: 430 × H: 600 × D: 200 | W: 430 × H: 600 × D: 200 | W: 430 × H: 430 × D: 200 |
Net weight | 15kg | 17kg | 11kg |
Mobile type
MINI II-G | ||
---|---|---|
Ozone WaterTap water faucets | 1 | |
General | Dimensions (mm) | W: 370 × H: 400 × D: 230 |
Net weight | 8kg |
