Note: This product is no longer being sold. Please consult with your local contact regarding maintenance of this model or replacement models.
Semi-automatic weigh-wrap-label system with flexible product handling

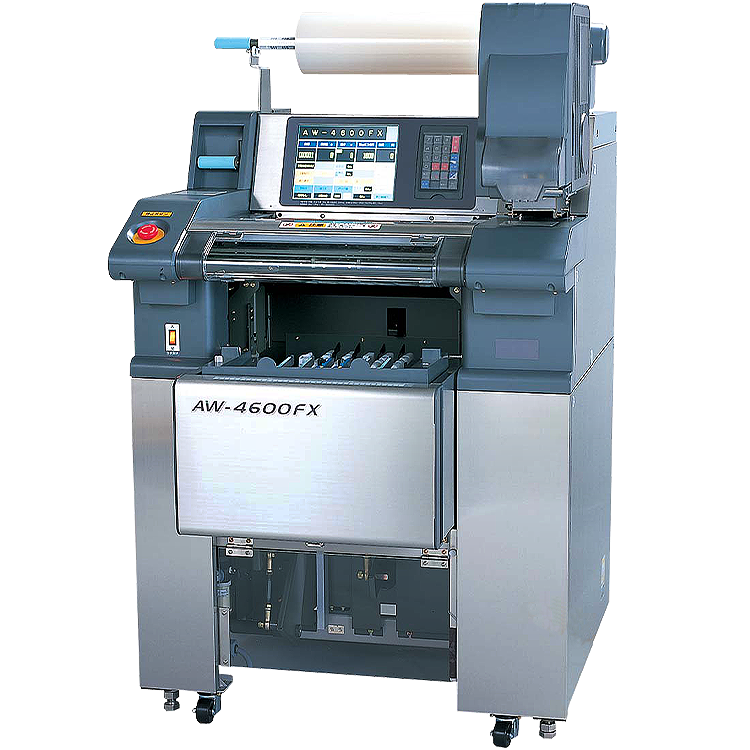

AW-4600FX
RetailMain Features
AW-4600FX is an unique capability of wrapping items on normal trays or without tray. This model even handles items on fragile trays which is difficult for other stretch wrapping systems. The compactly designed body requires only a 1m-square of foot print. Capable of wrapping up to 14 packs/min.
Wraps a wide range of products
AW-4600FX is not limited to conventional foam trays, also wraps items on odd shaped trays, fragile trays or even without tray. Makes it easy for anyone to wrap difficult packages, such as cheese or fruit and vegetable, attractively, and greatly increases work efficiency.

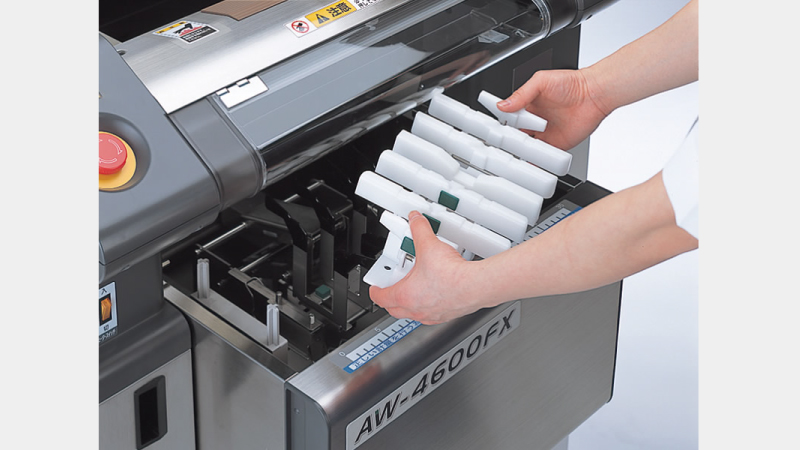

Easy cleaning
Parts that touch the product, such as the elevator head and scale tray, can all be easily removed. Parts removed can be washed in water. Helps maintain hygienic work conditions.
Linerless labeler option is available
Linerless labeler option lets you eliminate wasteful label liners and reduce total label cost. This also helps designing more eye-catching labels with less restrictions from label size.
Specifications

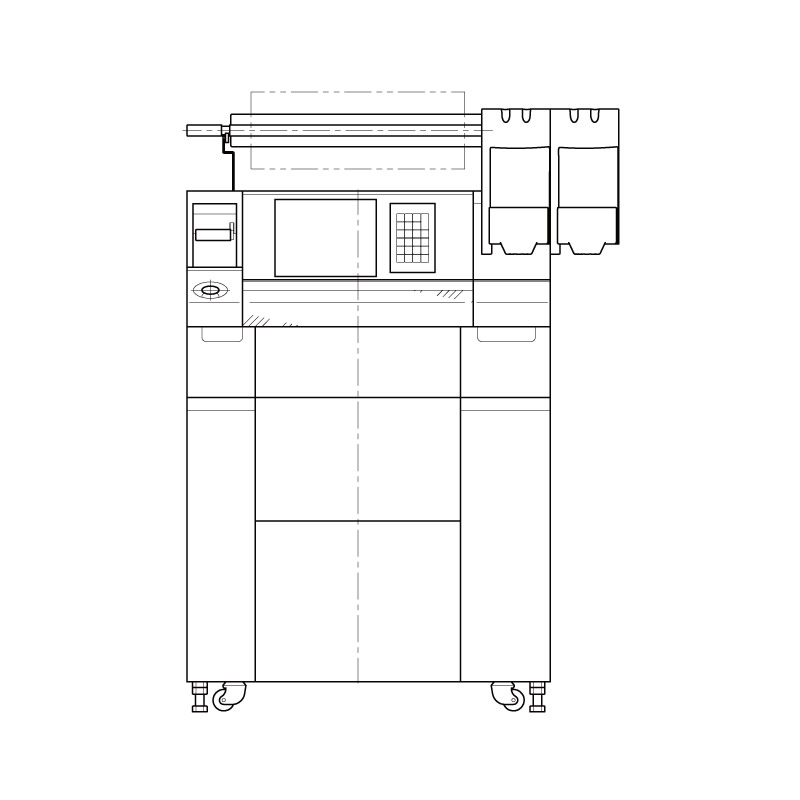

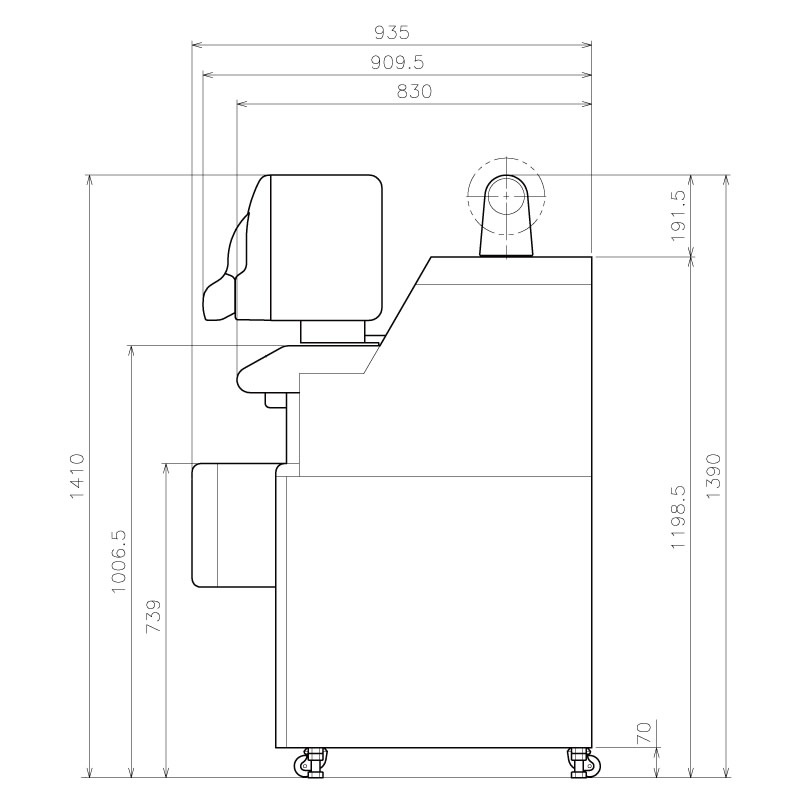

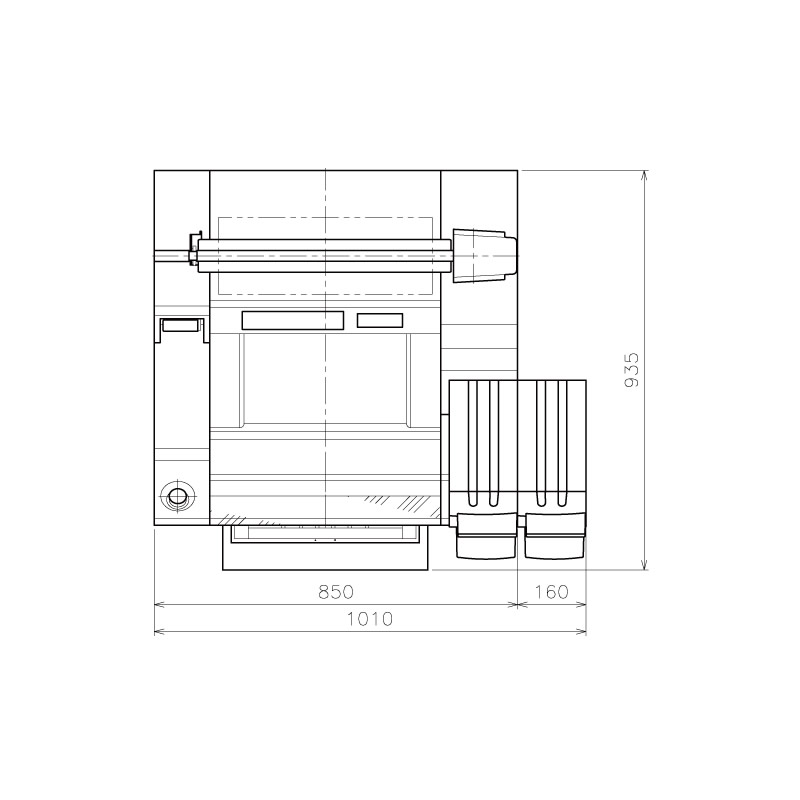

Dimensions
Wrapping
| Wrapping Speed | Max. 14 packages/min. |
|---|---|
| Package Size | Width: 80 to 350mm / Height : 10 to 130mm / Depth : 80 to 230mm The maximum combination of the above dimension is not available and the available package size depends on the film width. |
| Film Roll Capacity | One |
| Film Size | Accepts 350 to 500mm rolls |
Weighing
| Multi interval | Single interval | |||
| Capacity | Max. 6/15kg | Max. 3/6kg | Max. 30 lb | |
| Scale Interval | e=2/5g | e=1/2g | e=0.01 lb | |
Labeling
| Label Type | Thermal paper | |
|---|---|---|
| Labeling Application | Manual | |
| Label Size | Width: 40 to 80mm | |
| Net Weight | 280kg Single labeler type |
|
|---|---|---|
Variations
Linerless label model
AW-4600FX LL

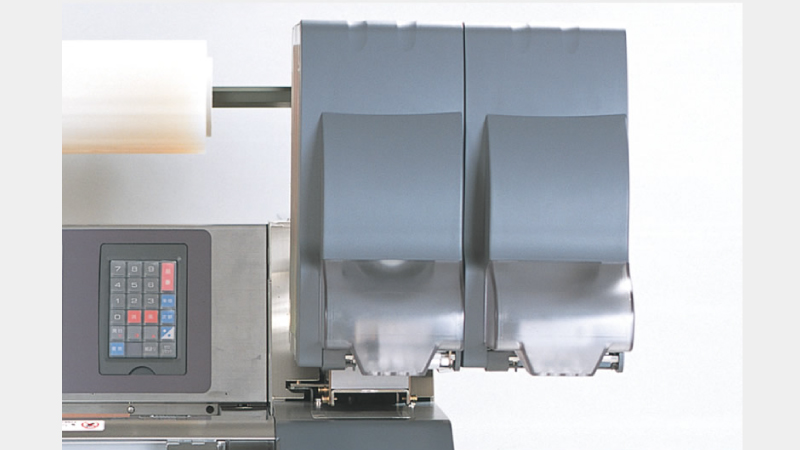

Twin labeler
AW-4600FX W
