Note: This product is no longer being sold. Please consult with your local contact regarding maintenance of this model or replacement models.

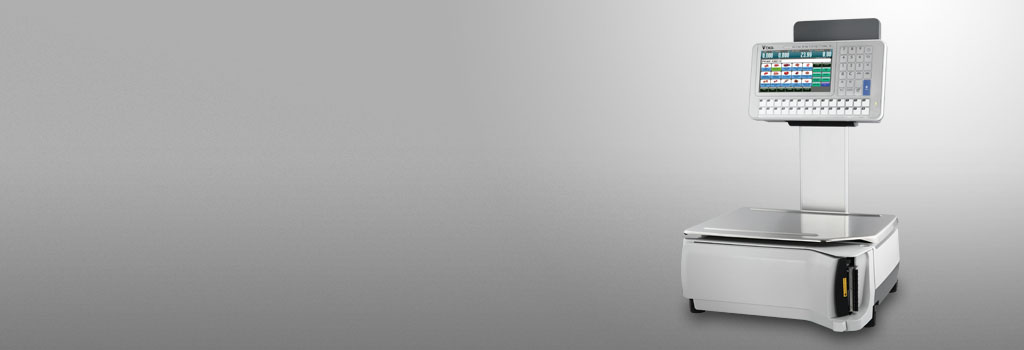

SM-5300-WP02-3

Economy, Efficiency and Eco-Friendly

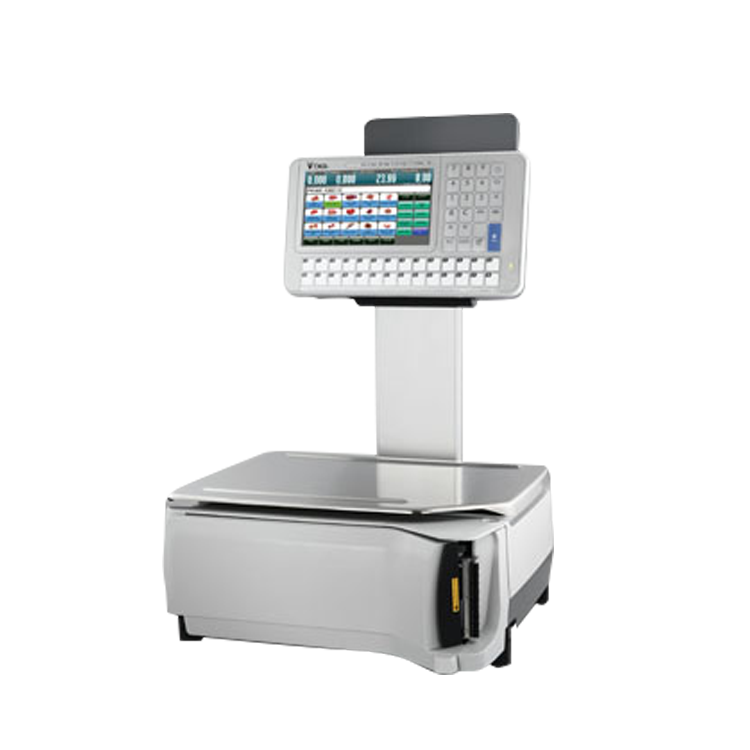

SM-5300

Retail

Main Features

SM-5300 is a PC based weigh-labeller offering linerless function with the auto-cutter feature. It comes with an interactive 7-inch colour customer display that can present advertisements to drive sales and enhance customer service. It can also connect to InfoTag and e.Labels electronic tag for seamless price updates with minimum human interference.

• Linerless label print with built-in auto-cutter
• Watermark printing
• Speed ID
• Scale management software @LABEL
• InfoTag Electronic Shelf Label
• Integrated Queue and Collection System
• Interactive colour operator and customer display

SM-5300-WP04-1

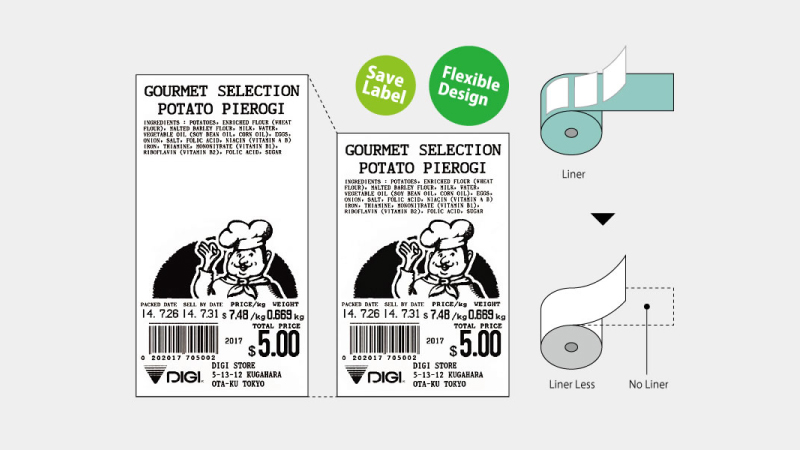

Linerless Labels with Auto-Cutter Weigh Labeller

SM-5300 is a PC based weigh-labeller with a built-in auto-cutter feature for linerless labels. The use of linerless labels will reduce wastage and label costs

Without liner film sheet, the number of labels per roll for print will increase significantly and minimises disruptions for operational downtime for changing of label roll.

As the printer is capable of detecting label size automatically, hence only 1 type of label is required.

SM-5300-WP04-8

Watermark Printing

Maximise your brand awareness and make the product labels more attractive by the variable use of creative effects. Take advantage of this watermark printing feature to increase revenue.

SM-5300-WP04-9

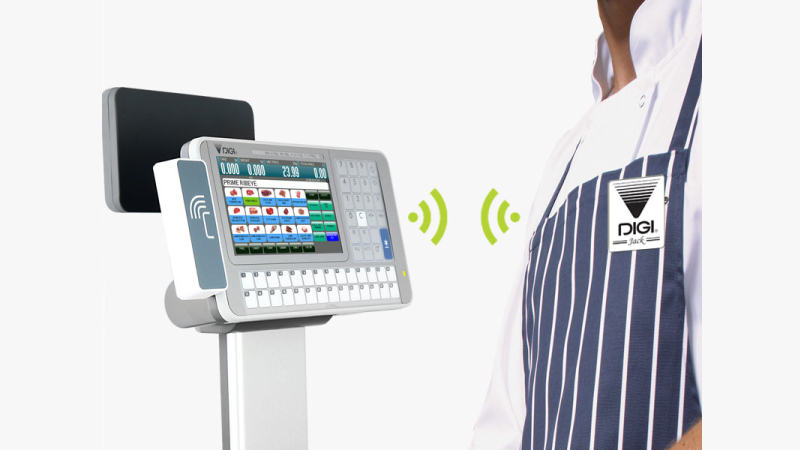

Speed ID

With the near field identification feature, it eliminates the process of a manual key in of clerk password. It provides hassle-free user login and prevents unauthorised access. The operational log ensures accountability and transparency.

• Fast operation
• Reduce error
• Clerk operations log

SM-5300-WP04-10

Scale Management Application @LABEL

Sales reports are automatically collected and stored to one centralise location, that allows management to access, analyse and manage remotely. Users are also able to check, set PLU conveniently.

It reduces time spent to check individual scale status as any update is just a few clicks away.

SM-5300-WP04-11

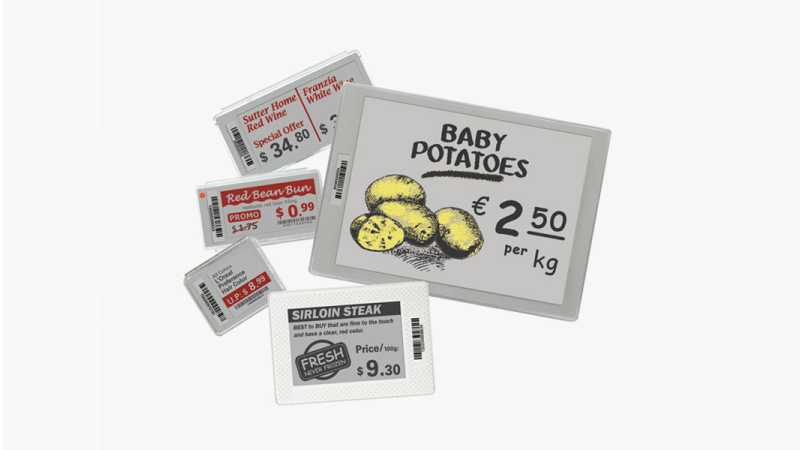

InfoTag and e.Label Electronic Signage

Revision of promotional text, product information and pricing updates can be instantaneously displayed on InfoTag via the wireless base station. It can reduce pricing errors and labour costs for businesses. These InfoTags can also be easily deployed within the store.

• Wireless update
• Price integrity
• Minimise errors
• Easy connection through base station

Equipped with the IP67 rating, e.Label with Hi-Touch is dust and water resistant and compatible for use with DIGI PC scale. Utilising tap sensor technology, Hi-Touch feature allows operators to call up the correct PLU code easily. The highly efficient and responsive system reduces errors and enhances customer service.

Both InfoTag and e.Label are designed with high contrast ePaper display, ensuring high screen readability for your customers. Complement your marketing campaign by customising ePaper with barcodes, QR codes and NFC for interactions between customers that can be accessed through a smartphone.

SM-5300-WP04-6

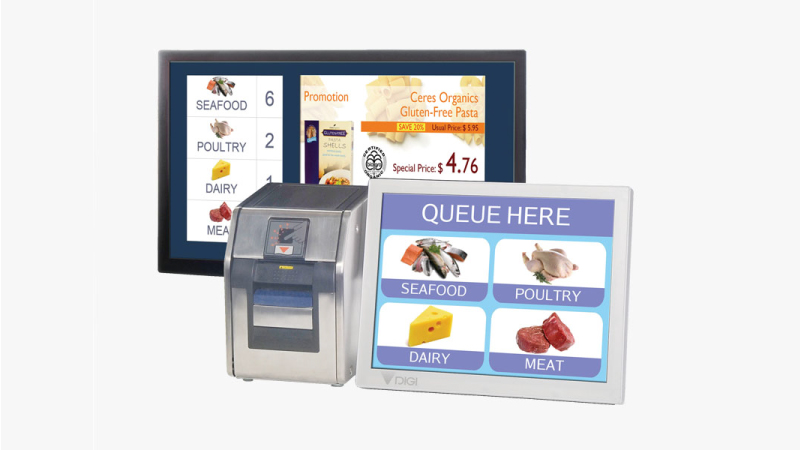

Integrated Queue & Collection System

The integrated queue and collection system allows customers to keep track of all the services at one central place. It allows multiple departments queues to be consolidated for real-time monitoring. This allows operators to react to customer’s demand as quickly as possible, keeping checkouts operation smooth. It also reduces customer’s waiting time and enhances customers’ overall shopping experience.

SM-5300-WP04-7

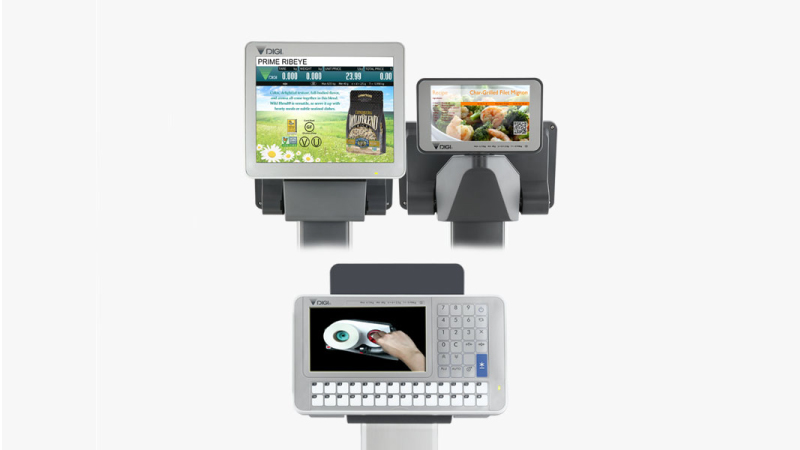

Interactive Screens Display

SM-5300 is available in both 7" and 12.1" WVGA customer display screen that can display customise information.

• Upsell
• Cross-sell
• Recipes
• Promotions
• Advertisements

Businesses can also maximise the operator display screen for e-training purposes.Training cost can be reduced for other development purposes. Further enhance service level by supporting operators with updates on promotions, cross-selling and consumers advice.

Specifications

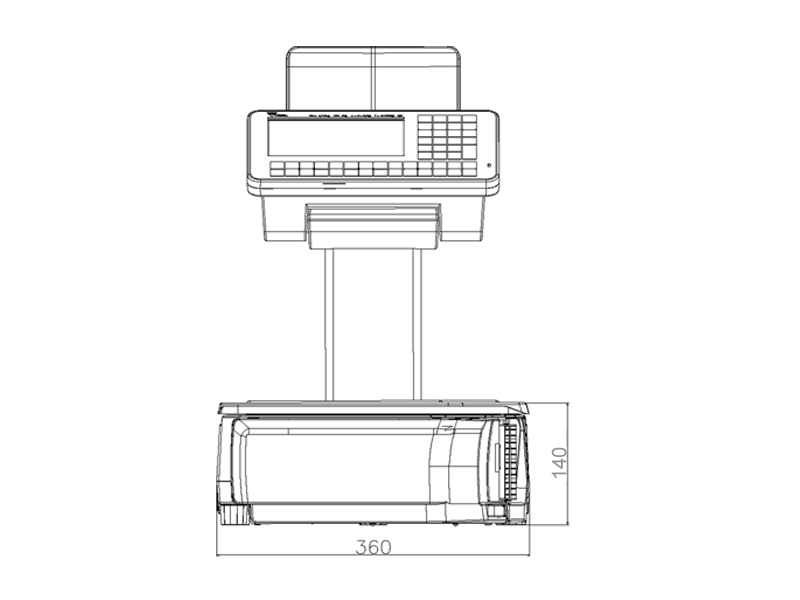

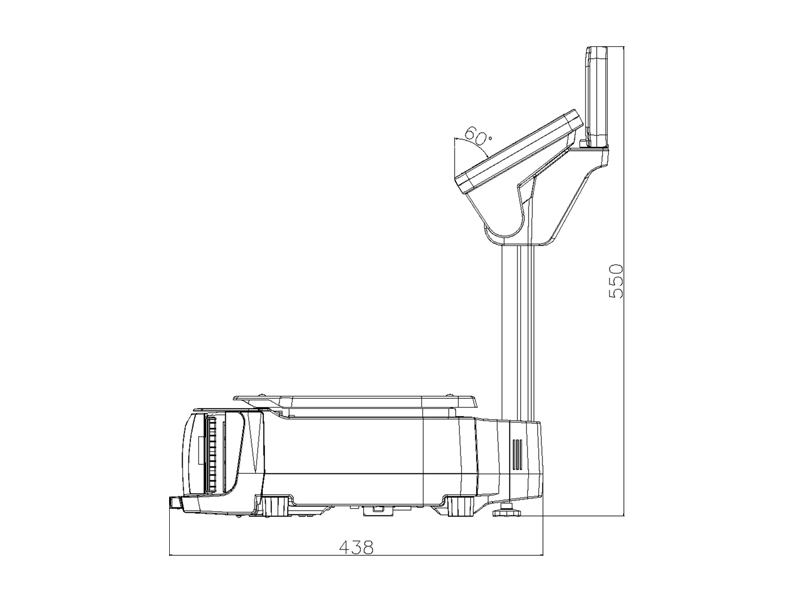

Dimensions

  • SM-5300-WP05-7
  • SM-5300-WP05-8

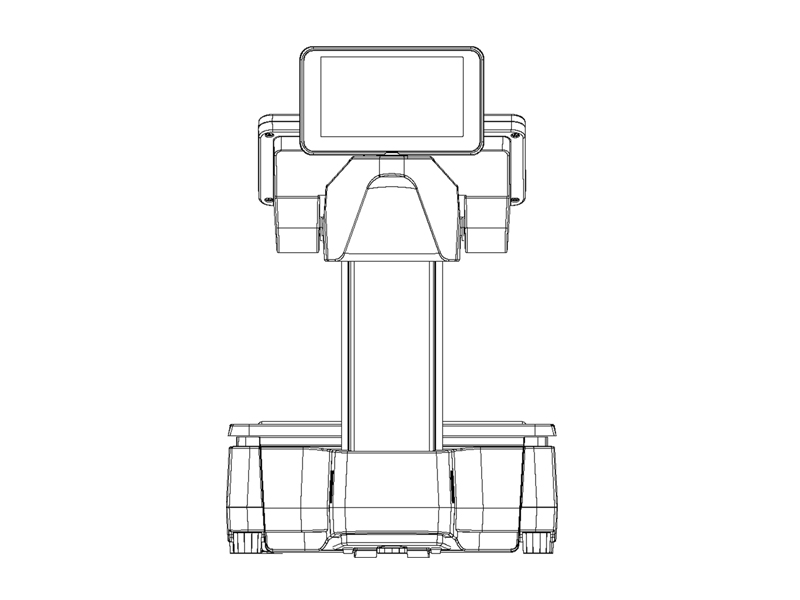

  • SM-5300-WP05-9

Weighing

Capacity Max 6kg Max 15kg/ 30lb Max 30kg
Single Interval 1/ 3,000 e= 2g e= 5g/ 0.01lb e= 10g
1/ 6,000 e= 1g e= 2g e= 5g
Capacity Max 3/ 6kg Max 6kg/ 15kg Max 15kg/ 30kg
Multi Interval 1/ 3,000 e= 1/ 2g e= 2/ 5g e= 5/ 10g

Model SM-5300B (Bench) SM-5300P (Pole) SM-5300EV (Elevated) SM-5300EV PLUS (Elevated) SM-5300SSP (12.1"Self-Service) SM-5300SSP (19" Self-Service) SM-5300H (Hanging)
Dimension (mm) 360(W) x 472(D) x 136(H) 360(W) x 500(D) x 542(H) 360(W) x 438(D) x 550(H) 360(W) x 438(D) x 637(H) 360(W) x 460(D) x 637(H) 442(W) x 480(D) x 757(H) 359(W) x 369(D) x 883(H)
Operator display, 7" WVGA with Touch (800x480) Ο Ο Ο Ο - - Ο
Customer display, 7" WVGA
(800x480)
Ο Ο Ο - - - Ο
Display Resolution 1/ 3,000, 1/ 6,000 & 1/ 7,500
Number of Keys 28 Preset Keys/ 23 Alphanumeric Function Keys (for 7" Operator WVGA with Touch Screen)
Label Types Liner / Linerless With Autocutter
Liner Label/ Receipt Roll Diameter 125mm (Max)
Liner Label/ Receipt Printing Speed Up to 150mm/second*
Linerless Label/ Receipt Roll Diameter 95mm (Max)
Linerless Label/ Receipt Printing Speed Up to 100mm / second*
Power Source AC 100/ 110 or 220/ 230/ 240 Volts (50/60Hz) Auto Switch
Operating Temperature -10°C to +40°C
Humidity 15% to 85% RH
Standard Interface Ethernet 10/ 100 Base T, 4 x USB 2.0, RJ11
Net Weight 10.5kg 11.5kg 12.5kg 16.0kg 13.3kg 17.0kg 14.0kg
* To achieve maximum print speed, high sensitivity thermal paper is necessary. Contact DIGI for details.

Variations

SM-5300-WP07-15

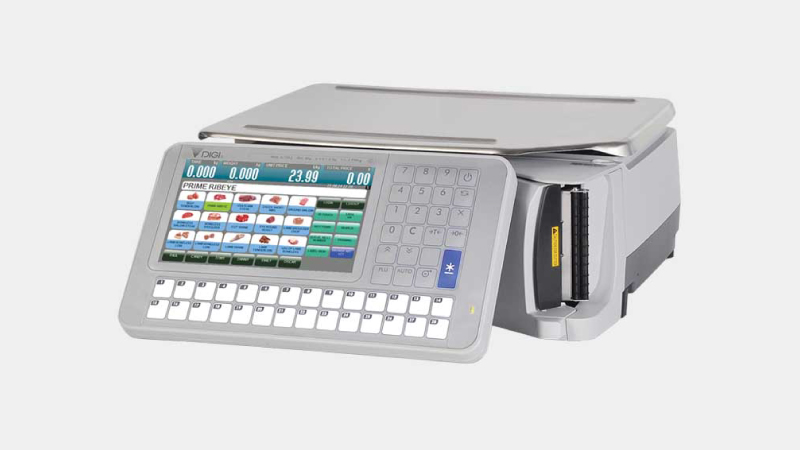

Bench Type

SM-5300 B

Dimension (mm) 360(W)x472(D)x136(H)

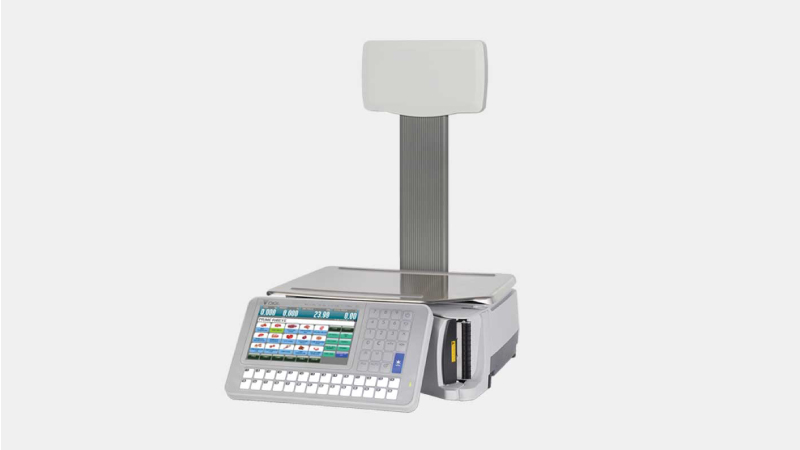

SM-5300-WP07-17

Pole Type

SM-5300 P

Dimension (mm) 360(W)x500(D)x542(H)

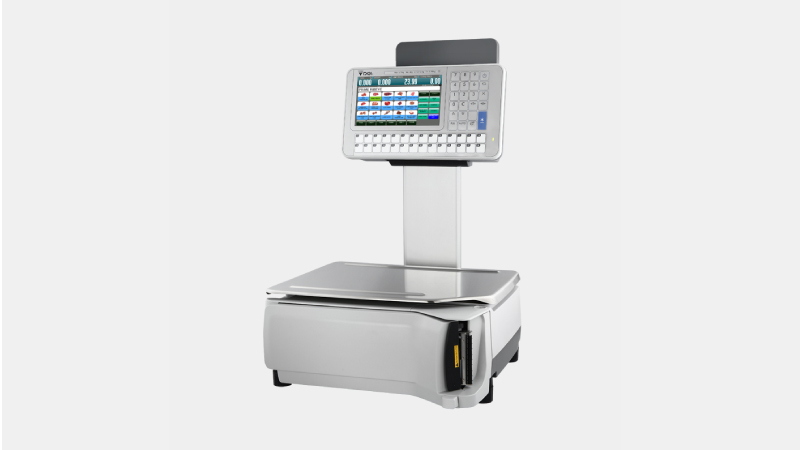

SM-5300-WP07-19

Elevated Type

SM-5300 EV

Dimension (mm) 360(W)x438(D)x550(H)

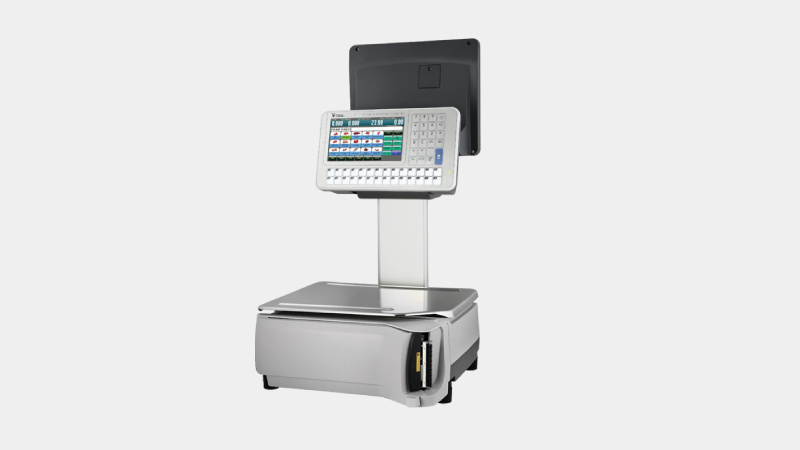

SM-5300-WP07-21

Elevated Type

SM-5300 EV PLUS

Dimension (mm) 360(W)x438(D)x642(H)

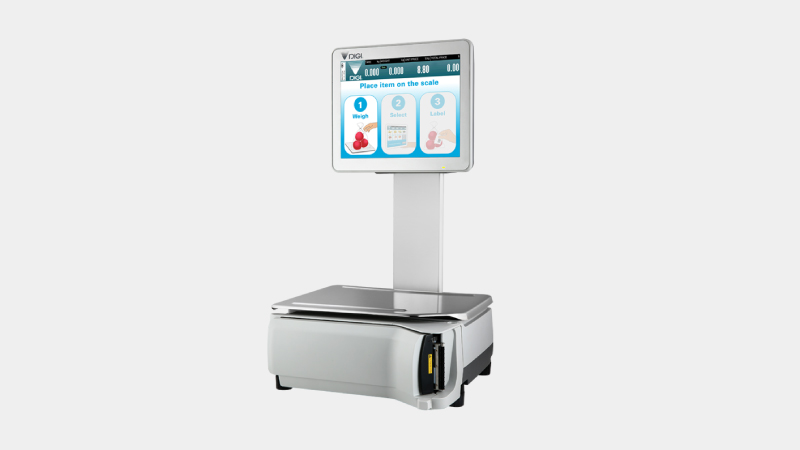

SM-5300-WP07-23

Self Service Type

SM-5300 SSP (12.1" Self-Service)

Dimension (mm) 360(W)x460(D)x637(H)
SM-5300-WP07-25

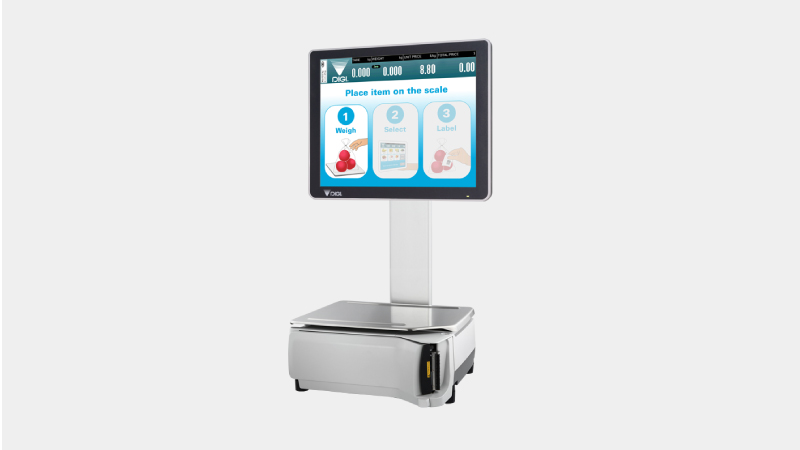

Self Service Type

SM-5300 SSP (19" Self-Service)

Dimension (mm) 442(W)x480(D)x757(H)
SM-5300-WP07-27

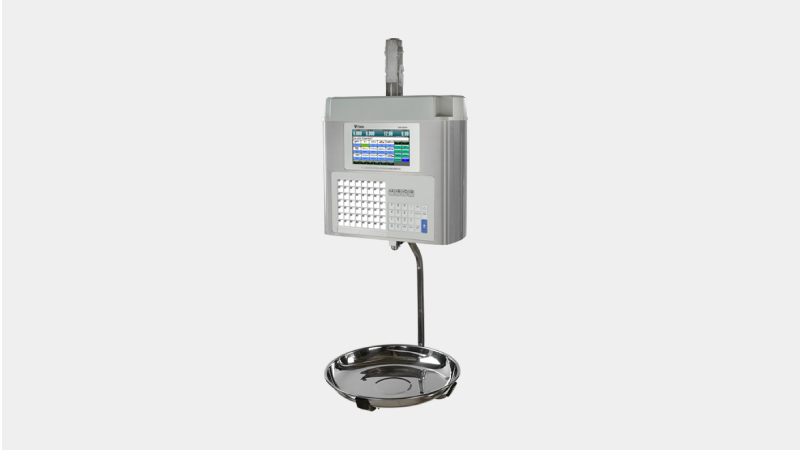

Hanging

SM-5300 H

Dimension (mm) 359(W)x369(D)x883(H)

Options

Options

Options AP-3001G (USB Wireless LAN IEEE 802.11a / b / c / g / n), BS-03, TVP-1500Q V2, DL-3700, MD-121, e.Label, InfoTag

Factory Options

Factory Options Linerless printer with auto-cutter, Speed ID

Case Studies

Case Study




DIGI integrated solutions enhance customer experience in FairPrice’s largest hypermarket

FairPrice

“A perennial supporter of DIGI's integrated weighing solutions, FairPrice is delighted to leverage DIGI’s expertise once again to strengthen its commitment in providing convenience to customers”.

SM5300, flexible and reliable partner of BOB & ROY'S

BOB & ROY'S

A perfectly integrated scale that gives the customer all paying options.
A sturdy scale that can perfectly work on its own

DIGI solutions change the rules of the game for future retail supermarkets

Unicoop Tirreno

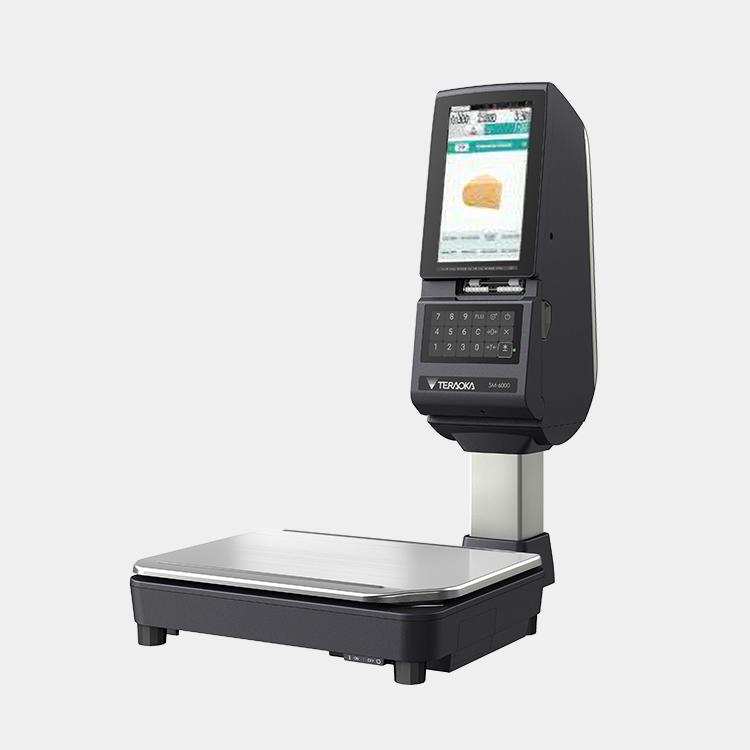

“SM-6000 is for high-end users, who wants to add design and new features to the store concept”. -Federico Tanesini, Manging Director of DIGI Italia
