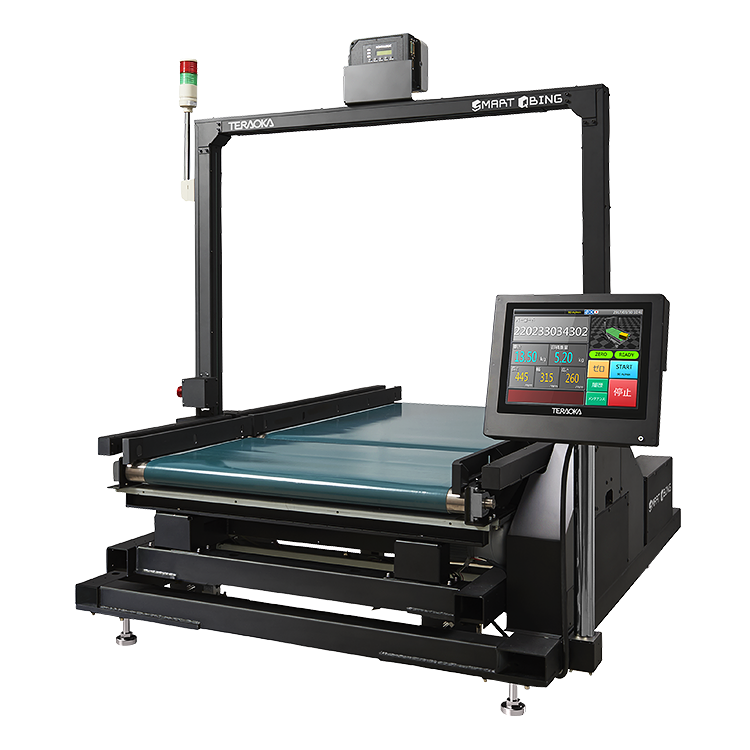

SMART QBING

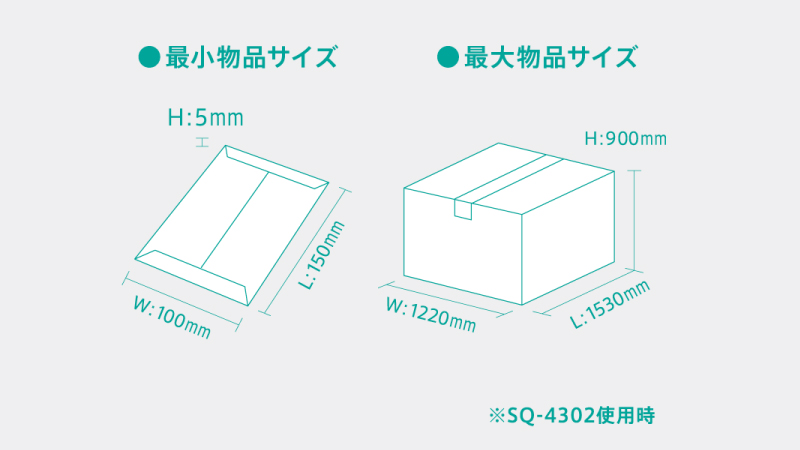

This automatic in-motion dimensioning and weighing system offers speedy measurement of package dimensions and weight on a conveyor. Measures items down to 5 mm thickness - an industry first.
Automatic Weigh Scale (Weight Only)
|
SQ-2002
SQ-2003 |
Automatic scale that measures weight. Weighs packages up to 153 cm (L) x 60 cm (W) x 60 cm (H) and 50 kg weight, in 100 g increments (50 g increments for items up to 5 kg). SQ-2003 is a high-speed processing model, with a min. conveyor item spacing of 40 cm. (SQ-2002 supports a min. 70 cm item spacing.) |
|
SQ-3002
SQ-3003 |
Automatic scale that measures weight. Weighs packages up to 153 cm (L) x 90 cm (W) x 90 cm (H) and 50 kg weight, in 100 g increments (50 g increments for items up to 5 kg). SQ-3003 is a high-speed processing model, with a min. conveyor item spacing of 40 cm. (SQ-3002 supports a min. 70 cm item spacing.) |
Automatic Dimmensioning Weigh Scale (Dimensions and Weight)
|
SQ-2202
SQ-2203 |
Automatic scale that measures dimensions and weight. Measures and weighs packages up to 153 cm (L) x 60 cm (W) x 60 cm (H) and 50 kg weight. Dimensions are measured in 5 mm increments; weight is measured in 100 g increments (50 g increments for items up to 5 kg). SQ-2203 is a high-speed processing model, with a min. conveyor item spacing of 40 cm. (SQ-2202 supports a min. 70 cm item spacing.) |
|
SQ-3302
SQ-3303 |
Automatic scale that measures dimensions and weight. Measures and weighs packages up to 153 cm (L) x 90 cm (W) x 90 cm (H) and 50 kg weight. Dimensions are measured in 5 mm increments; weight is measured in 100 g increments (50 g increments for items up to 5 kg). SQ-3303 is a high-speed processing model, with a min. conveyor item spacing of 40 cm. (SQ-3302 supports a min. 70 cm item spacing.) |
|
SQ-4302
|
Automatic scale that measures dimensions and weight. Measures and weighs packages up to 153 cm (L) x 122 cm (W) x 90 cm (H) and 50 kg weight. Dimensions are measured in 5 mm increments; weight is measured in 100 g increments (50 g increments for items up to 5 kg). |
Automatic Dimmensioning Scale (Dimensions Only)
|
SQ-2200
|
Automatic scale that measures dimensions. Measures packages up to 153 cm (L) x 60 cm (W) x 60 cm (H) in 5 mm increments. |
|
SQ-3300
|
Automatic scale that measures dimensions. Measures packages up to 153 cm (L) x 90 cm (W) x 60 cm (H) in 5 mm increments. |
