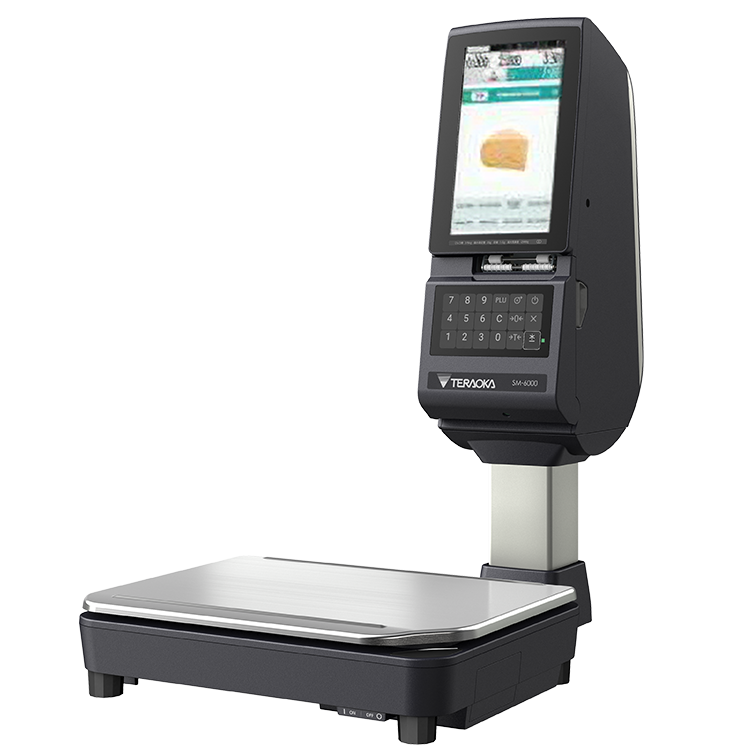

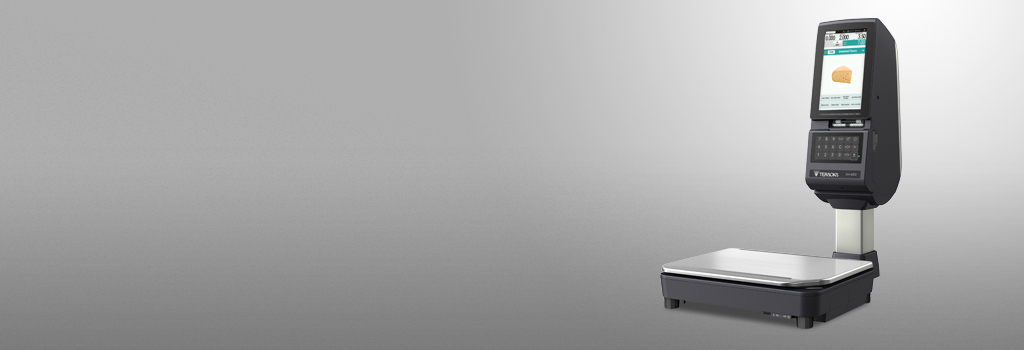

SM-6000

Be free from limits. Be free from the status quo.

Dimensions

sm6000_WP05_01
sm6000_WP05_02
sm6000_WP05_03

Weighing

Capacity Max 6kg Max 15kg/ 30lb Max 30kg
Single Interval 1/ 3,000 e= 2g e= 5g/ 0.01lb e= 10g
1/ 6,000 or 1/ 7,500 e= 1g e= 2g e= 5g
Capacity Max 3/ 6kg Max 6kg/ 15kg Max 15kg/ 30kg
Multi Interval 1/ 3,000 e= 1/ 2g e= 2/ 5g e= 5/ 10g


General

Display Resolution 1/ 3,000, 1/ 6,000, 1/ 7,500
Keyboard 18 x Keypad (For 8" Operator only)
Label / Receipt Types Linerless With Auto-Cutter
Label / Receipt Roll Diameter Max 95mm
Label / Receipt Print Width Max 60mm
Label / Receipt Paper Width Max 62mm
Label / Receipt Printing Speed Max 150mm / second*
Label / Receipt Print Resolution  300 dpi
Power Source Compiled to 80PLUS Power Saving**
Operating Temperature -10°C to +40°C
Humidity 15% to 85% RH Non-Condensation
Standard Interface  Ethernet 10/ 100 Base T, 4 x USB 2.0, RJ11
*   To achieve maximum print speed, high sensitivity thermal paper is necessary. Contact DIGI for details.
** 100-120Vac Gold   (North America, Canada and Japan)
    210-240Vac Silver (European, UK and most of Asia)


Model Type Dimension
W x D x H (mm)
Operator display Customer display Net weight
SM-6000 EV Elevated  364 x 464 x 606 8" TFT WVGA with
Capacitive Touch
(480 x 800)
8" TFT WVGA
(480 x 800)
13.3 kg
SM-6000 EV PLUS 411 x 460 x 766 15" TFT XGA
(768 x 1024)
14.9 kg
SM-6000 EV (15) 411 x 464 x 762 15" TFT XGA with
Capacitive Touch
(768 x 1024)
8" TFT WVGA
(480 x 800)
14.9 kg
SM-6000EV(15) PLUS 411 x 460 x 766 15" TFT XGA
(768 x 1024)
17.4 kg
SM-6000 EV HC High Counter 518 x 284 x 429 8" TFT WVGA with
Capacitive Touch
(480 x 800)
8" TFT WVGA
(480 x 800)
12.5 kg
SM-6000 EV HC PLUS 636 x 284 x 459 15" TFT XGA
(768 x 1024)
14.1 kg
SM-6000EV (15) HC 586 x 284 x 576 15" TFT XGA with
Capacitive Touch
(768 x 1024)
8" TFT WVGA
(480 x 800)
14.1 kg
SM-6000 SSP Self-Service 364 x 464 x 762 14.9 kg
SM-6000 SSR (8) 515 x 284 x 549 8" TFT WVGA with Capacitive Touch
(480 x 800)
13.7 kg
SM-6000 SSR (15) 583 x 284 x 708 15" TFT XGA with
Capacitive Touch
(768 x 1024)
15.6 kg
