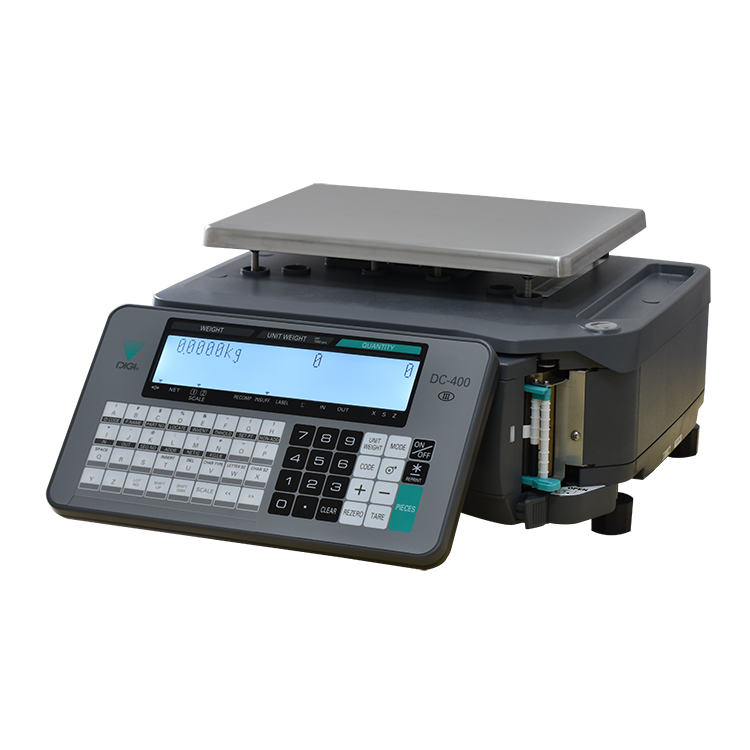

DC-400
A high-functioning and eco-friendly digital counting scale

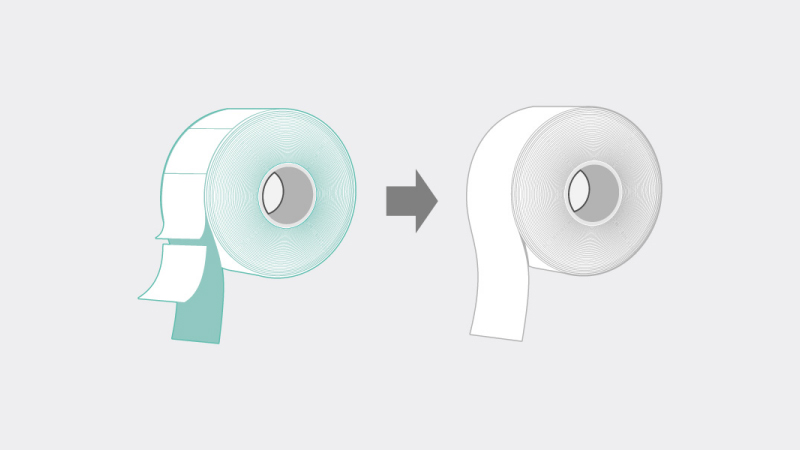

capable of counting a variety of items and equipped with a linerless printer
Dimensions
Basic Specifications
Capacity
|
500g / 5kg | 2.5kg / 25kg |
---|---|---|
Interval
|
0.1g (0 - 200g) 0.2g (200g - 500g) 0.5g (500g - 2000g) 1g (2000g - 5000g) |
0.5g (0 - 1kg) 1g (1kg - 2.5kg) 2g (2.5kg - 10kg) 5g (10kg - 25kg) |
Platter size
|
215 (W) × 162 (D) mm | 290 (W) × 215 (D) mm |
Display
|
202 × 32 pixels FSTN type LCD with white back-light Tare Weight: 4 digits. Weight: 5 digits. Unit Price: 6 digits. Total Pric: 7 digits. Second Line display: 25 characters. |
|
Internal Resolution
|
1/1,000,000 | |
Power Source
|
AC 176V ~ 264V, 47 ~ 63Hz | |
Operating Temperature
|
-10℃ ~ +40℃ | |
Operating Humidity
|
15% ~ 85% RH. | |
Power Consumption
|
0.5A | |
Printer
|
Thermal print with auto cutter Max. Printing Width: 60m. Paper Width: 62mm (receipt) / 60mm (label) Printing speed: Maximum 110mm / sec. Life span: 100 million pulses, 100km or more. |
|
Interface
|
1 × External remote platform connector (DDK). 1 × Ethernet (RJ45). 1 × RS-232 (DB9). 1 × PS/2 (Mini-DIN). |
