A convenient and complete solution for a wide range of in-store applications
LI-5600II
RetailMain Features
The LI-5600II maximizes the efficiency of in-store pre-packaging operation and has a compact, space-saving design. Its compact design provides opportunities in various applications that require a simple, unique solution for automatic and semi-automatic labeling. The LI-5600II is also highly compatible with existing equipment such as MAP packaging machines in the pre-packaging area.
Automatic weigh-label-system, a convenient and complete solution for a wide range of in-store applications
The LI-5600II, automatic weigh-label system, maximizes efficiency in the pre-packing operation and has a compact and space saving design. Easy to be combined into existing equipment in the pre-packing area.
Fast, accurate and flexible labeling

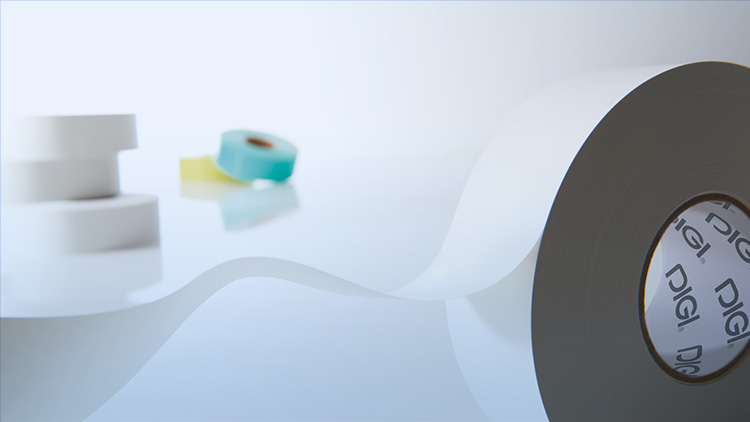

Catch the Shoppers' Eyes While Generating Savings on Labels
User-friendly operation
Detachable conveyor for easy cleaning
Specifications

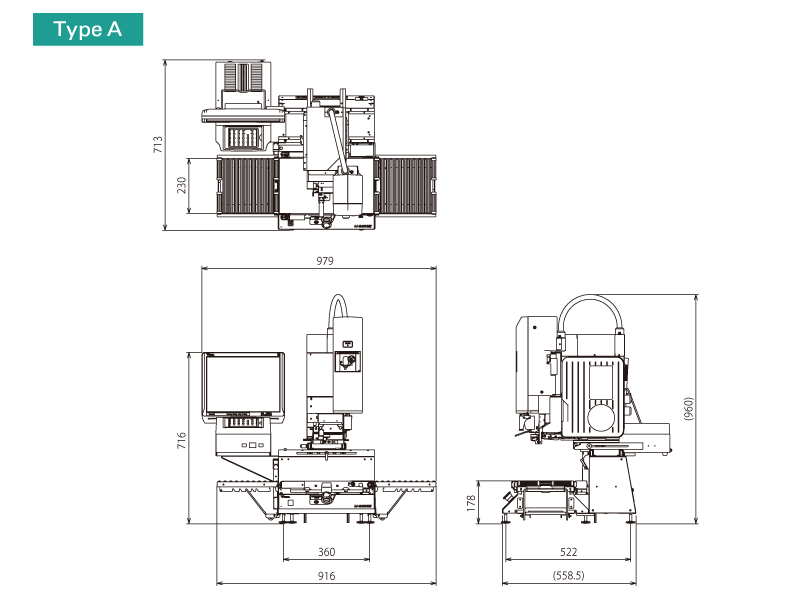

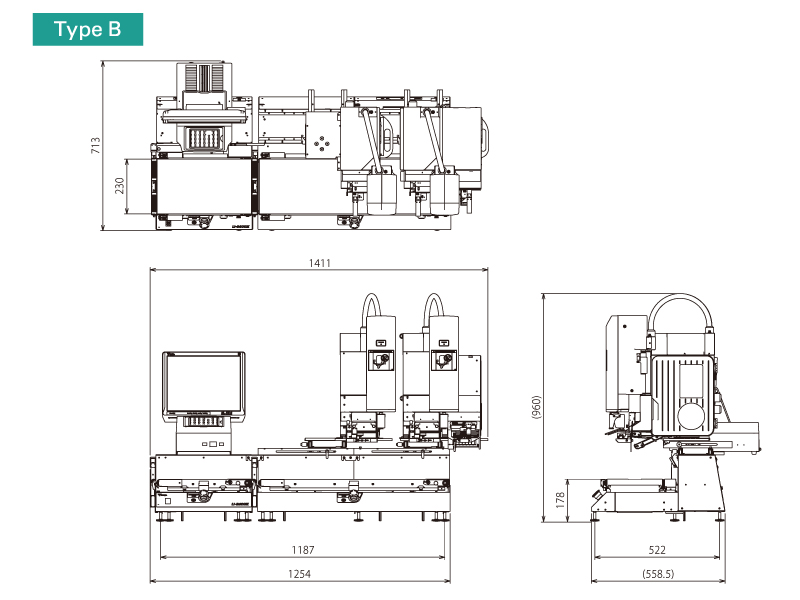

Dimensions
Conveyor
| Model | Type A | Type B |
|---|---|---|
| Speed | Max. 26 packages/min. | Max. 35 packages/min. |
| Package Size | Width: 50-390 mm/1.9-15.4 inches Height: 1-150 mm/0.04-5.9 inches Depth: 50-230 mm/1.9-9.1 inches |
|
| Direction | Left → Right or Right → Left | |
Weighing
* Unit varies by country| Interval type | Multi-interval | Single-interval | |
|---|---|---|---|
| Capacity | Max 3/6 kg | Max 6/15 kg | Max 30 lb |
| Scale interval | e=1/2 g | e=2/5 g | e=0.01 lb |
| Weighing range | 20 g-6 kg | 40 g-15 kg | 0.20-30 lb |
| Conveyor capacity | Max 6 kg | Max 15 kg | 30 lb |
Thermal printer
* Maximum printing length is 300 mm/11.8 inches| Model | Type A and B | |||
|---|---|---|---|---|
| Labeling application | Automatic application | Manual application | ||
| Label type | Die-cut Label | Linerless Label | Die-cut Label | Linerless Label |
| Label size | Width: 40-80 mm/ 1.57-3.15 inches Length: 28-105 mm/ 1.10-4.13 inches |
Width: 44-78 mm/ 1.73-3.07 inches Length: 28-105 mm/ 1.10-4.13 inches |
Width: 40-80 mm/ 1.57-3.15 inches Length: 20-150 mm/ 0.79-5.91 inches |
Width: 44-78 mm/ 1.73-3.07 inches Length: 20-500 mm/ 0.79-19.69 inches* * Maximum printing length is 300 mm/11.8 inches |
| Labeling angle | 0 or 90 or 180 or 270 degree | |||
| Font | True type font | |||
Operation console
| Display panel | TFT LCD color (15 inches) touch panel |
|---|---|
| Memory for programmable files | 32 GB |
General
| Model | Type A | Type B |
|---|---|---|
| Power source and power consumption | 230 V;1 φ;50/60 Hz;0.7 A;160 W | Scale Conv: 230 V;1 φ;50/60 Hz;0.8 A;160 W Labelling Conv: 230 V;1 φ;50/60 Hz;0.9A;165 W |
| Net weight | Approx. 59 kg | Approx. 112 kg (TWIN + POP labeler type) |
Variations
Single labeler type
Single labeler type
Twin labeler type
Single labeler with POP labeler
Twin labeler with POP labeler
Options

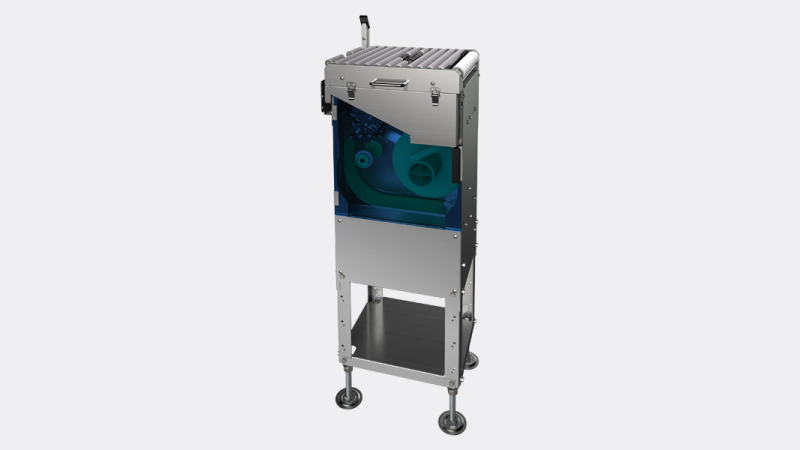

Auto BP LL Labeler
Auto BP LL Labeler can be installed to both LI-5600ll Type-A and Type-B.
Case Studies
Case study
Globus Butcher Shop investing in more comfortable and efficient processes with the latest LI-5600 with top and bottom LL printer
Globus Butcher Shop
Mr. Holland, master butcher at Globus Neutraubling had already made good experiences with DIGI packaging machines and is convinced of the advantages of our additional products, such as the Linerless technology.
