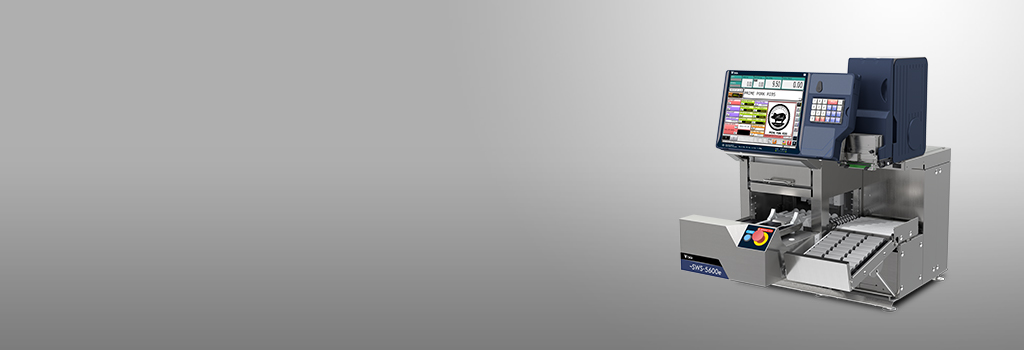

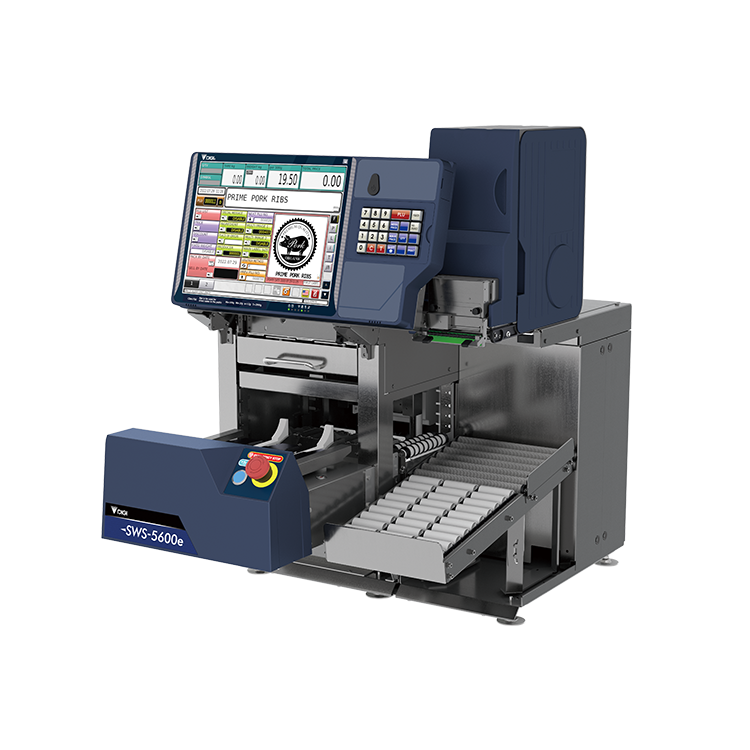

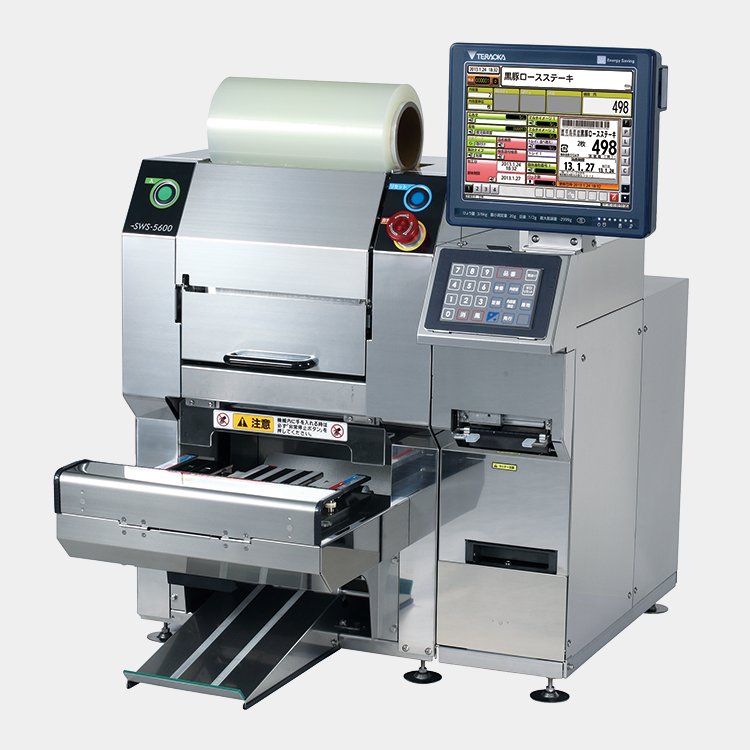

A tabletop tray sealer with integrated weigh-seal-label functionality



Main Features

A tabletop weigh-seal-label system that improves backroom productivity and operational efficiency while reducing film usage.

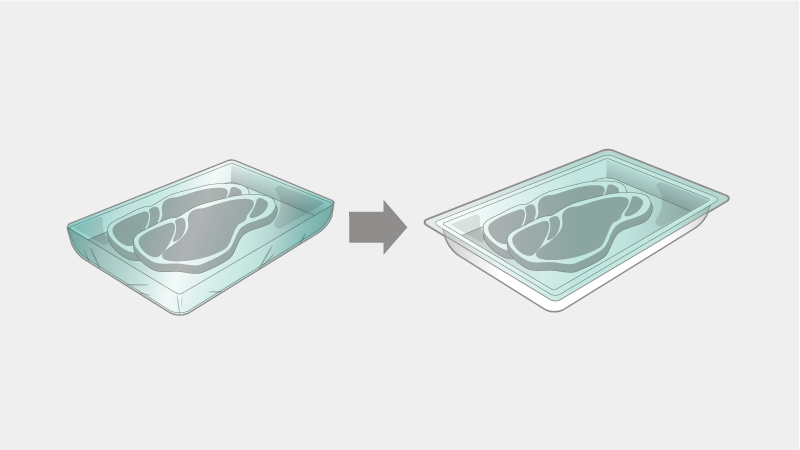

Top seal packing reduces plastic use

Rather than wrapping film the whole way around the tray, this machine utilizes top seal packing, which attaches a sheet of film to only the top of the tray. This leads to a significant decrease in film usage compared to conventional wrapping methods. The environmental impact can further be reduced by using trays made from recycled materials.

Weigh, seal, and label with a single machine

Only one machine is needed for weighing, sealing, and labeling, leading to increased productivity. It’s a solution that provides increased value for consumers, operators, and the environment.

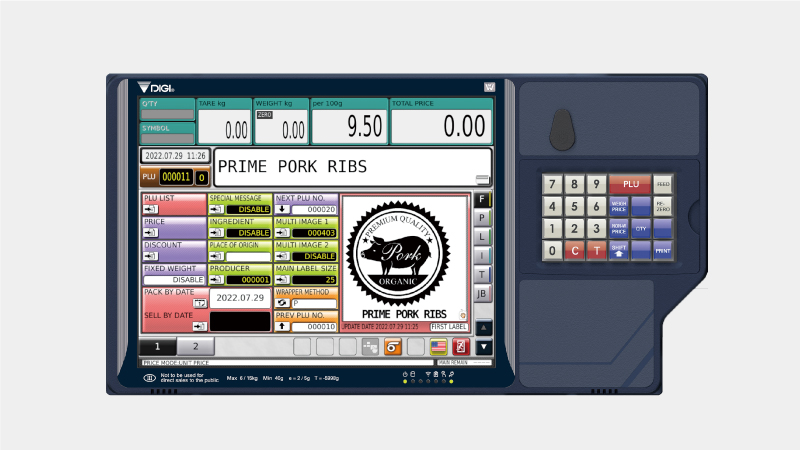

Simple operation panel

The 5600 series console boasts a large operation panel with high visibility that is easy to use. Since it is the same as other 5600 series equipment, operators familiar with other DIGI models will have no trouble adjusting.

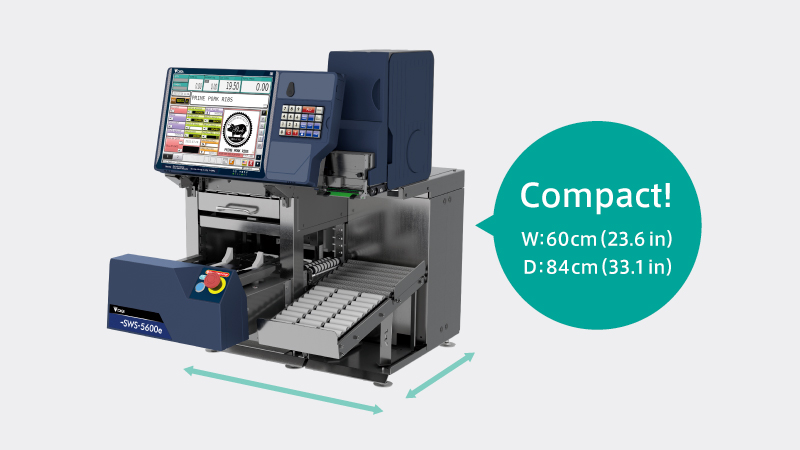

Space-saving compact footprint

The footprint of SWS-5600e is 60 cm (W) x 84 cm (D). Its compact design allows it to be easily placed in narrow spaces, such as behind the sales counter.

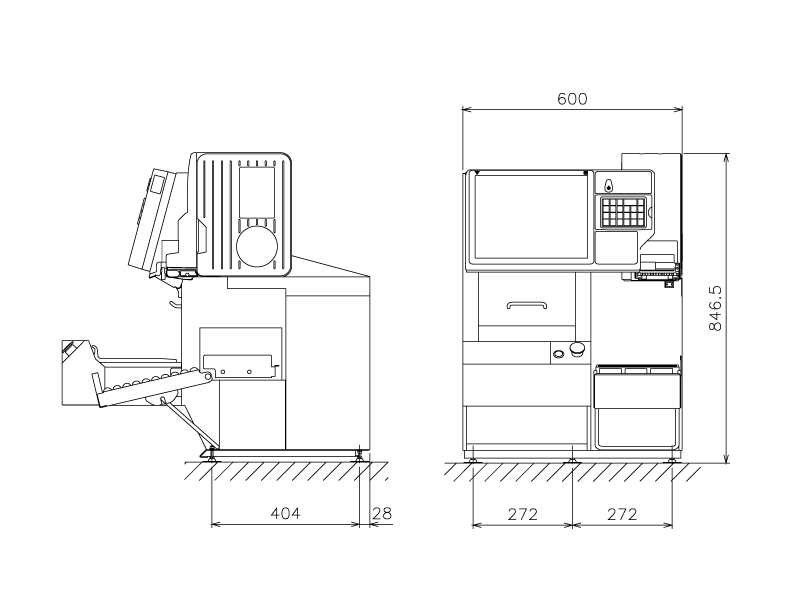

  • sws5600e_WP05_01_EN

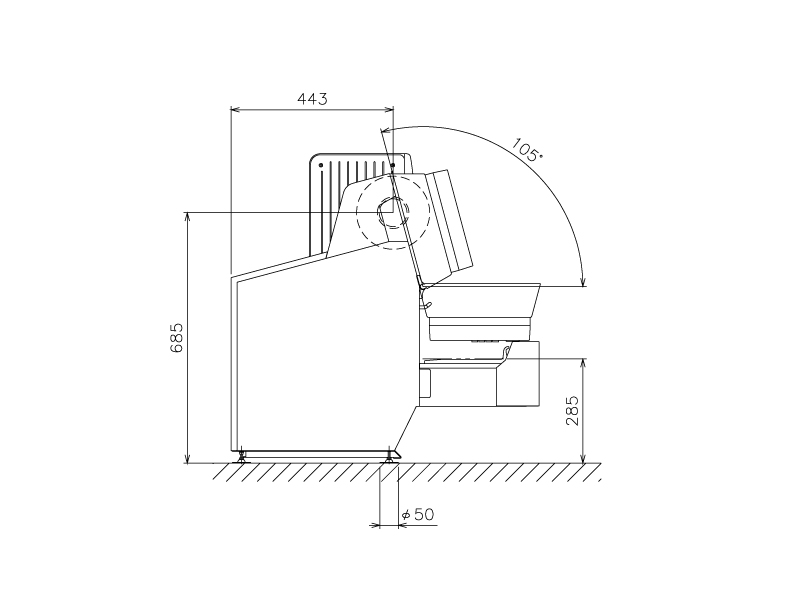

  • sws5600e_WP05_02_EN

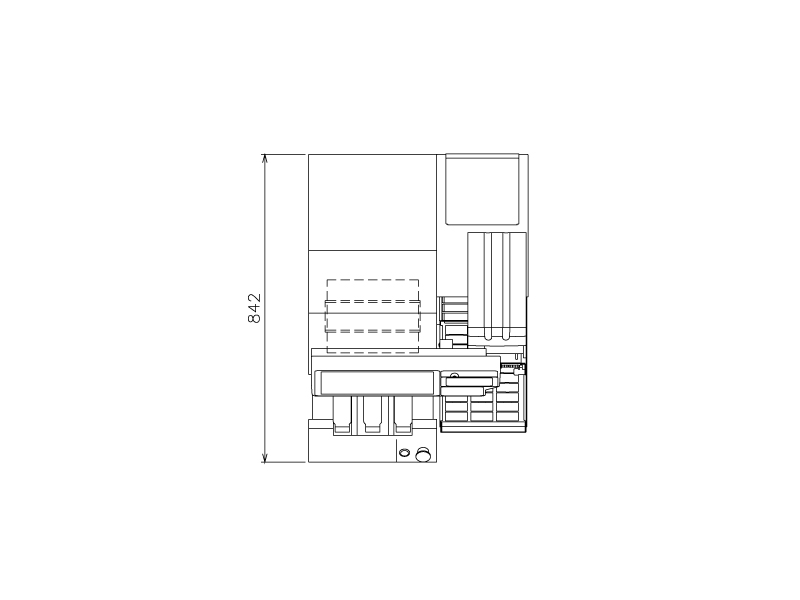

  • sws5600e_WP05_03_EN


Package Size Width: 240mm (9.4 inches)
Depth: 140mm or 190mm (5.5 or 7.5 inches)
Height: 30-80mm (1.2-3.1 inches)
Packing Speed
Max. 10 packages/min
Number of Film Rolls 1 roll
Film Width 250mm (9.8 inches)



Interval Type Multi Interval Single Interval
Max. 3/6kg
Max. 30 lbs
Scale Interval e=1/2g e=0.01 lbs
Weighing Range 20g-6kg 0.20lb-30 lbs
Max. Packing Capacity 50g-1kg 0.11lb-2.2 lbs


Thermal Printer

Label Type Linerless Label
Label Print Width Max. 44/59mm (1.73/2.3 inches)
Label Print Length Max. 300mm (11.8 inches)
Dot Density 12 dot/mm (300dpi)



Display Panel TFT LCD color (15 inches) touch panel
Power Consumption 220-240V;1φ;50/60Hz;1.0Kw
Net Weight 100kg
Operating Temperature 10 to 30℃ with no condensation
Operating Humidity 80% RH (Max.) with no condensation
