주의: 이 제품은 더 이상 판매를 하지 않고 지원이 되지 않습니다. 이 모델 또는 교체 모델에 대한 유지보수에 대하여 현지 담당자와 상담을 해주시기 바랍니다.

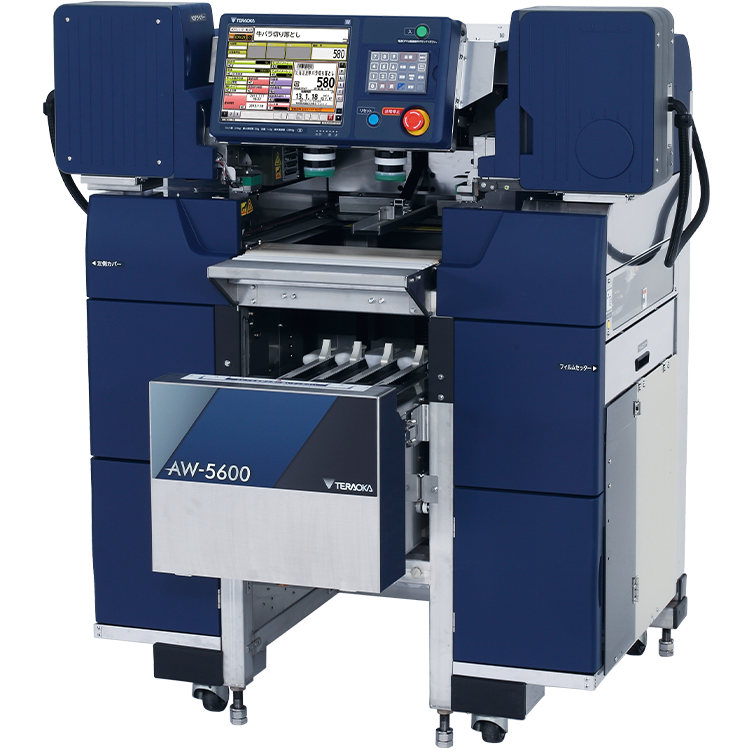

AW-5600AT
Fully integrated weigh-wrap-label system designed for operational comfort and environmental friendliness
규격
Wrapping
Wrapping Speed | Max. 36 packages/min. |
---|---|
Package Size | Width: 130 to 380mm / Height : 10 to 150mm / Depth : 80 to 260mm The maximum combination of the above dimension is not available and the available package size depends on the film width. |
Film Roll Capacity | One |

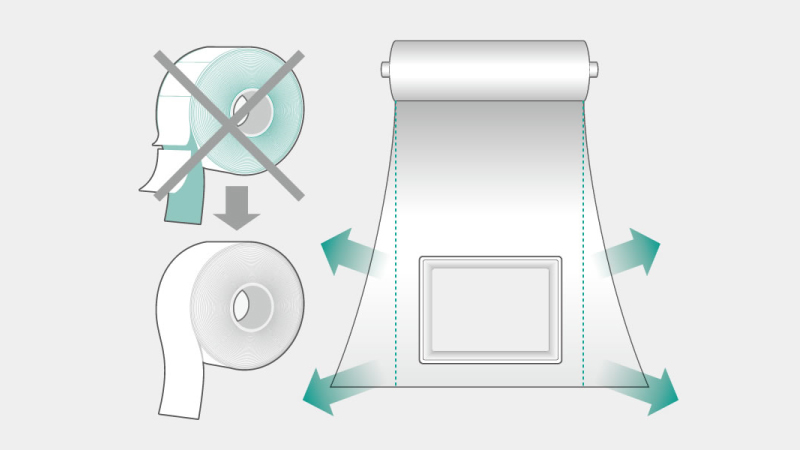

Film Size | Accepts 260 to 400mm rolls |
Weighing
Multi interval | Single inerval | |||
Capacity | Max. 6/15kg | Max. 3/6kg | Max. 30 lb | |
Scale Inerval | e=2/5g | e=1/2g | e=0.01 lb |
Labeling
Label Type | Thermal paper | |
---|---|---|
Labeling Application | Automatic | |
Label Size | Width: 40 to 80mm |
Net Weight | 400kg Single labeler type |
---|
