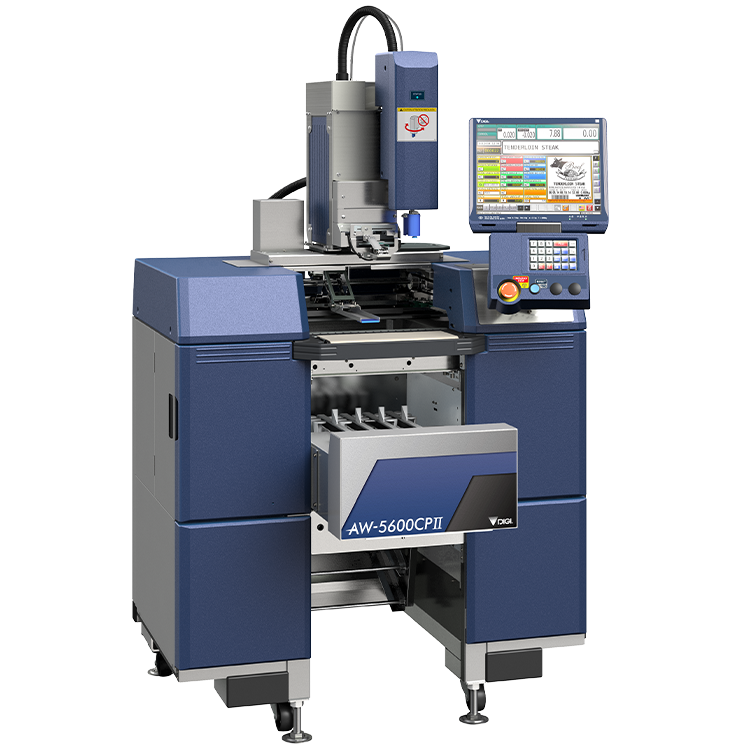

AW-5600CPII
Compact integrated weigh-wrap-label system
규격
Wrapping

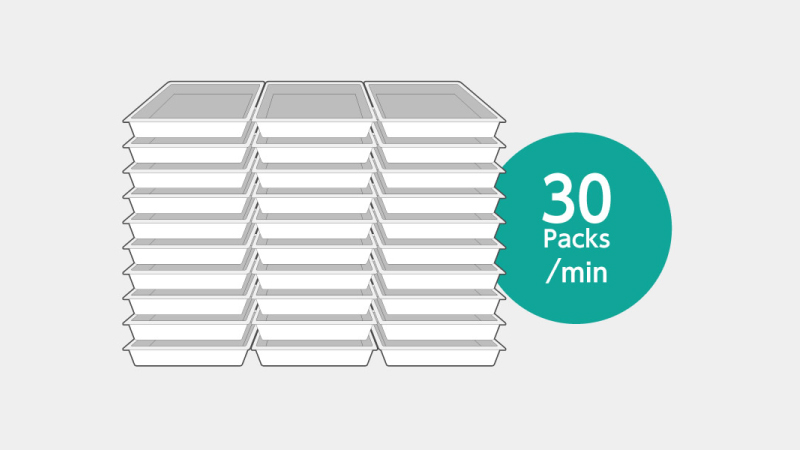

| Wrapping speed | Max. 30 packages/min. |
|---|---|
| Package size | Width: 130 to 350 mm/5.1-13.8 inches Height : 10 to 130 mm/0.4-5.1 inches Depth : 80 to 230 mm/3.1-9.0 inches * The combination of maximum size of each dimension cannot be used. The size of the package that can be wrapped also depends on the film used. |
| Film width | 300 to 500 mm |
Weighing
| Interval type | Multi interval | Single inerval | |
|---|---|---|---|
| Capacity | Max 3/6 kg | Max 6/15 kg | Max. 30 lb |
| Scale interval | e=1/2 g | e=2/5 g | e=0.01 lb |
| Weighing range | 20 g - 6 kg | 40 g - 15 kg | 0.20 - 30 lb |
| Max. wrapping capacity | 5 kg | 5 kg | 11 lb |
Labeling
| Labeling application | Automatic application | Manual application | ||
|---|---|---|---|---|
| Die-cut Label | Linerless Label | Die-cut Label | Linerless Label | |
| Label width | 40 - 80 mm/ 1.6-3.1 inches |
44 - 59 mm/ 1.73-2.3 inches |
25 - 80 mm/ 0.98-3.1 inches |
44 - 59 mm/ 1.73-2.3 inches |
| Label length | 28 - 105 mm/ 1.1-4.1 inches |
28 - 105 mm/ 1.1-4.1 inches |
20 - 150 mm/ 0.79-5.9 inches |
20 - 500 mm/ 0.79-19.7 inches* * Maximum printing length is 300 mm/11.8 inches
|
Operation console
| Display panel | TFT LCD color (15 inches) touch panel |
|---|---|
| Operation keys | Mechanical keys and touch screen |
| Memory for programmable files | 18 GB |
General
| Power source and power consumption | 208-240 V; 1 φ/3 φ; 60 Hz; 1.8 kVA,1.5 kW 220-240 V; 1 φ; 50/60 Hz; 1.8 kVA,1.5 kW |
|---|---|
| Net weight | Approx. 360 kg |
