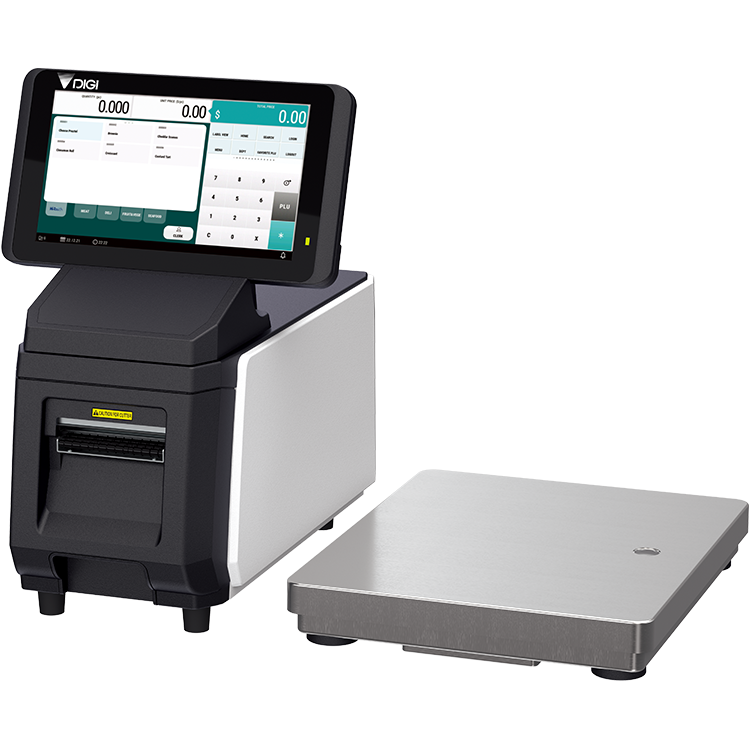

DPS-5000e Plus
Versatile and Compact Prepack Scale Solution
규격
Specification
Capacity Resolution | Max 15kg/ 30lb | Max 30kg | |
---|---|---|---|
Single Interval | 1/ 3,000 | e= 5g/ 0.01lb | e= 10g |
1/ 6,000 | - | e= 5g | |
1/ 7,500 | e= 2g | - | |
Capacity Resolution | Max 6/ 15kg | Max 15/ 30kg | |
Multi Interval | 1/ 3,000 | e= 2/ 5g | e= 5/ 10g |
Model | DPS-5000e Plus | ||||
---|---|---|---|---|---|

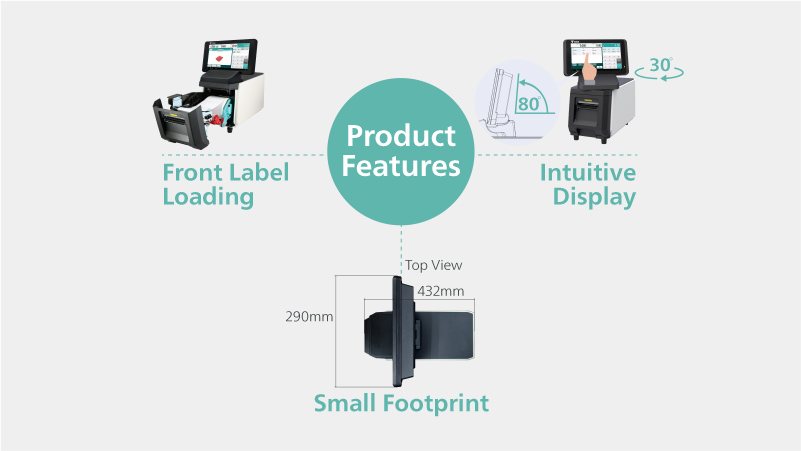

Dimension W x D x H (mm) | DPS-5000e Plus | 290 x 432 x 420 | |||
S-WR Platform (30kg) | 295 x 355 x 55 | ||||
Short Stand (Option) | 210 x 369 x 183 | ||||
Operator Display | 10.1" TFT WSVGA with Capacitive Touch | ||||
Display Size W x D (Pixels) | 1024 x 600 | ||||
Display Rotatable Degree | + / - 30 degree left and right ; 80 degree up and down | ||||
Label / Receipt | Types | Liner | Linerless with Auto-Cutter | ||
Roll Diameter | Max 125mm | Max 125mm | |||
Roll Width | Max 80mm | Max 80mm | |||
Print Width | Max 80mm | Max 80mm | |||
Printing Speed | Max 150mm / second* | Max 150mm / second* | |||
Print Resolution | 300 dpi | 300 dpi | |||
Barcode Type | Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, RSS, PDF417 (For Receipt Only), GS1, QR Code, Datamatrix | ||||
Power Source | AC 100V / 220V (Compliance to 80PLUS Power Saving**) | ||||
Operating Temperature | -10℃ to +40℃ | ||||
Humidity | 15% to 85% RH Non-Condensation | ||||
Standard Interface | 1 x RJ45 (Ethernet 10Base-T / 100Base-T), 4 x USB 2.0, 1 x SD Socket |
||||
Net Weight | DPS-5000e Plus | 12 kg | |||
S-WR Platform | 4.5 kg | ||||
Short Stand (Option) | 3.4 kg |
** 100-120Vac Gold (North America, Canada and Japan)
210-240Vac Silver (European, UK and most of Asia)
