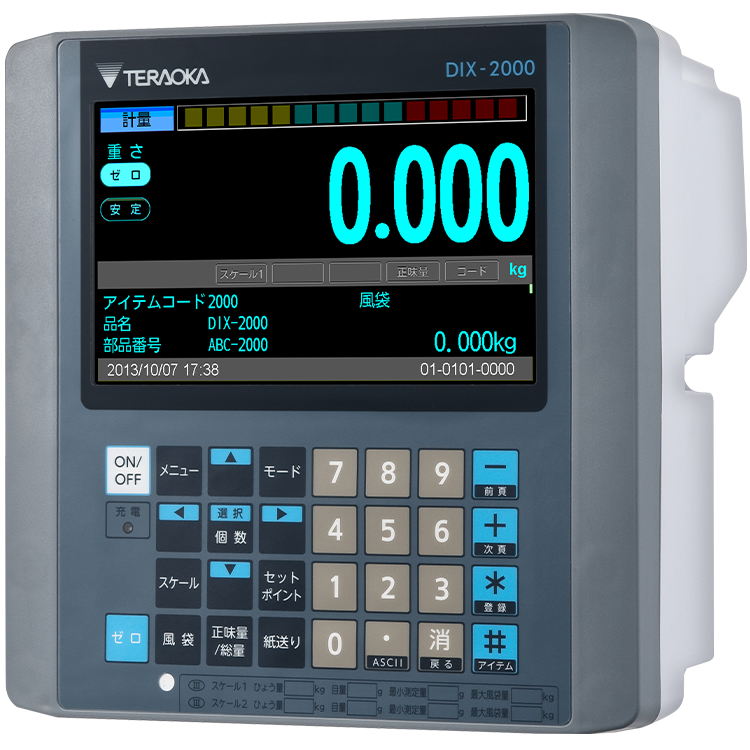

DIX-2000 Series

Function-rich indicator with large full-color display and high-level communications ability

Dimensions

DIX-2000シリーズ-WP05-1
DIX-2000シリーズ-WP05-2
DIX-2000シリーズ-WP05-3
Model DIX-2000 DIX-1000
Weighing
Display resolution 1/60000
Internal resolution 1/1000000
Loadcell excitation
DC5±10%, Remote Sensing
Up to 2 x 350 ohm loadcells
Loadcell sensitivity 0.4mV/V~4.0mV/V
AD conversion rate 50 times/sec.
Interface
Scale control RS-232C, 2 scales, 5 set points output, 3 remote control input
Memory USB(for exclusive use USB memory), Ethernet USB(for exclusive use USB memory)
Printing (for built-in printer type only)
Printing method  Dot impact
Roll Size Width: 44mm, Outer Diameter: 50mm, Inner Diameter: 12mm, Length: 23m
General
Standard type/ built-in printer type AC100V±10%(50/60Hz)
Standard type/ built-in battery type
100V/240V with AC Adapter
Power source: 36V, 1.81A
Charging time: Approx. 6 hours
Power consumption
Standard Type: Max. 11W
Built-in Printer Type: Max. 13W
Built-in Battery Type: Max. 36W(operating while charging)
Service environment
Temperature:  -10 to 40 degrees C (no condensation)
Humidity: 15-85%(no condensation)
International Protection compliance IP65(standard type/ built-in battery type only)
