Fully integrated weigh-wrap-label system designed for operational comfort and environmental friendliness

AW-5600ATII

Retail

Weigh-Wrap-Labelers

Main Features

AW-5600ATII is a high-performance automatic weigh-wrap-label system that’s reliable, productive, and easy to operate. Efficient use of energy and consumables helps to minimize both cost and the machine’s ecological footprint.

Download brochure here

Wrap, weigh, and label with a single machine

The AW-5600ATII allows you to weigh, wrap, and label on one machine with one operator. Watch the video to see how it processes products with speed and agility.

Maximize productivity

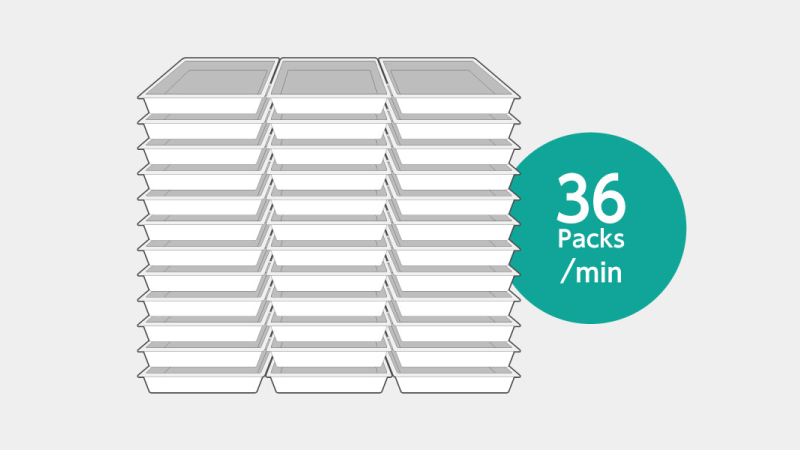

Increase output with high-speed processing of up to 36 packs per minute.

Simply place a product tray on the infeed, and in seconds, the machine seals the item and applies both POP and product labels with accurate weight and price information.

The machine automatically detects and adjusts to different tray sizes, further simplifying operation.

Save time and cost—reduce waste

Super-stretch technology means less amount of film is required to cover the pack’s surface area.

This efficient use of film cuts down on waste and ensures that you get more out of a single roll, leading to a reduction in both the cost of consumables and maintenance downtime.

Linerless labels contain no paper backing, eliminating paper waste. And with energy conservation mode, you can reduce power consumption when the machine is on standby.

Enhance product appearance

DIGI’s wrapping solutions stretch film over the product with optimal tension for a high-quality finish, and flexible label design broadens the possibilities for attractive product promotion.

With linerless labels, label length is automatically adjusted to fit the content, eliminating blank space while guaranteeing that necessary product information is clearly displayed.

These features ensure top-quality presentation to enhance the value of your product.

Specifications

Dimensions

Wrapping

Wrapping speed	Max 36 packages/min.
Package size	Width: 130-380 mm (5.1-15 inches) Height: 10-150 mm (0.4-5.9 inches) Depth: 80-254 mm (3.1-10 inches) *Combining the maximum of each dimension is not possible. Maximum package size also depends on what film is used.
Number of film roll	One
Film width	300-450 mm (12-18 inches)

Weighing

Interval type	Multi interval		Single interval
Capacity	Max 3/6 kg	Max 6/15 kg	Max 30 lbs.
Scale interval	e=1/2 g	e=2/5 g	e=0.01 lb.
Weighing range	20 g-6 kg	40 g-15 kg	0.20-30 lbs.
Max. wrapping capacity	5 kg	5 kg	11 lbs.

Printer and labeler

Type	Thermal printer
Labeling application	Automatic
Dot density	12 dot/mm (300dpi)
Label roll diameter	Max 210 mm (8.2 inches)
Label roll core diameter	76 mm (3.0 inches)
Label width	40-80 mm (1.6-3.1 inches)
Label length	28-105 mm (1.1-4.1 inches)

Operation console

Display panel	TFT LCD color (15 inches) touch panel
Operation keys	Mechanical keys and touch screen
Memory for programmable files	18 GB

General

Power source and power consumption	208-240 V; 1 φ/3 φ; 60 Hz; 2.2 kVA,2.2 kW 220-240 V; 1 φ; 50/60 Hz; 2.2 kVA,2.2 kW
Dimensions	1410/55.5(W)×1535/60.4(D)×1465/57.7(H) mm/inches
Net weight	Approx. 400 kg (881.8 lbs.) (Single Labeler Type)
Operation humidity	90%RH (max) with no condensation

Variations

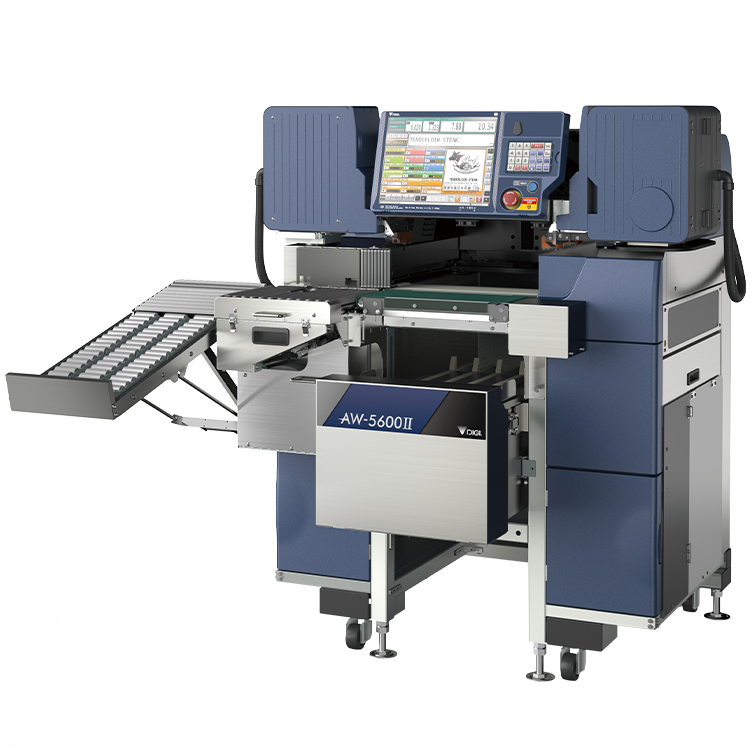

Model with pack accumulator

AW-5600ATII

This model is equipped with a pack accumulator to accommodate trays after wrapping and labeling.

Model with promotional labeler

AW-5600ATII POP

In additional to product labels, this model is equipped with a labeler for promotional labels. The machine can automatically apply both product labels and promotional labels simultaneously.
Linerless labels can be applied by all labelers.

Model with bottom labeler

AW-5600ATII BP

In additional to product labels, this model is equipped with a labeler for bottom label. The machine can automatically apply both product labels and bottom labels simultaneously.
Linerless labels can be applied by all labelers.
