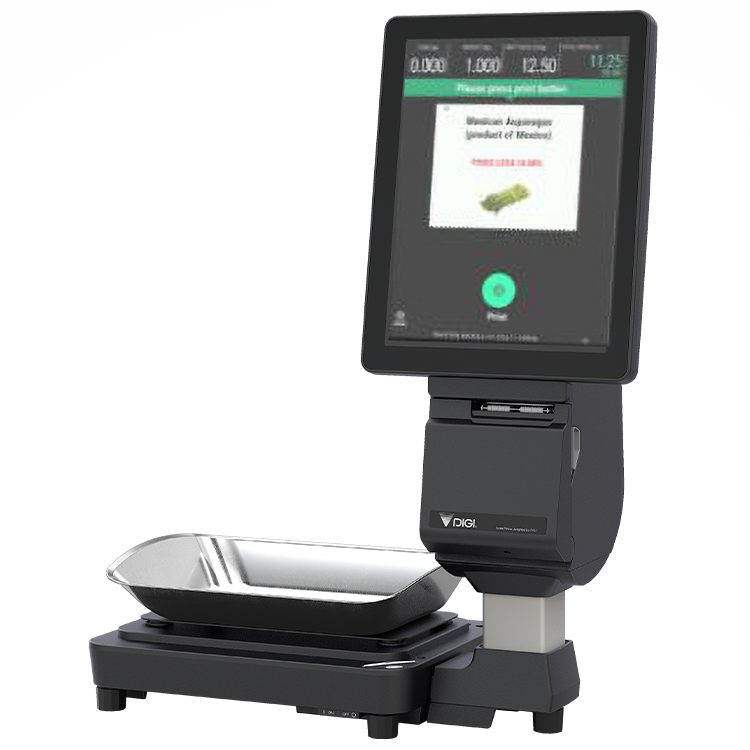

SM-6000SSR/SSP

Self-service scale that supports consumers' eco-lifestyle

Dimensions

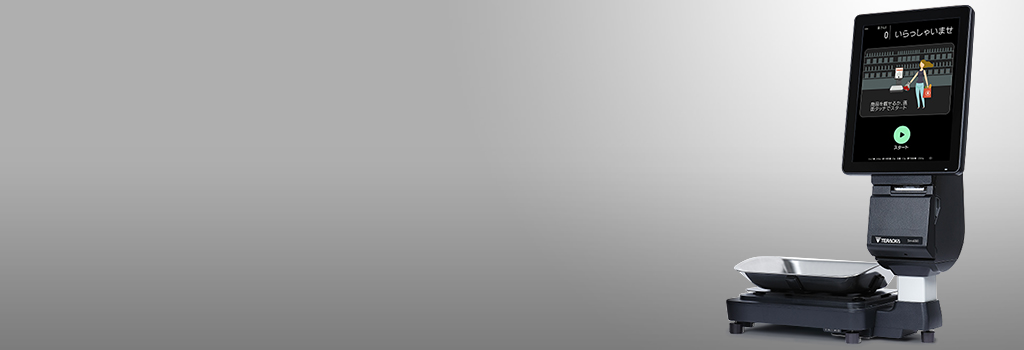

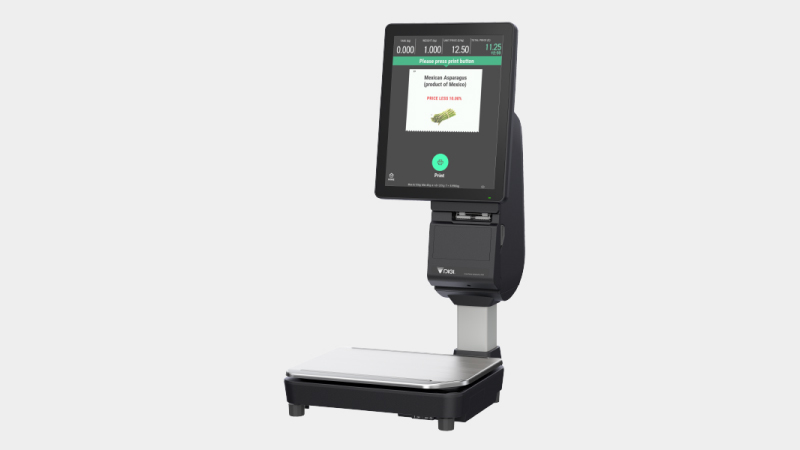

SM-6000 SSR

*SM-6000 SSR

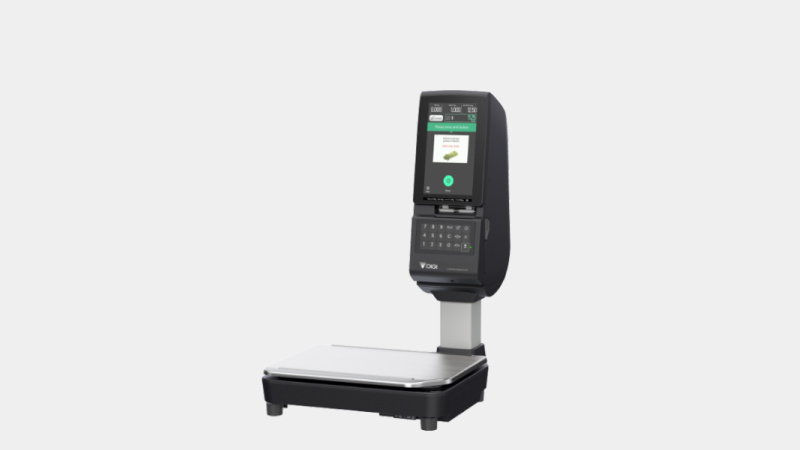

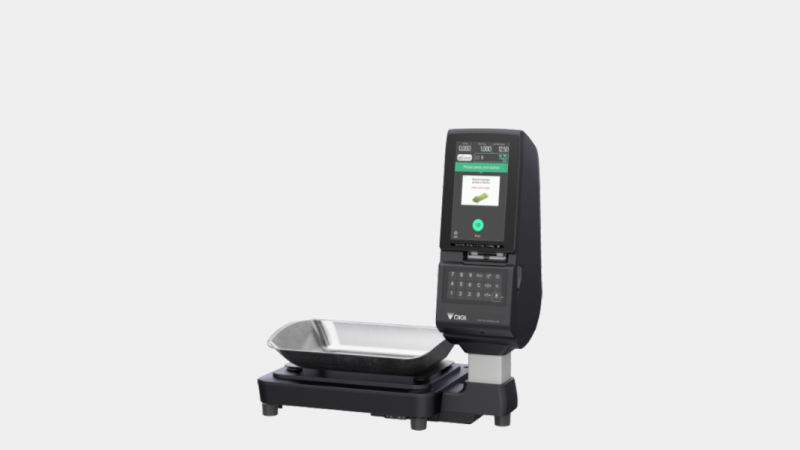

SM-6000 SSP

*SM-6000 SSP

Specification

Capacity Max 6kg Max 15kg/ 30lb Max 30kg
Single Interval 1/ 3,000 e= 2g e= 5g/ 0.01lb e= 10g
1/ 6,000 or 1/ 7,500 e= 1g e= 2g e= 5g
Capacity Max 3/ 6kg Max 6kg/ 15kg Max 15kg/ 30kg
Multi Interval 1/ 3,000 e= 1/ 2g e= 2/ 5g e= 5/ 10g


Model SM-6000SSR 8" SM-6000SSR 15" SM-6000SSP 8" SM-6000SSP 15"
Dimension
W x D x H (mm)
SM-6000 SSR/SSP 515 × 284 × 552 583 × 284 × 708 364 × 464 × 606 364 × 464 × 762
SSR Stand (Option) 580 x 580 x 755

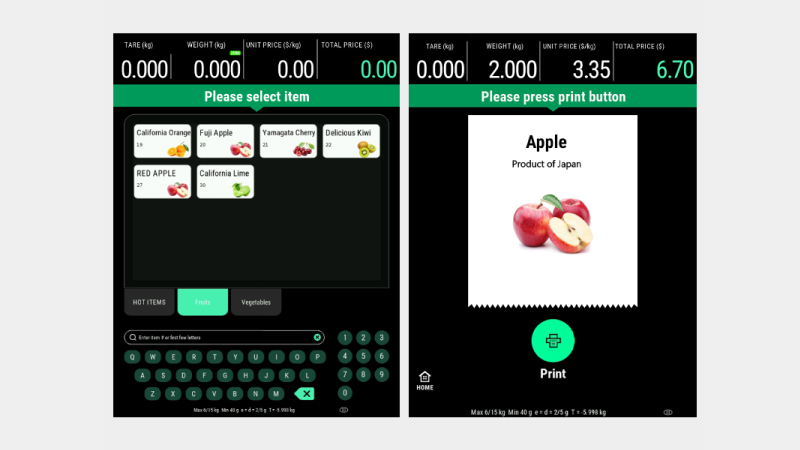

Operator Display 8" TFT WVGA with Capacitive Touch (480×800)
15" TFT XGA with Capacitive Touch (768×1024)
Display Resolution 1/3000, 1/6000, 1/7500
Keyboard 18 × Function Keys (For 8" Operator only)

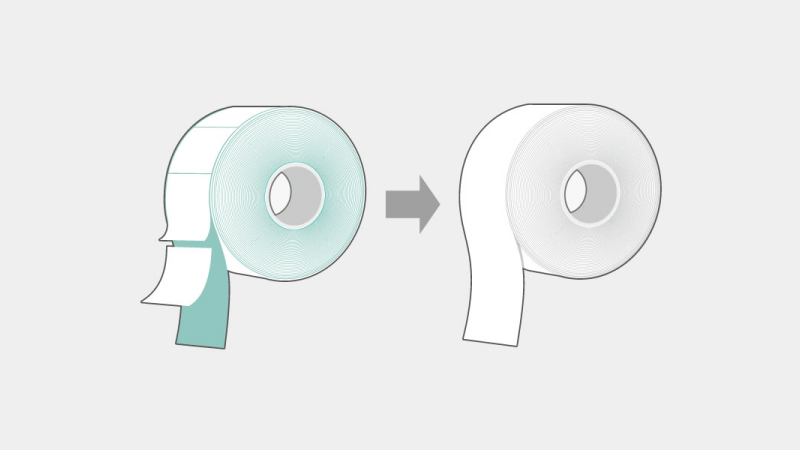

Label / Receipt Types Liner Less With Auto-Cutter
Roll Diameter 95mm (Max)
Print Width 60mm (Max)
Paper Width 62mm (Max)
Printing Speed 150mm / second* (Max)
Print Resolution 300 dpi
Power Source Compiled to 80PLUS Power Saving**
Operating Temperature -10℃ to +40℃
Humidity 15% to 85% RH Non-Condensing
Standard Interface Ethernet 10 /100 Base T, 4×USB 2.0, RJ11
Options Wireless LAN IEEE 802.11 a / b / g / n / ac, e.Sense, BYOC, Contactless, e.Label with Hi-Touch, InfoTag, Base Station
Factory Options Auto Tilt Sensor, Speed ID
Net Weight SM-6000 SSP 13.7 kg 15.6 kg 13.3 kg 14.9 kg
Net Weight Stand (Option) 32 kg
*To achieve maximum print speed, high sensitivity thermal paper is necessary.
