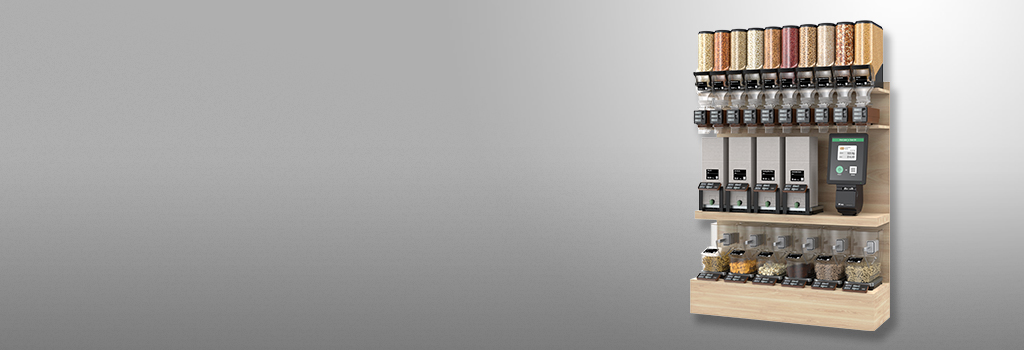

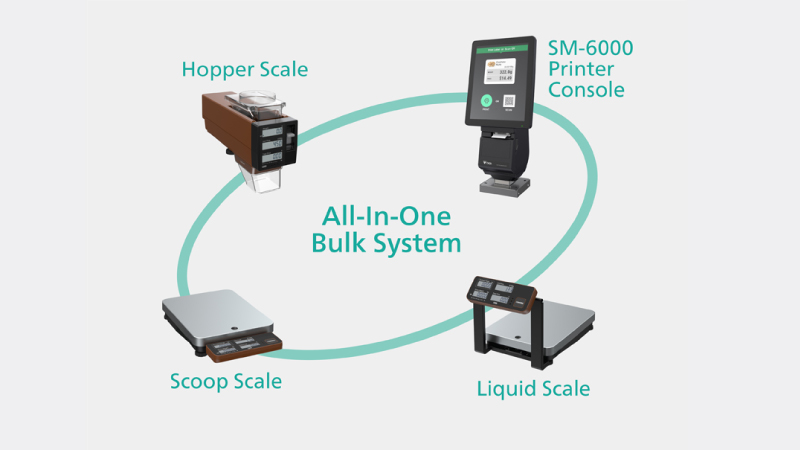

All-In-One Bulk System
No Tare, No Fuss, More Fun.

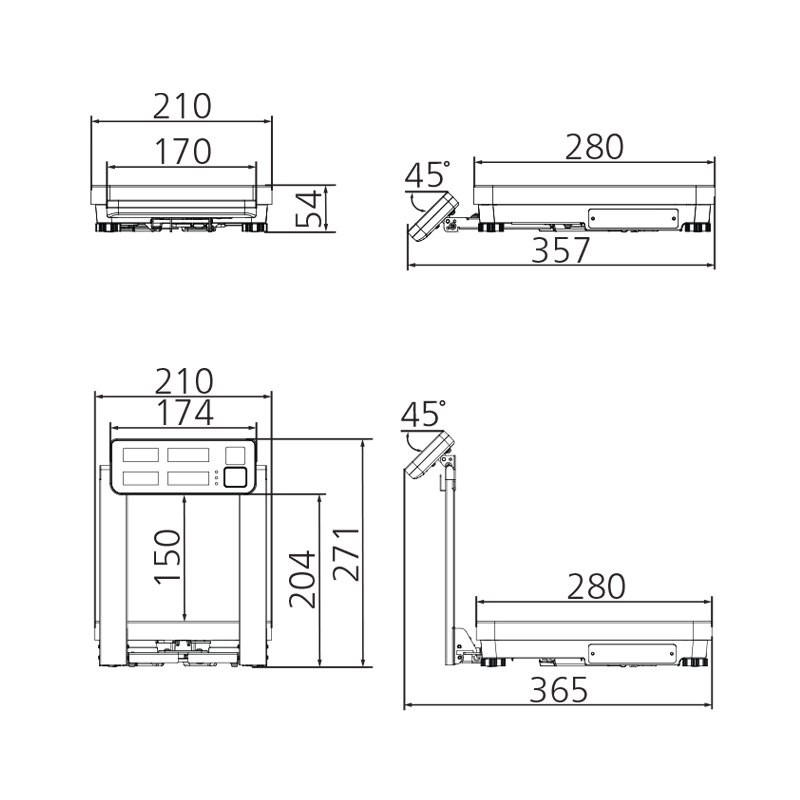

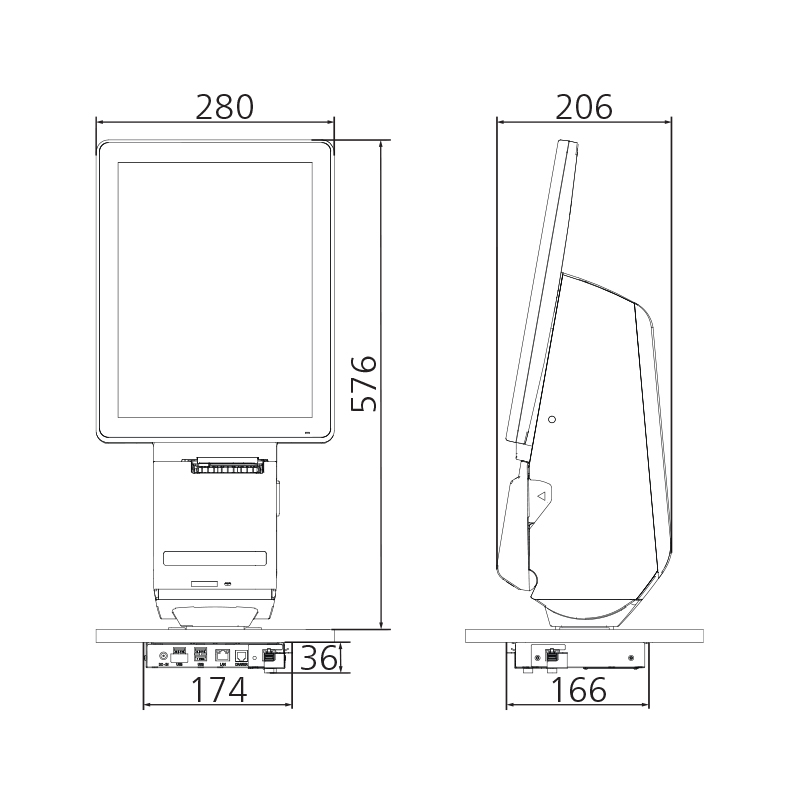

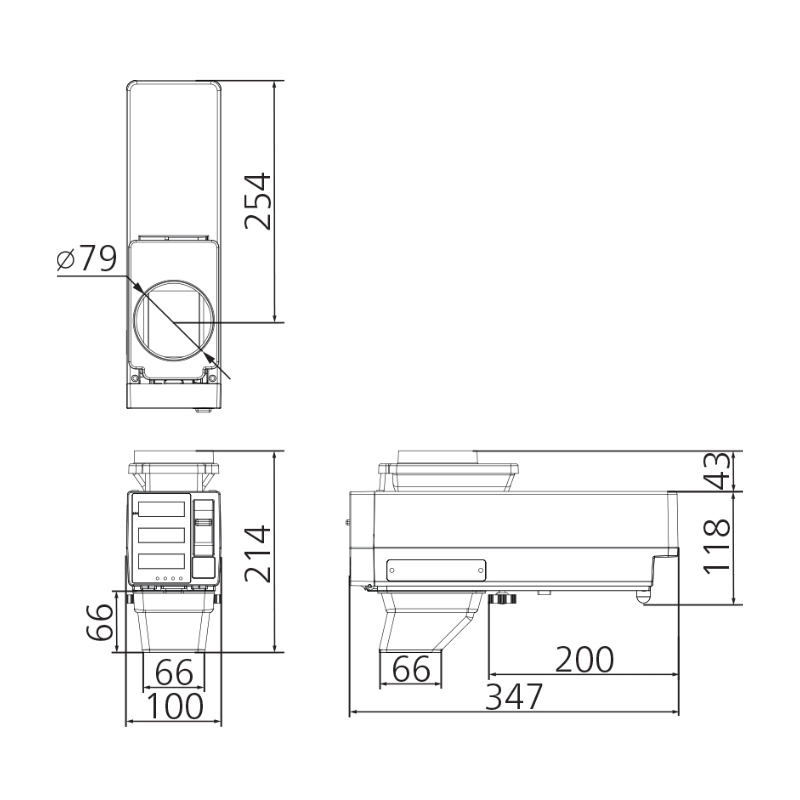

Dimensions
Specification
| Capacity | Model | Resolution | Weighing Range | Deviation |
|---|---|---|---|---|

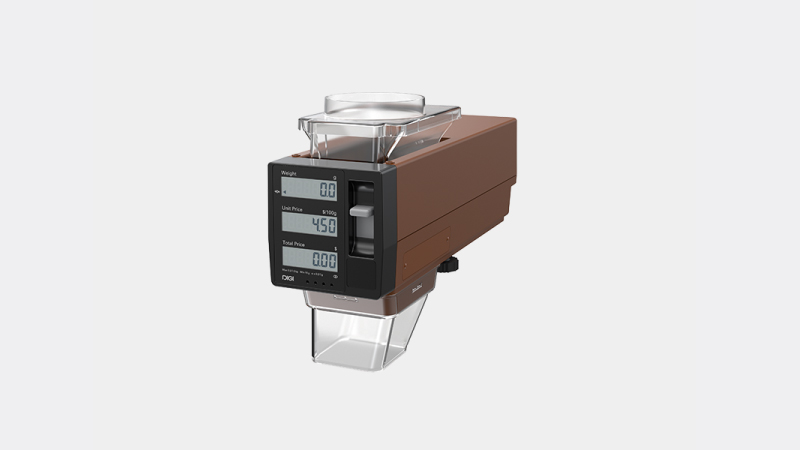

| Max 1.5kg | Hopper Scale | 1 / 1,000 | 0 - 0.5kg | e = 0.5g |
| 1 / 1,500 | 0.5 - 1.5kg | e = 1g | ||

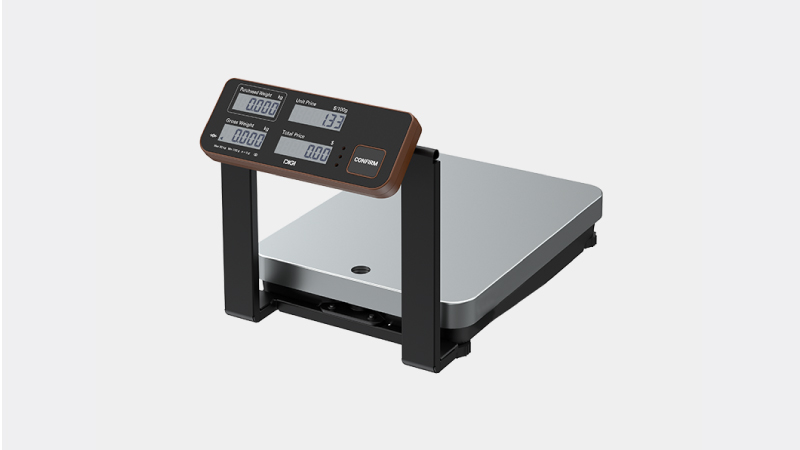

| Max 30kg | Scoop and Liquid Scale | 1 / 6,000 | 0 - 30kg | e = 5g |
| Model | Hopper Scale | Scoop Scale | Liquid Scale | SM-6000 Printer Console | |||
|---|---|---|---|---|---|---|---|
| Dimension W x D x H (mm) | 100 x 347 x 214 | 210 x 357 x 54 | 210 x 365 x 271 | 280 x 206 x 576 | |||
| Display | 3 x 7 Segments LCD (6 digits) |
4 x 7 Segments LCD (5 digits and 6 digits x 2 each) |
15" TFT XGA with Capacitive Touch (768 x 1024) |
||||
| Keyboard | 1 x Confirm Button | ― | |||||
| Label / Receipt | Types | ― | Linerless With Auto-Cutter | ||||
| Roll Diameter | Max 95mm | ||||||
| Roll Width | Max 62mm | ||||||
| Print Width | Max 61mm | ||||||
| Printing Speed | Max 150mm / second* | ||||||
| Print Resolution | 300 dpi | ||||||
| Power Source | DC 7V (Max 100mA) | AC - DC Power Adapter | |||||
| Interface (with DC Power) | RS-485 (RJ-45 Connector) | ||||||
| Maximum Connection | Support up to 100 units of Hopper, Scoop and Liquid Scales per SM-6000 Printer Console | ||||||
| Operating Temperature | -10℃ to +40℃ | ||||||
| Humidity | 15% to 85% RH Non-Condensation | ||||||
| Net Weight | 1.4 kg | 3.3 kg | 3.7 kg | 8 kg | |||
