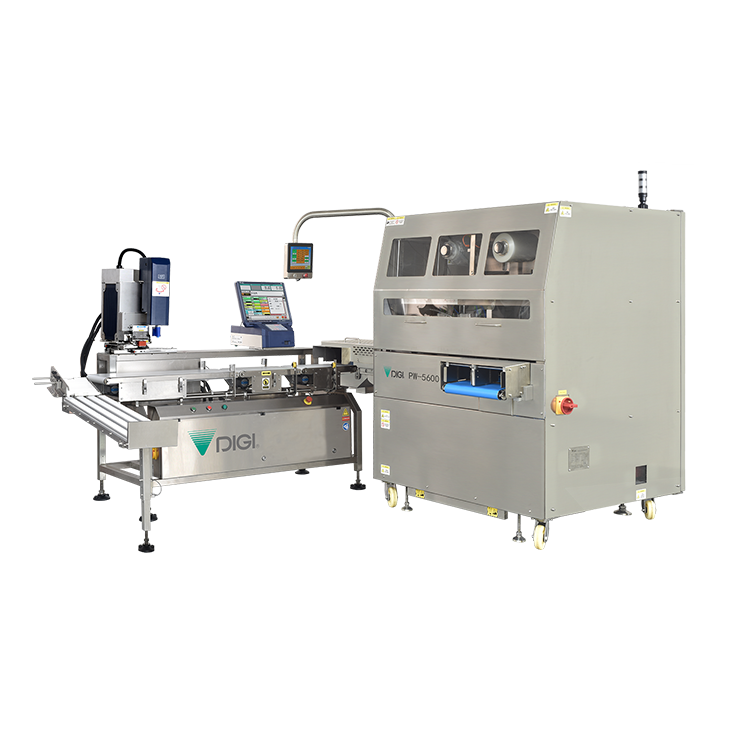

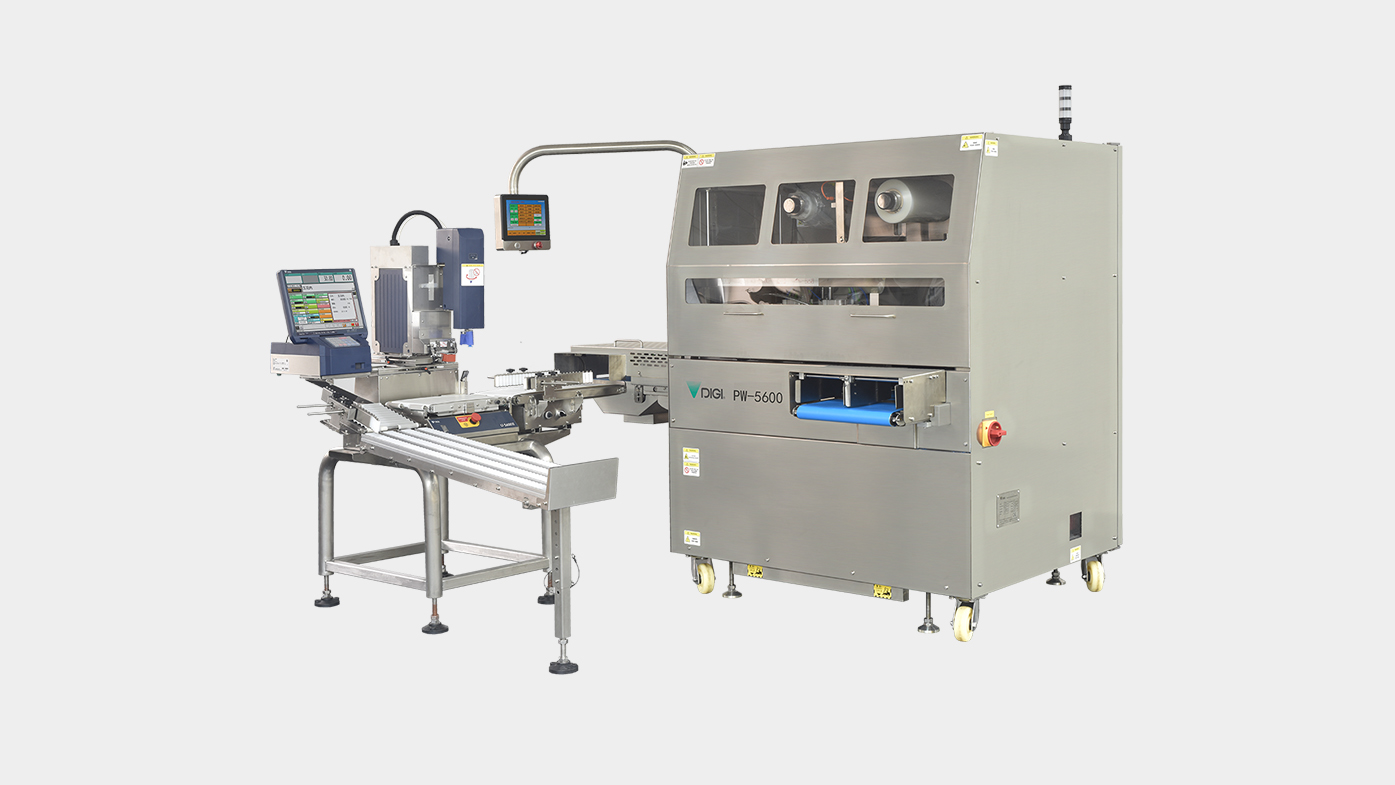

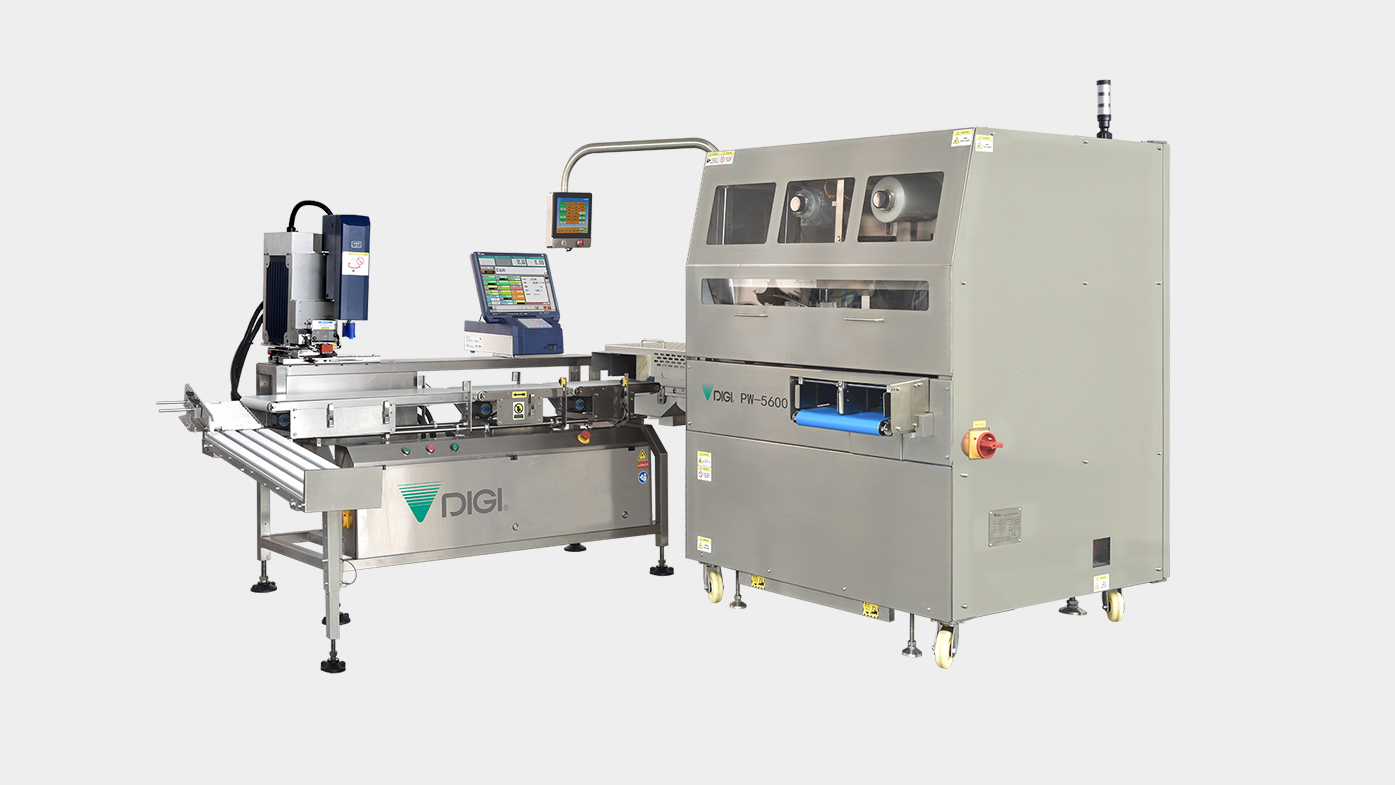

MAP/skin packaging machine with integrated
automatic weigh-labeler


Food Industry

Main Features

PW-5600LL is versatile and efficient MAP/skin packaging machine with an integrated automatic weigh labeler offering 3 different sealing modes - MAP (Modified Atmosphere Packing), VSP (Vacuum Skin Packing) and Seal Only (Natural gas).

Pack, weigh and label with only one operator

Fulfilling the needs for seafood and meat packaging in supermarkets, processing centers and food factories.
One operator can pack, weigh, and label all in one efficient process.

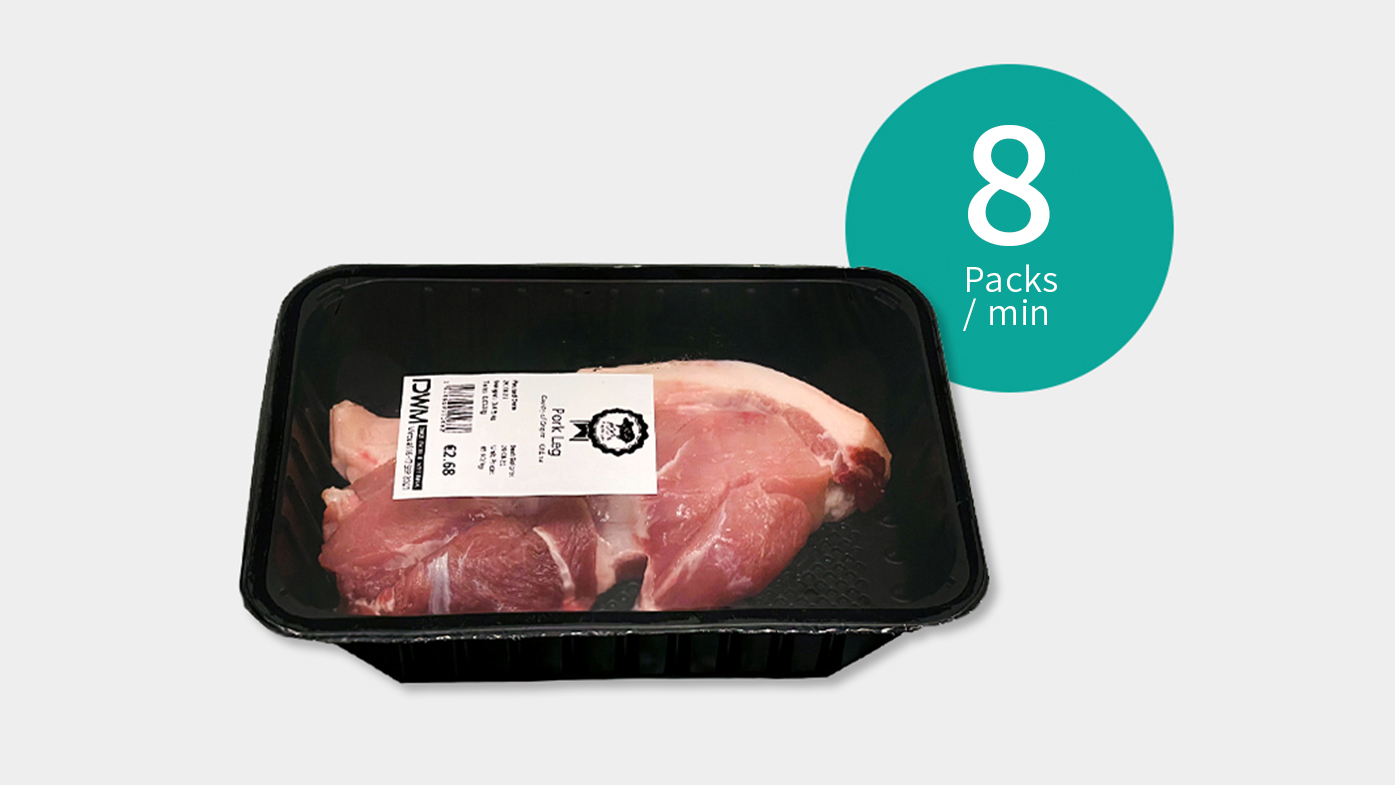

High quality Modified Atmosphere Packing (MAP)

  • MAP packing improves shelf-life (around 2 weeks)
  • Gas replacement rate ≥99%
  • Maintains the natural color of the food
  • Refilling O2 makes red meat look fresher for longer
  • Up to 12 packs/minute including weighing and labeling

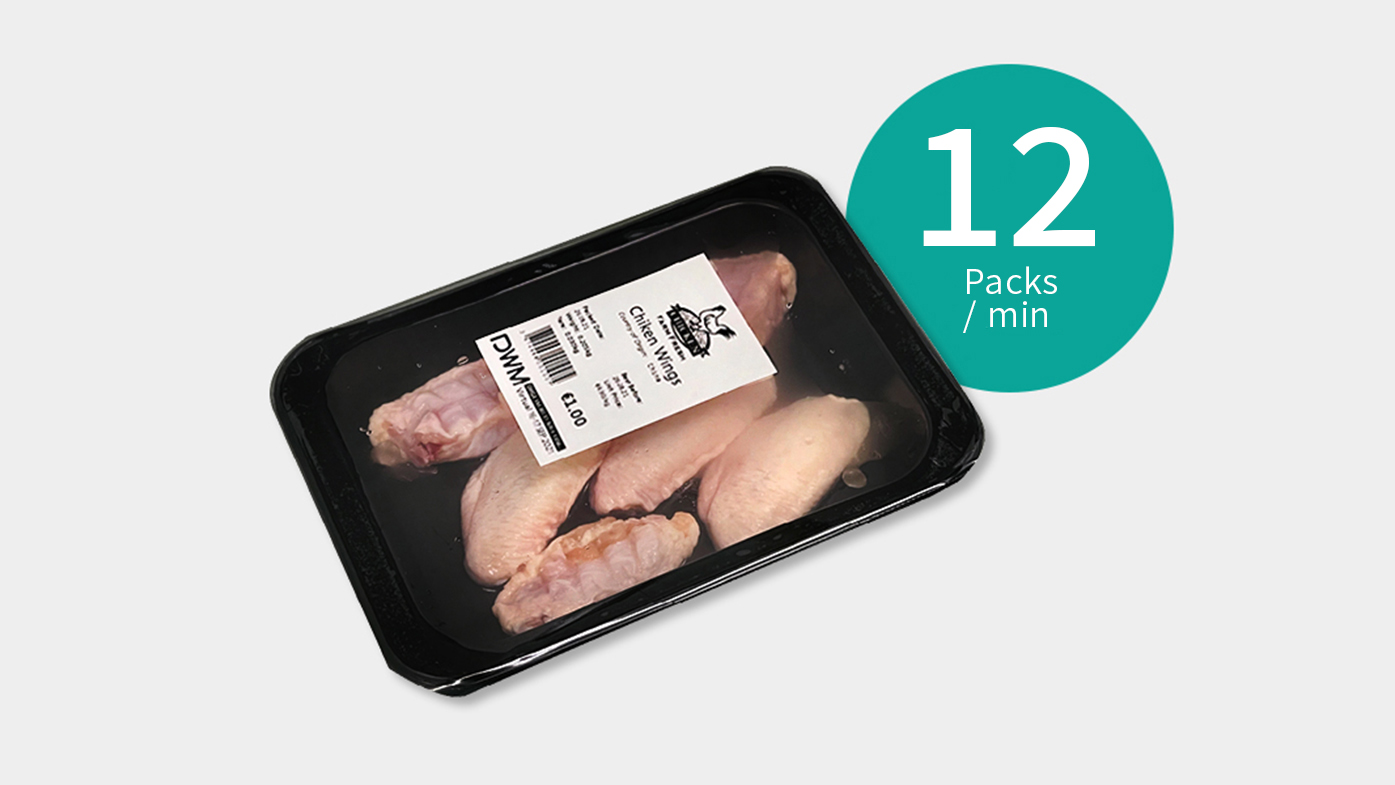

Hygienic Vacuum Skin Packing (VSP)

  • VSP packing can make greatly increase shelf-life (normally more than a month)
  • Isolate natural gas and avoid the reproduction and growth of bacteria
  • Maintain the quality and shape of the product for greater shelf appeal
  • Up to 12 packs/minute including weighing and labeling


Fast top sealing

The PW-5600LL also provides a fast and hygienic top sealing only option, with speeds of up to 20 packs/minute including weighing and DIGI linerless labeling.

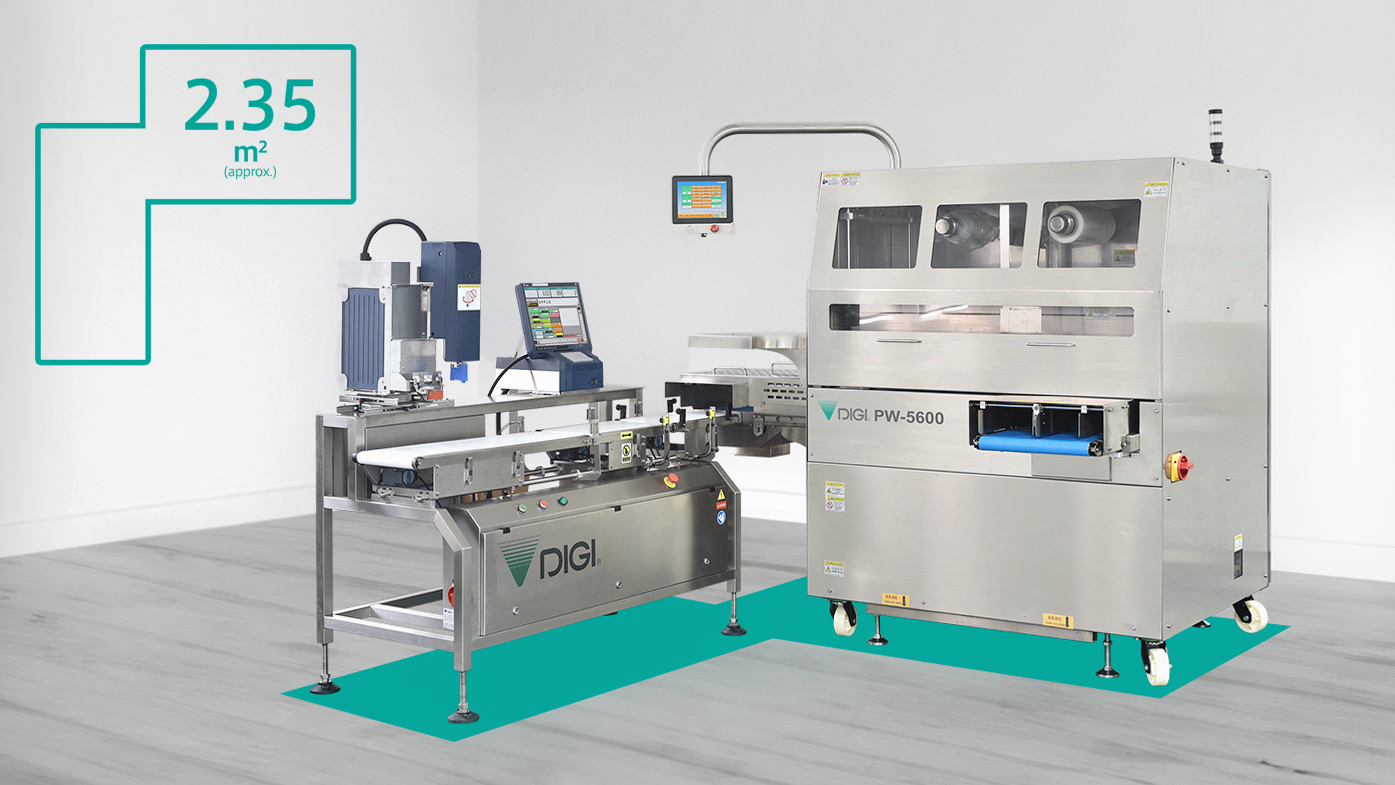

Compact footprint

The compact footprint offers flexibility and maximum space efficiency especially for supermarket backroom production.

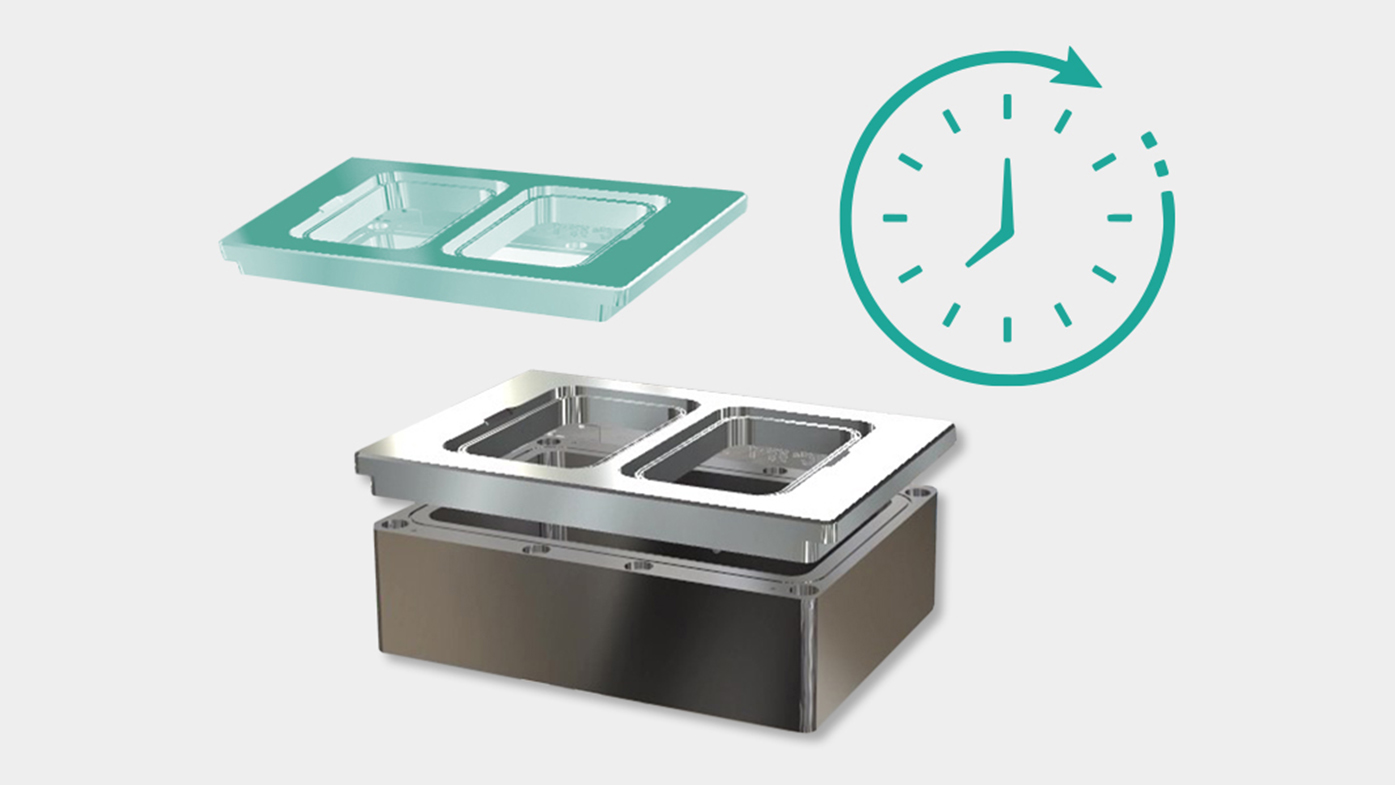

Simple and labor-saving mold changing

Supporting 3 sets of molds for different products, the automatic lifting shelf makes switching molds quick and easy as it stops at the accurate position every time. Reheating only requires 10 minutes after switching.


Variable length label printing using auto-sizing and auto-cutting

The auto-label-sizing feature eliminates unused space on the label and automatically adjusts the label size. This reduces the label cost and makes labels more attractive. Linerless labels automatically adjust the label size to the content, using a continuous roll of adhesive label material. This means you can print a different-sized label for each product, and longer labels are simple to print.

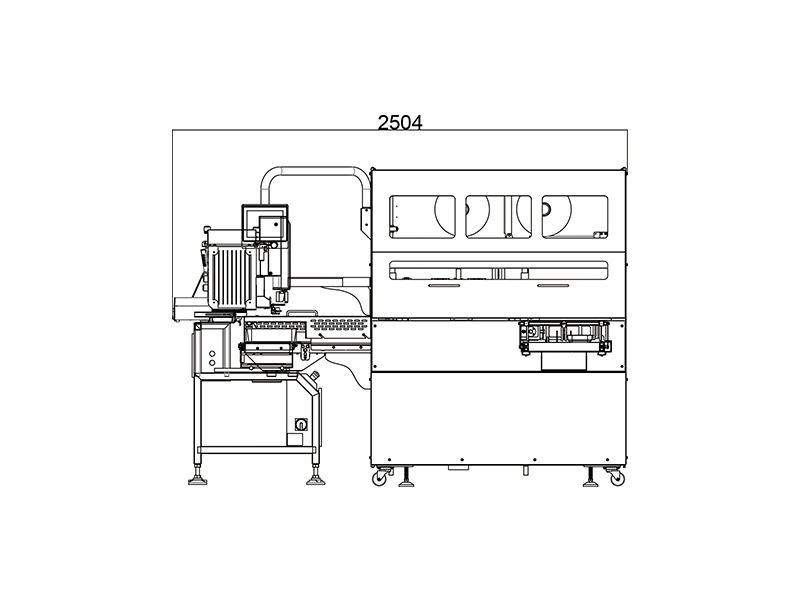

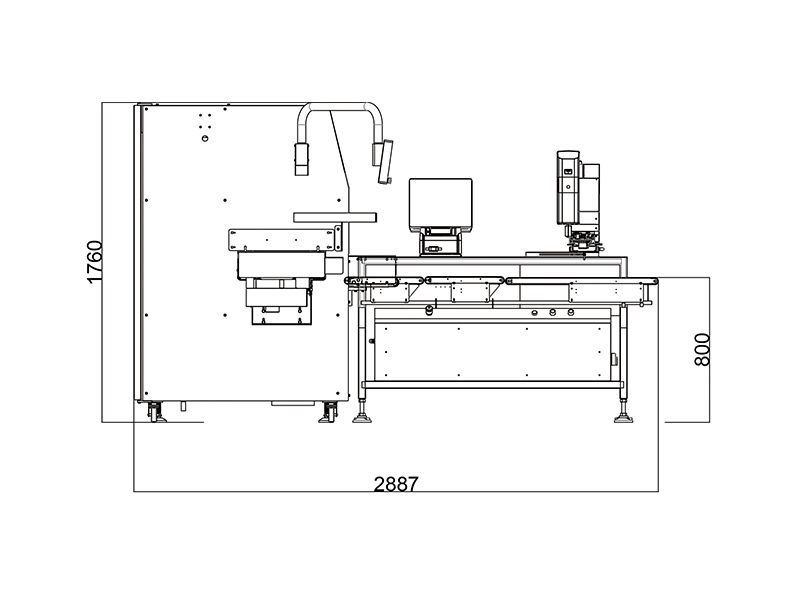

  • Front View
  • Side View

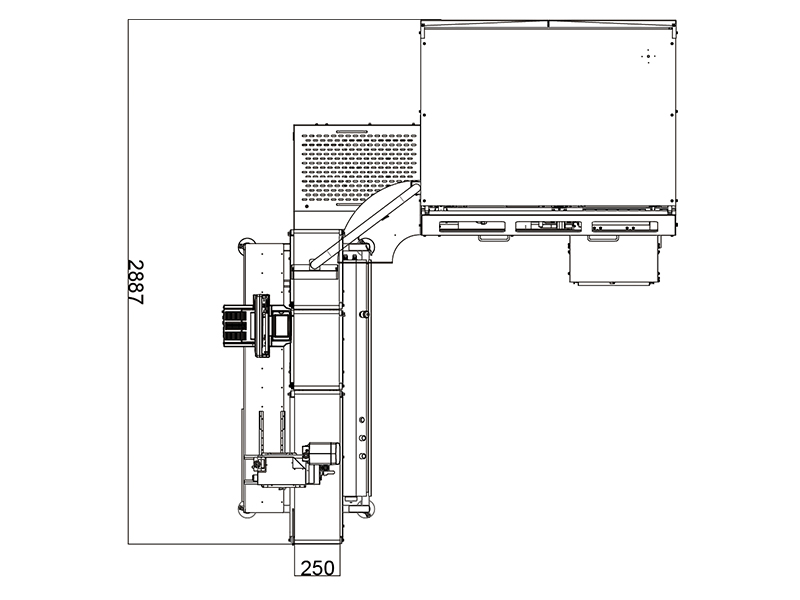

  • Top View


Packaging option MAP, VSP, Sealing
Function Front infeed, left or right outfeed
Vacuum pump 100m3/h, Oxygen pump
Compressor External
Power supply 380V/200V 3 phase
Power consumption 8kW
Gas consumption 0.5m³/min
Air consumption 1m³/min
Gas tank volume 0.185m³
Gas flush option 3 (N2, CO2, O2)
Film width 305mm
Molds size (LxW) and arrangement 15 cm x 23 cm: 2*1=2
18 cm x 25 cm: 2*1=2
21 cmx 30 cm: 1*1=1
Molds changeover Semi-automatic
Tray materials PSE, PP
Film Unprinted film, Printed film
Diameter of film roll max. 300mm
Machine weight (kg) 1100kg
Machine size (L mm x W mm x H mm) 1960 x 2217 x 1742
Cycles / min MAP 5~6
Cycles / min SKIN 5~6
Cycles / min SEAL ONLY 10

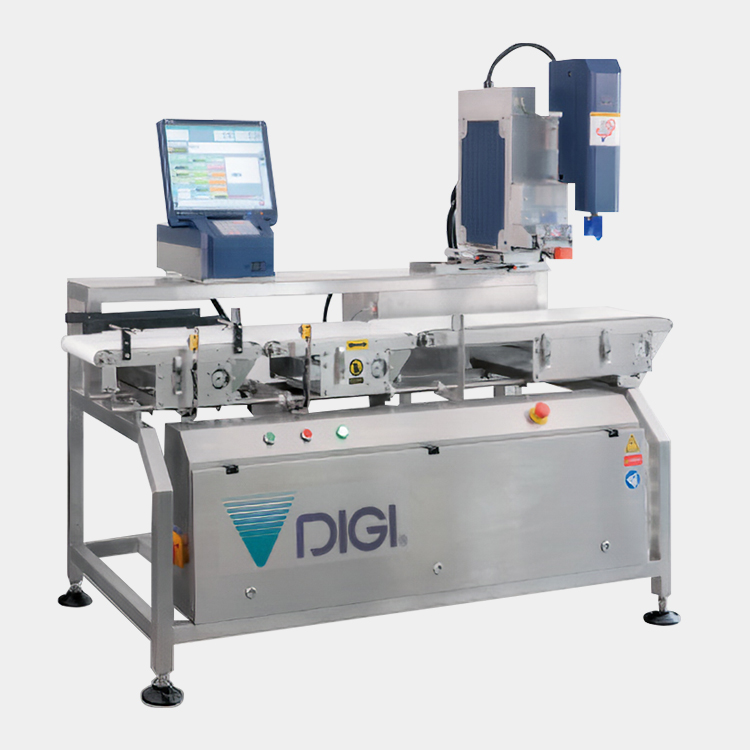

Weighing & Labeling

Label type Linerless
Label size Automatic application Width 44-78mm / 1.73-3.07inches
Length 28-105mm / 1.10-4.13inches
Manual application Width 44-78mm / 1.73-3.07inches
Length 20-500mm / 0.79-19.69inches*
*max. length 300mm / 11.8inches
Labeling angle 0 or 90 or 180 or 270 degrees
Dot density 12dot / mm (300dpi)
Font True type font
Speed Max. 35 packages / min
Display panel TFT LCD color 15" touch panel
Memory for programmable files 32GB
Weighing Range 0~3000g
Interval 1g
Conveyor height 800mm±50mm
Outfeed conveyor length 800mm
Weighing conveyor length 400mm
Belt width 250mm
Power consumption 660W
Power supply AC220V/110V 50/60Hz
