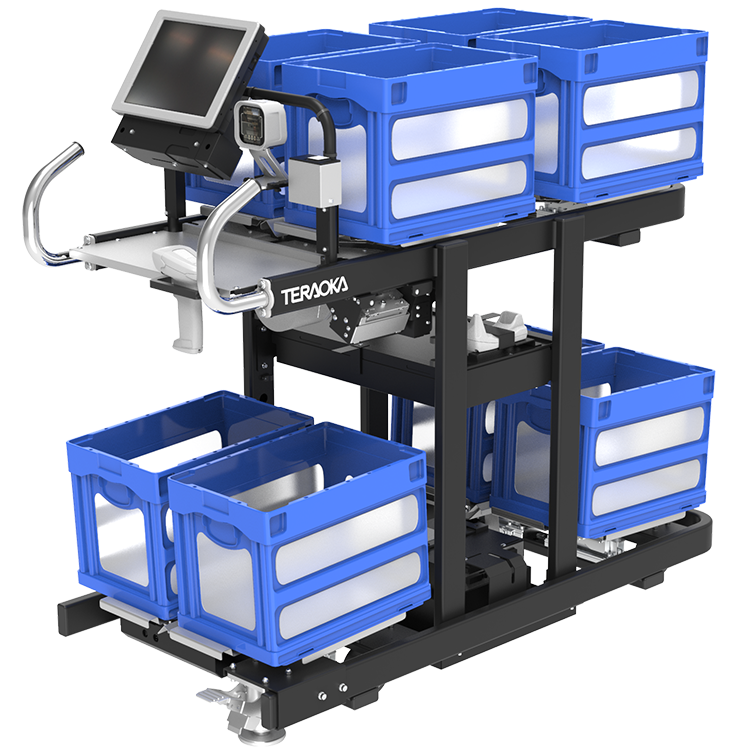

AI picking carts

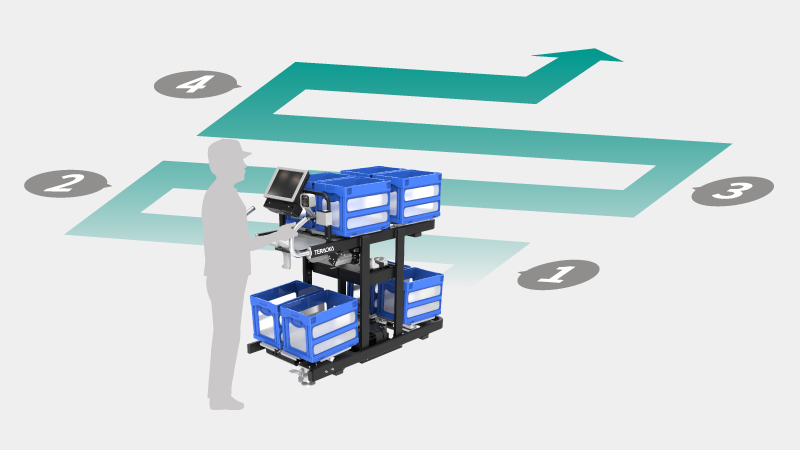

Picking carts with built-in scales enable simultaneous picking and quantity verification
Specifications
| Model Type |

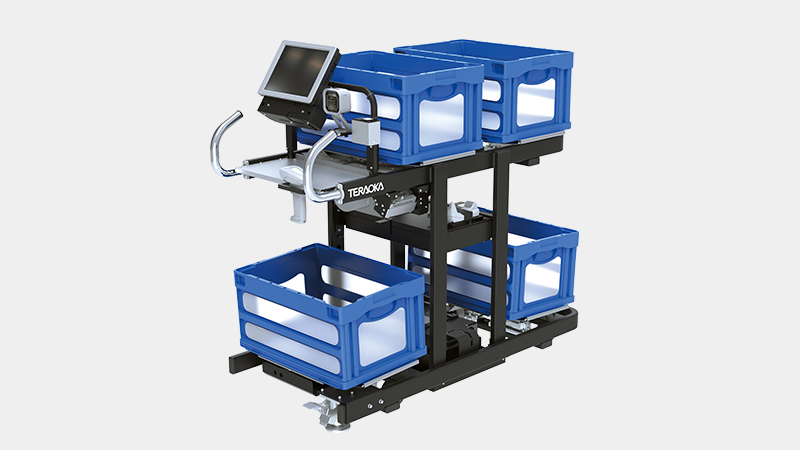

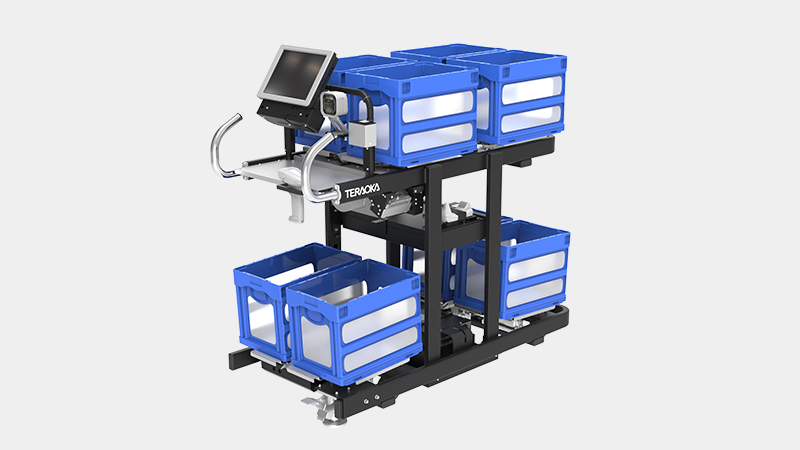

PKG-4000 Multi-cart (Vertical type) |

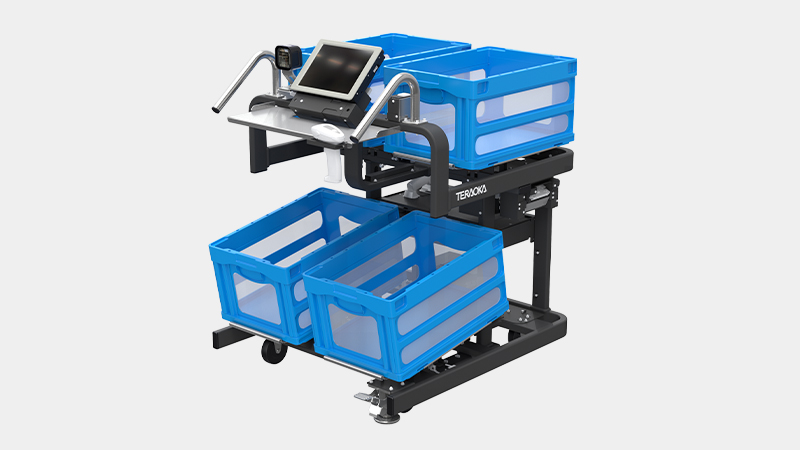

PKG-4000F Multi-cart (Front-on type) |

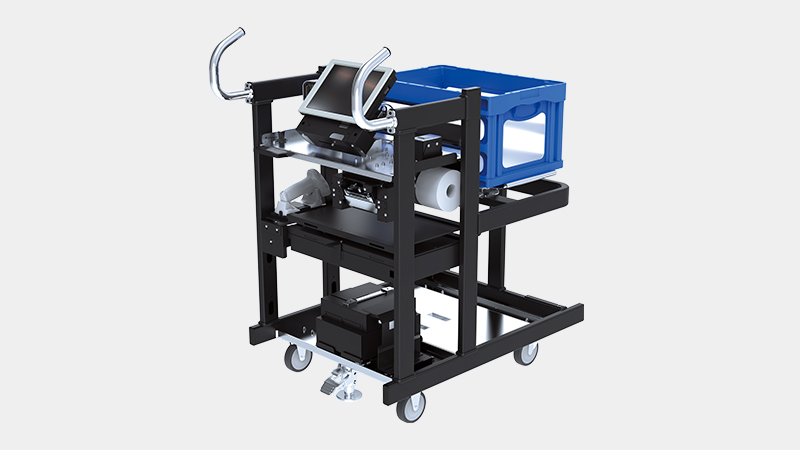

PKG-3100 Single cart |

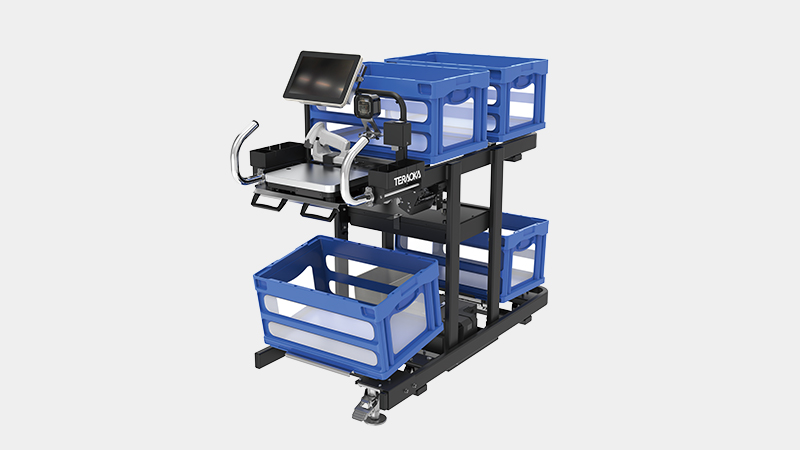

PKG-3100D Single cart (Detachable type) |
|
|---|---|---|---|---|---|

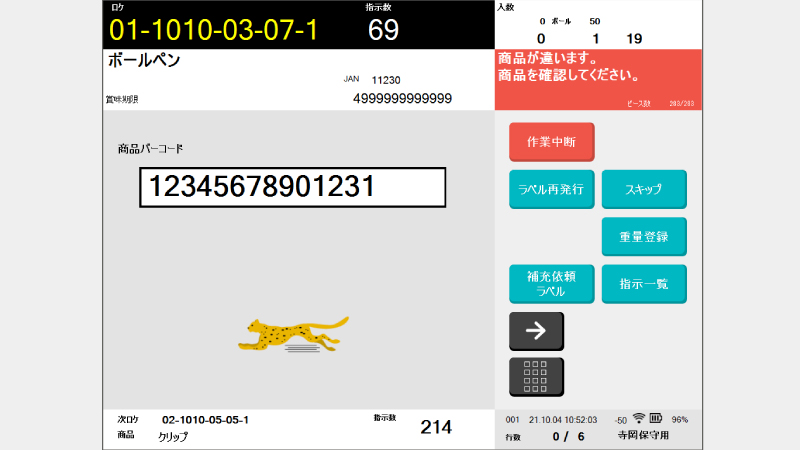

| Display | 10.4-inch TFT LCD (SVGA) touch panel | ||||
| Wireless communication | Wireless LAN | IEEE802.11b/g | |||
| Scanner | Compatible barcode types | UPC, EAN, JAN, CODE39, ITF | |||
| Operating time (handy scanner) | 45000 scans, charges in 4 hours | ||||
| Printer | Print method | Thermal printer | |||
| Print size | 60 (W) x 120 (L) mm | ||||
| Scales | Maximum load weight | 30 kg | |||
| Display resolution | 1/30,000 | ||||
| Internal resolution | 1/60,000 | ||||
| Number of scales | 4 | 4 | 1 | 1 | |
| Power supply | Continuous operating time | 14 hours or better (front-on type cart) * Varies according to manner used and environment. |
|||
| Type | Ni-MH (Nickel-Metal Hydride Battery) | ||||
| Charging time | 10.5 hours | ||||
| Charging system | DIGI Chain charging (charges up to 5 units at once) | ||||
| Cart | Service temperature | 5 to 35℃ during operation, 0 to 55℃ in storage | |||
| Service humidity | 20 to 85% RH (no condensation) | ||||
| Frame material | Aluminum | ||||
| Dimensions (mm) W x H x D |
570 x 1140 x 1350 | 830 x 1024 x 841 | 570 x 1050 x 1285 | 620 x 1130 x 625 | |
| Weight | 45 kg | 45 kg | 34 kg | 40 kg | |
